Mode Actuator Assembly (Transfer): Notes

Inspect the function of the motor actuator assembly as follows:

1. Disassemble the motor actuator from transfer rear case.

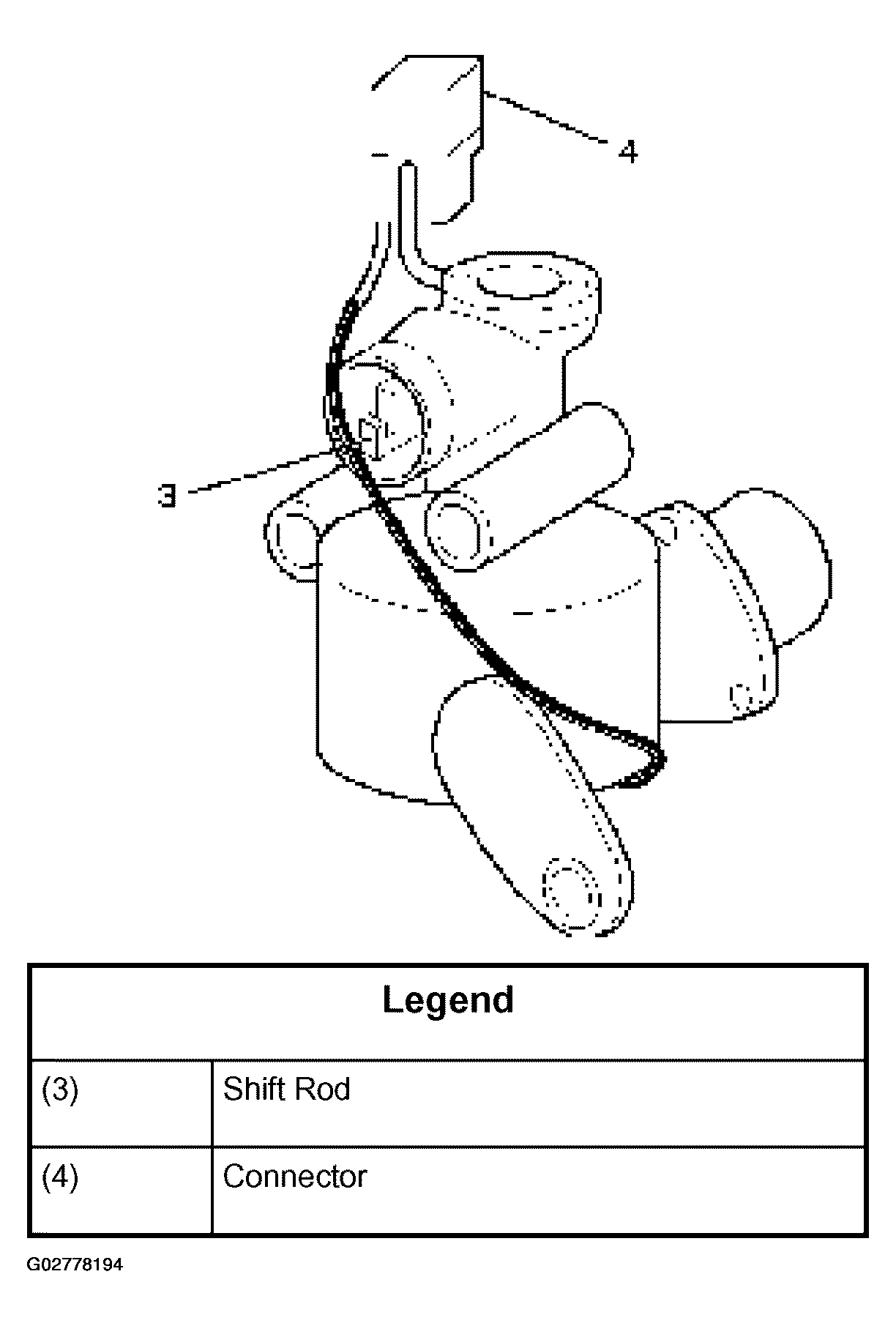

   Fig 1: Disassembling Motor Actuator From Transfer Case


2. Connect the terminals as shown in figure.

   Shift rod of the motor actuator moves and stops at 4WD position.

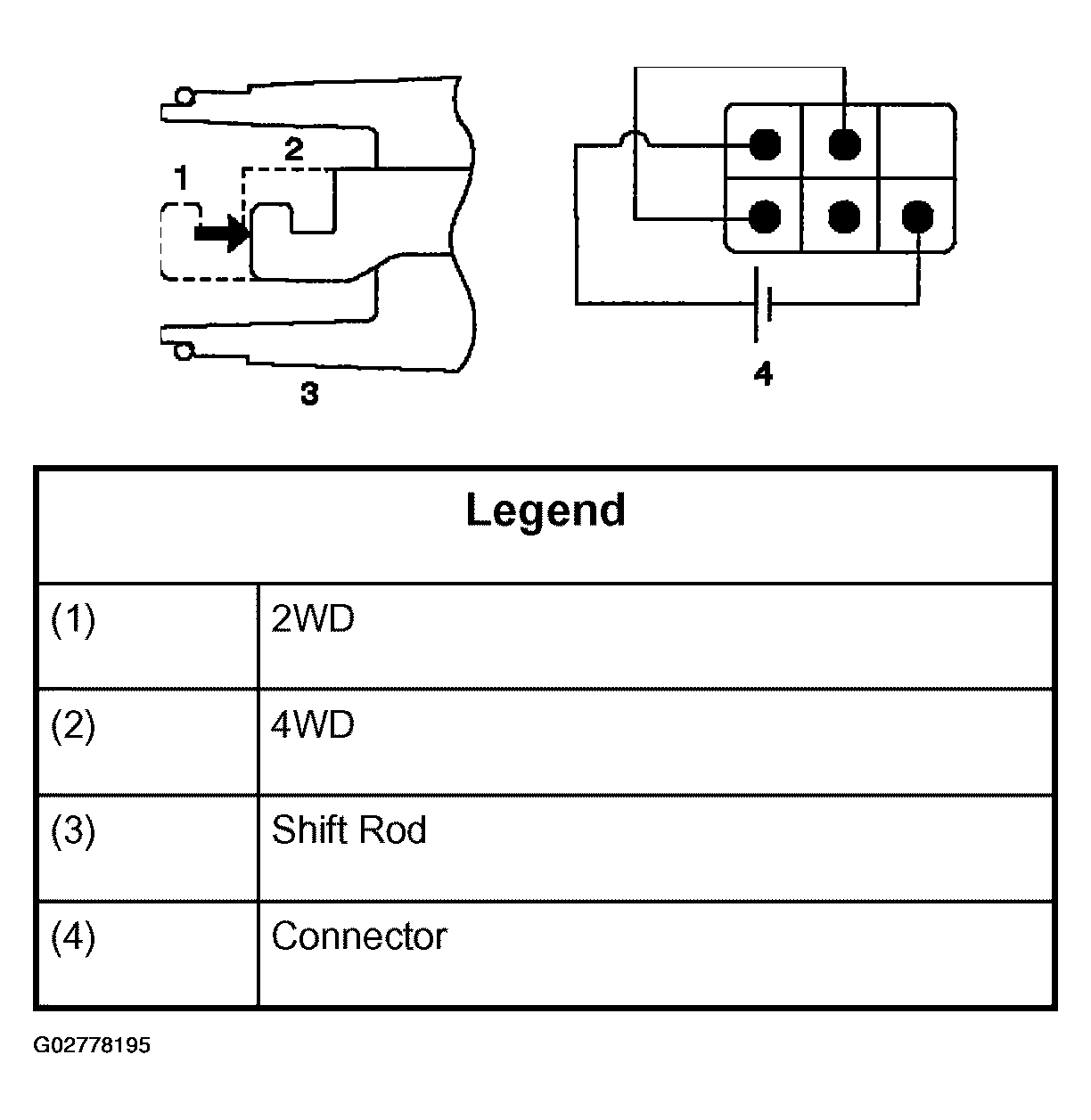

   Fig 2: Connecting Terminals At 4WD Position


3. Connect the terminals as shown in figure.

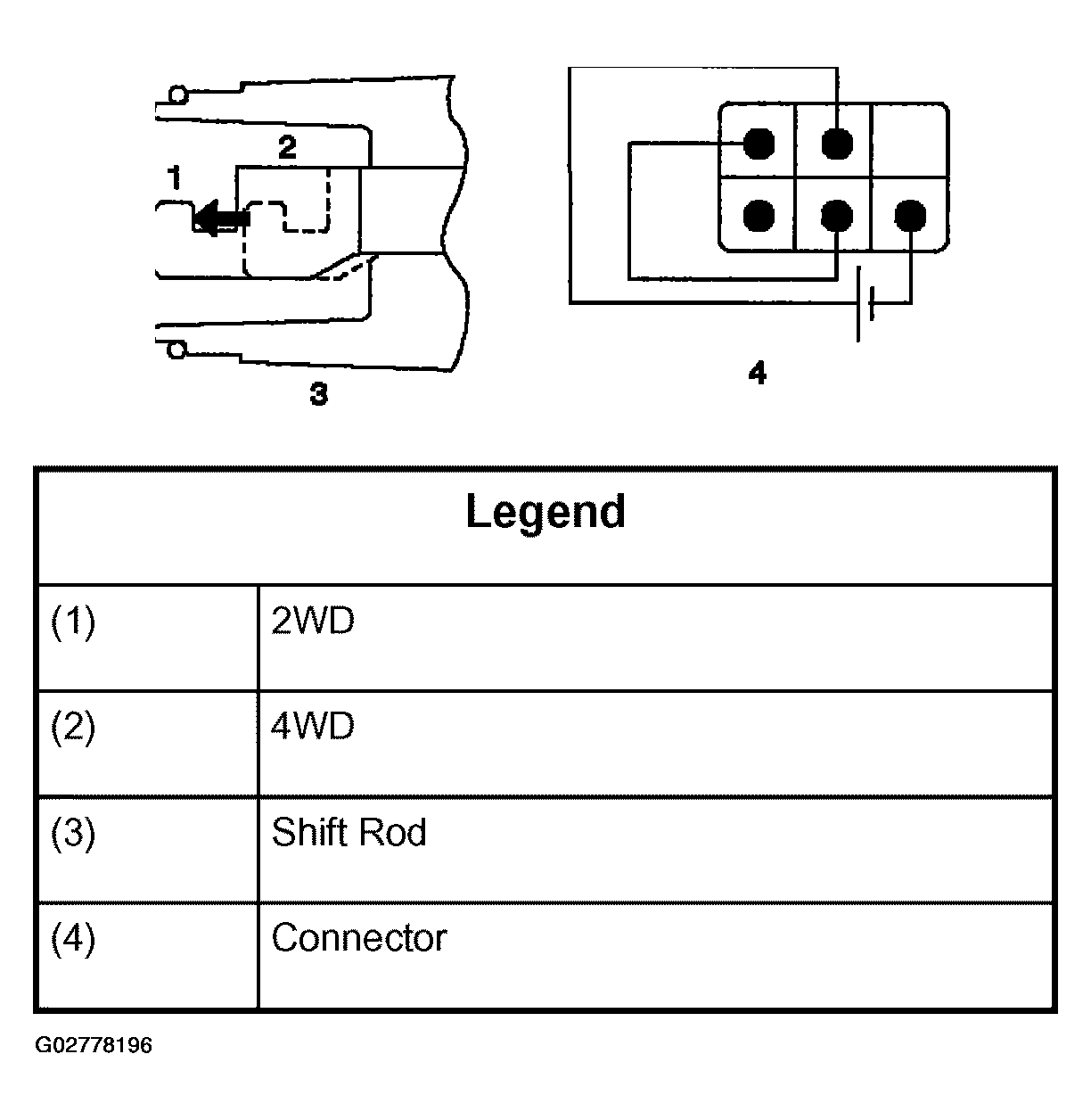

   Shift rod of the motor actuator moves and stops at 2WD position.

   Fig 3: Connecting Terminals At 2WD Position


4. If Step  2 and  3 fail, replace with a new motor actuator.
