Transfer Position Switch

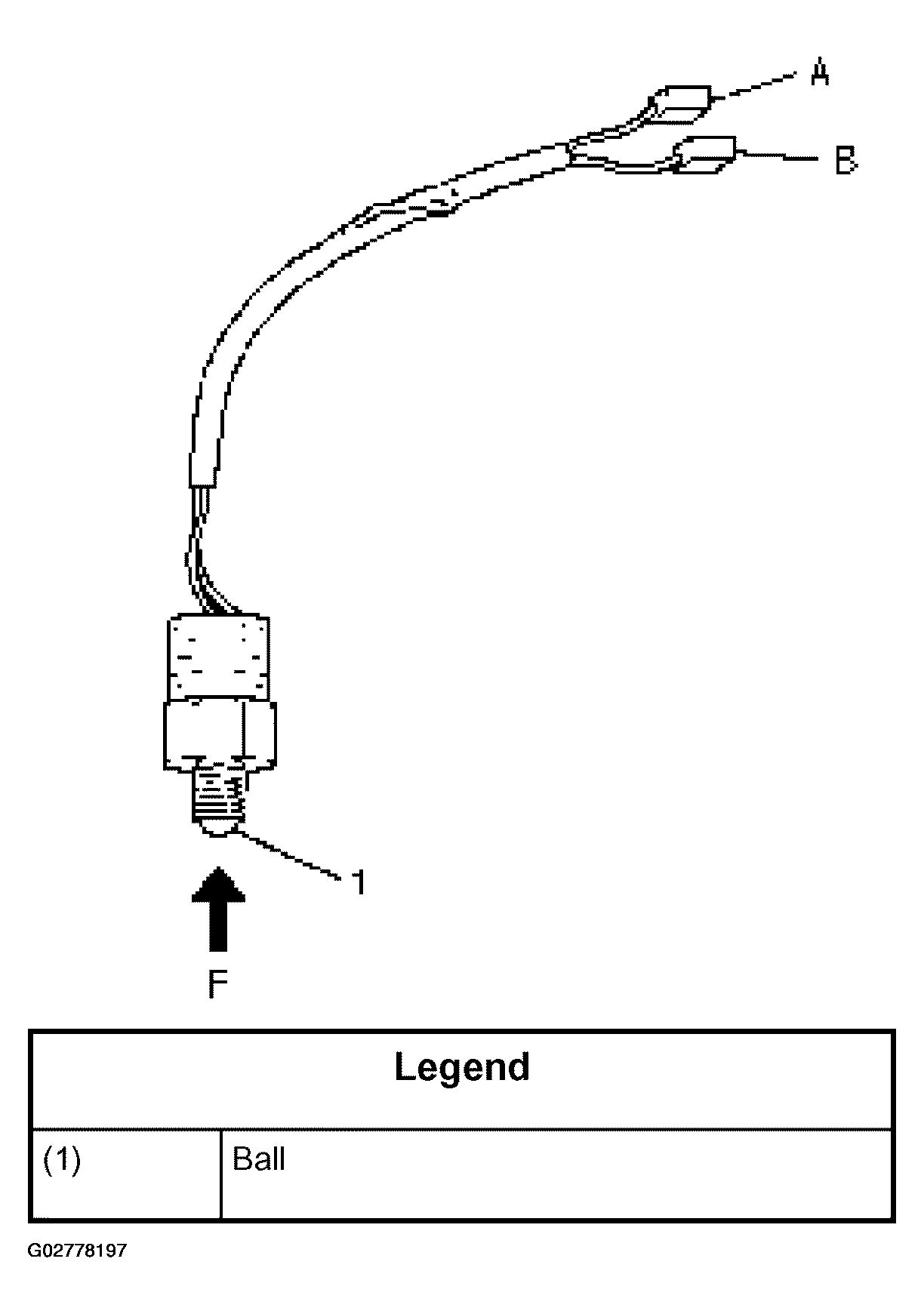

Fig 1: Identifying Transfer Position Switch
G02778197
  1. With ball being free.
    1. A-B:  There is continuity.
  2. With ball forced into the switch.
    1. A-B:  No continuity.
  3. If Step  1 and  2 fail, replace with a new switch.
