Functions of Indicator Lamp: Notes

Indication of vehicle condition:  Indicator lamp is controlled by transfer ECU of shift on the fly and shows vehicle conditions as below.

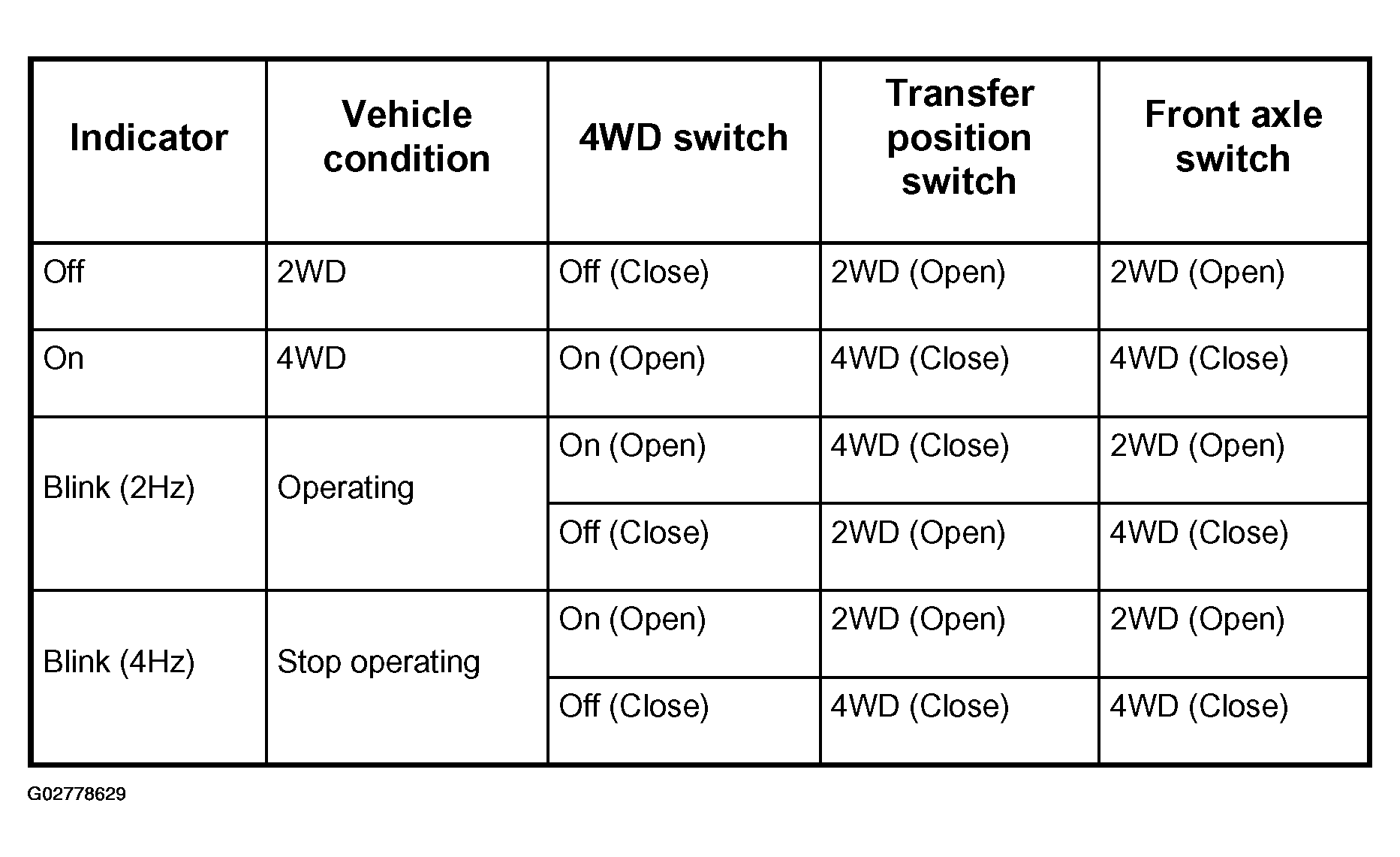

Fig 1: Identifying Functions Of Indicator Lamp

Courtesy of ISUZU MOTOR CO.

Bulb check:  The bulb of indicator lamp is checked for 2 seconds when ignition key is turned on.
