Time Chart of Shifting Under Normal Condition

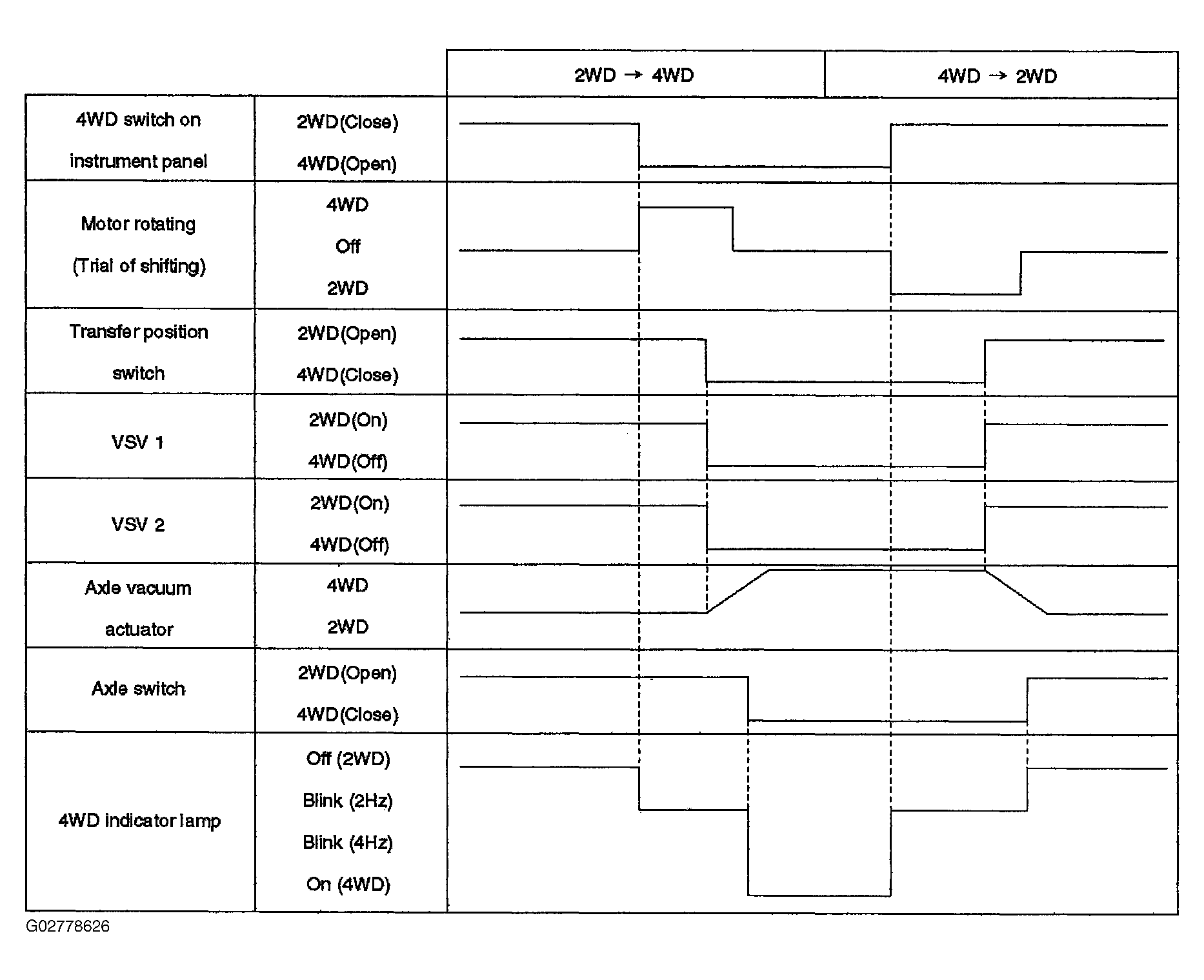

Fig 1: Shifting Under Normal Condition Time Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
