Range Switch Logic Table

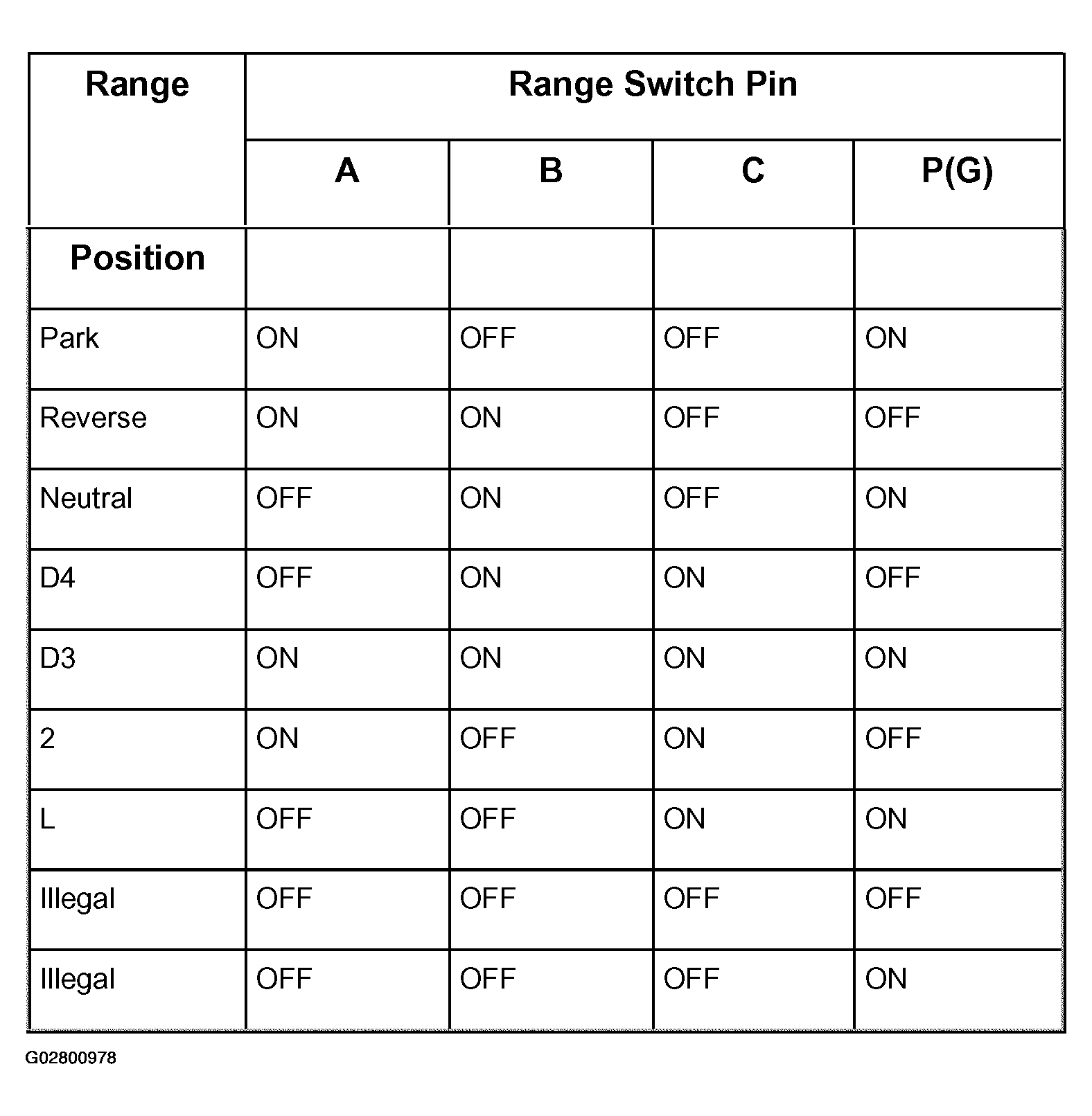

Fig 1: Range Switch Logic Table
G02800978Courtesy of ISUZU MOTOR CO.

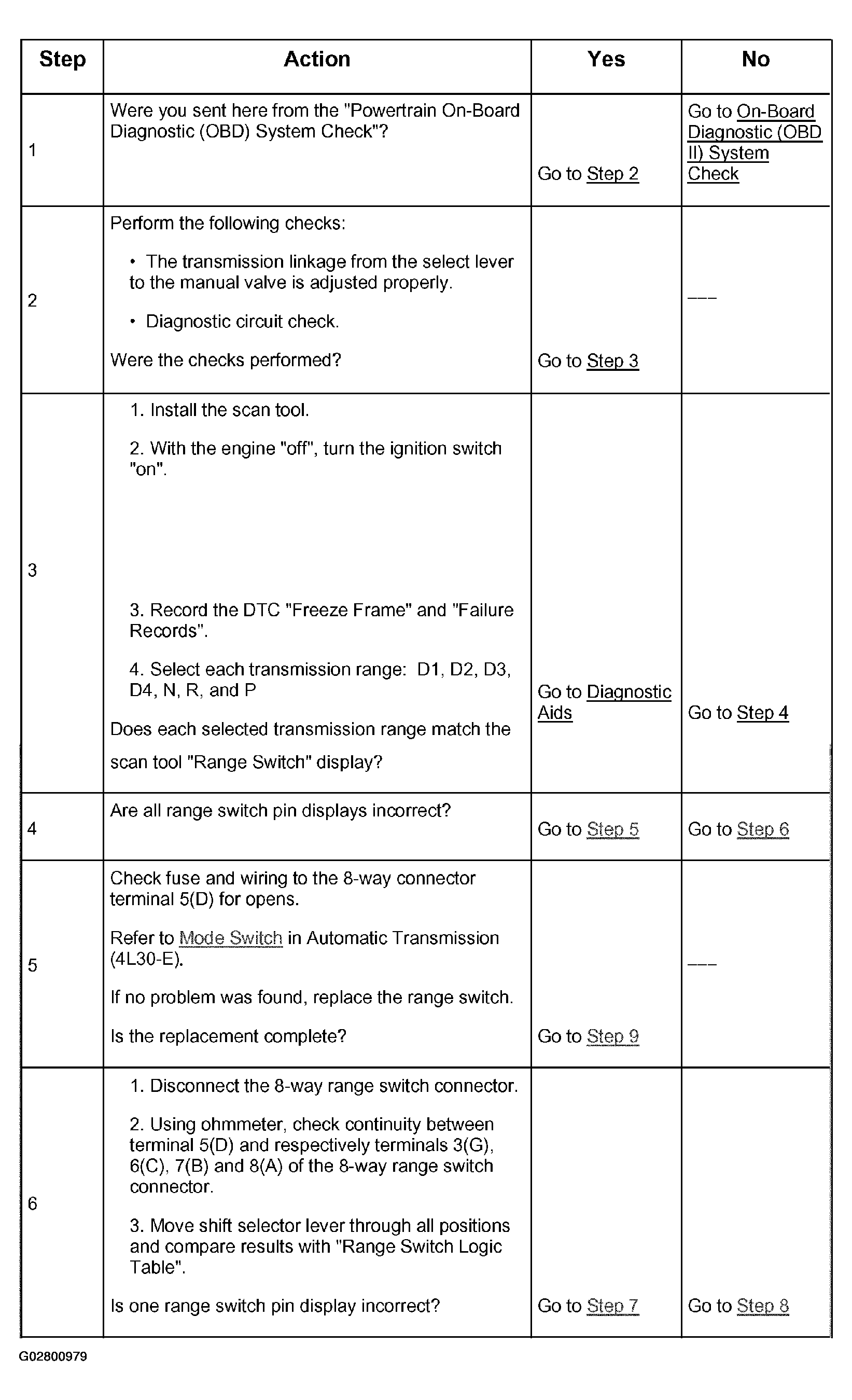

Fig 2: DTC P0706 Transmission Range Switch (Mode Switch) Performance Diagnostic Procedure (Steps 1-6)
G02800979Courtesy of ISUZU MOTOR CO.

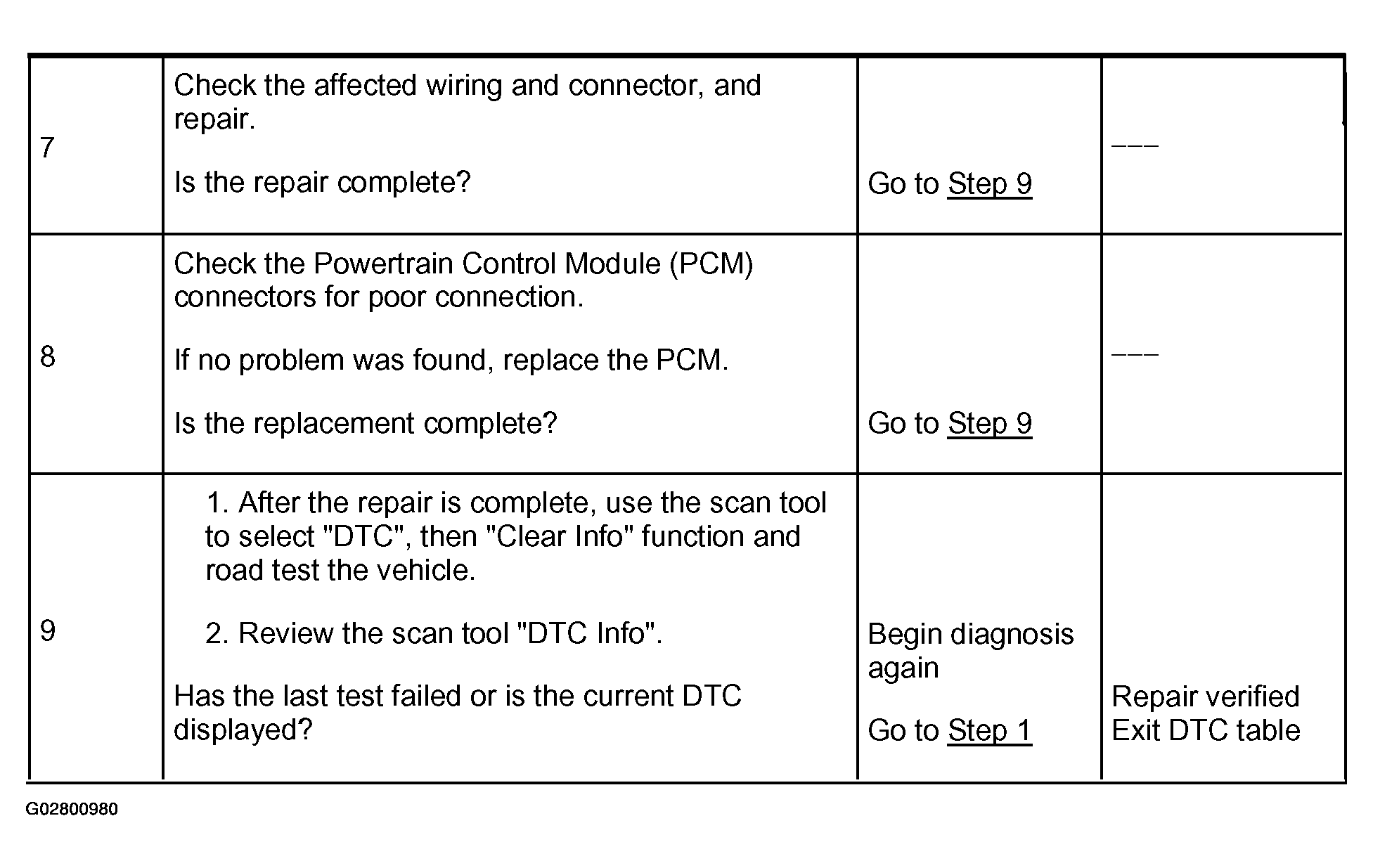

Fig 3: DTC P0706 Transmission Range Switch (Mode Switch) Performance Diagnostic Procedure (Steps 7-9)
G02800980Courtesy of ISUZU MOTOR CO.
