Bench Testing: Stator

  1. Measure the resistance between respective phases. See Fig 1 .
  2. Measure insulation resistance between stator coil and core with a mega-ohmmeter. If less than standard, replace the coil.

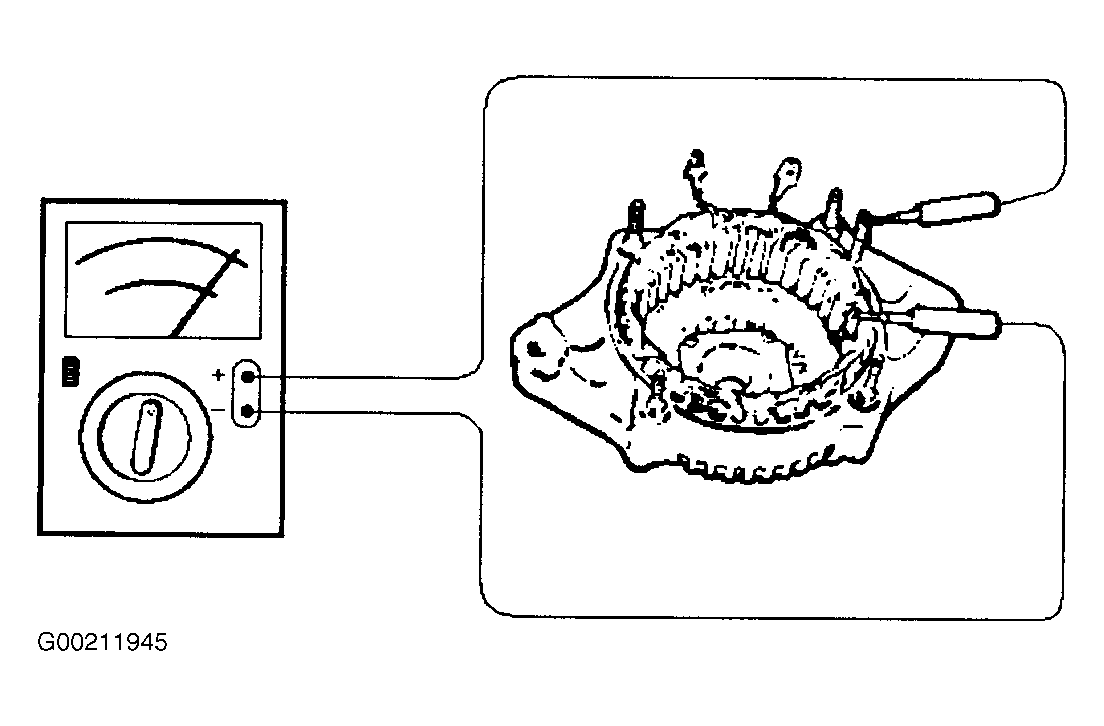

Fig 1: Checking Continuity Between Coil & Core
G00211945Courtesy of ISUZU MOTOR CO.
