Steering Wheel: Installation

Install steering wheel by aligning the setting marks made when removing.
CAUTION: Never apply force to the steering wheel in direction of the shaft by using a hammer or other impact tools in an attempt to remove the steering wheel. The steering shaft is designed as an energy absorbing unit.
Tighten the steering wheel fixing nut to the specified torque.
Torque: 34 N.m (25 lb ft)
Connect horn lead.
Support the module and carefully connect the module connector.
CAUTION:
- Never use the air bag assembly from another vehicle. Use only the air bag assembly for "UX".
NOTE: Pass the lead wire through the tabs on the plastic cover (wire protector) of inflator to prevent lead wire from being pinches.
- Secure the module with one bolt to relieve weight on the wire connector.
- Tighten bolts to specified sequence as illustrated.
Torque: 8 N.m (69 lb in)

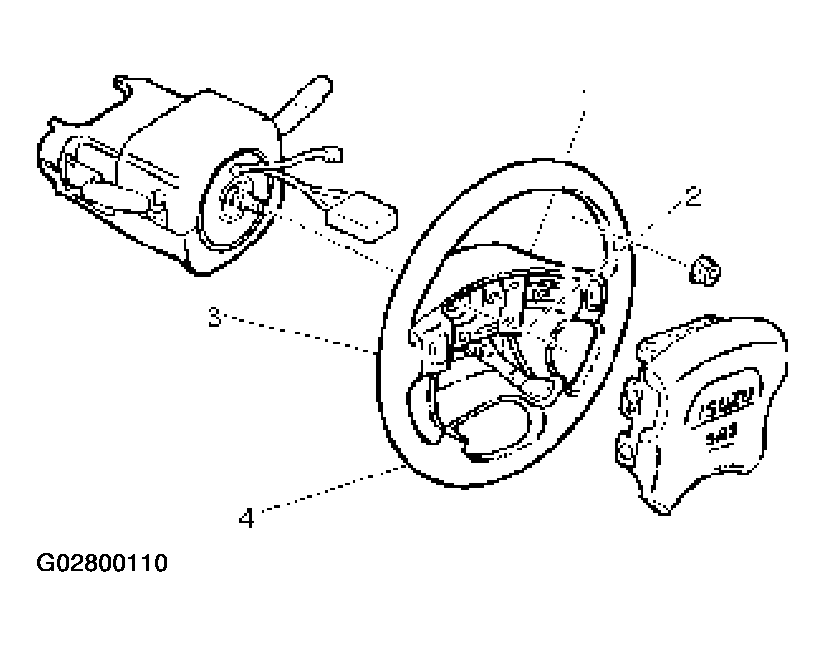

Fig 1: Installing Steering Wheel And Associated Parts
Courtesy of ISUZU MOTOR CO.
Connect the yellow 2-way SRS connector located under the steering column.
Connect the battery "-" (negative) terminal cable.
Turn the ignition switch to "ON" while watching warning light. Light should flash 7 times and then go off. If lamp does not operate correctly, refer to AIR BAG RESTRAINT SYSTEMS .
