Oxygen Sensor: Locations

HO2S (SENSOR):

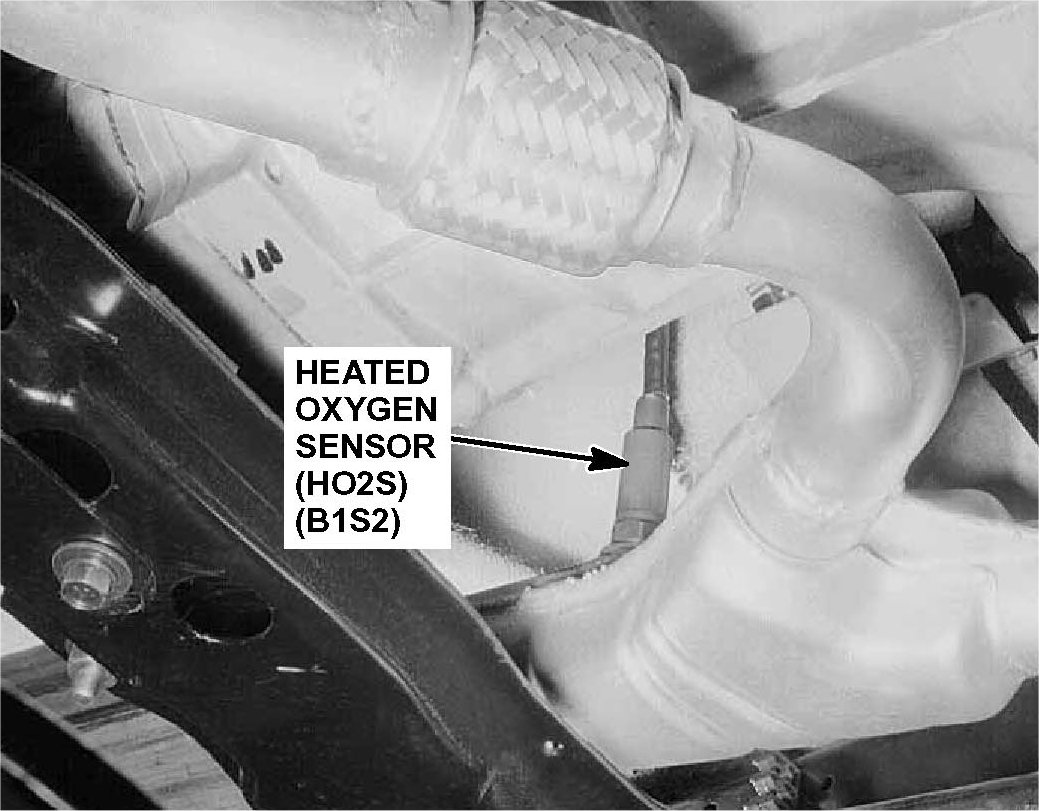

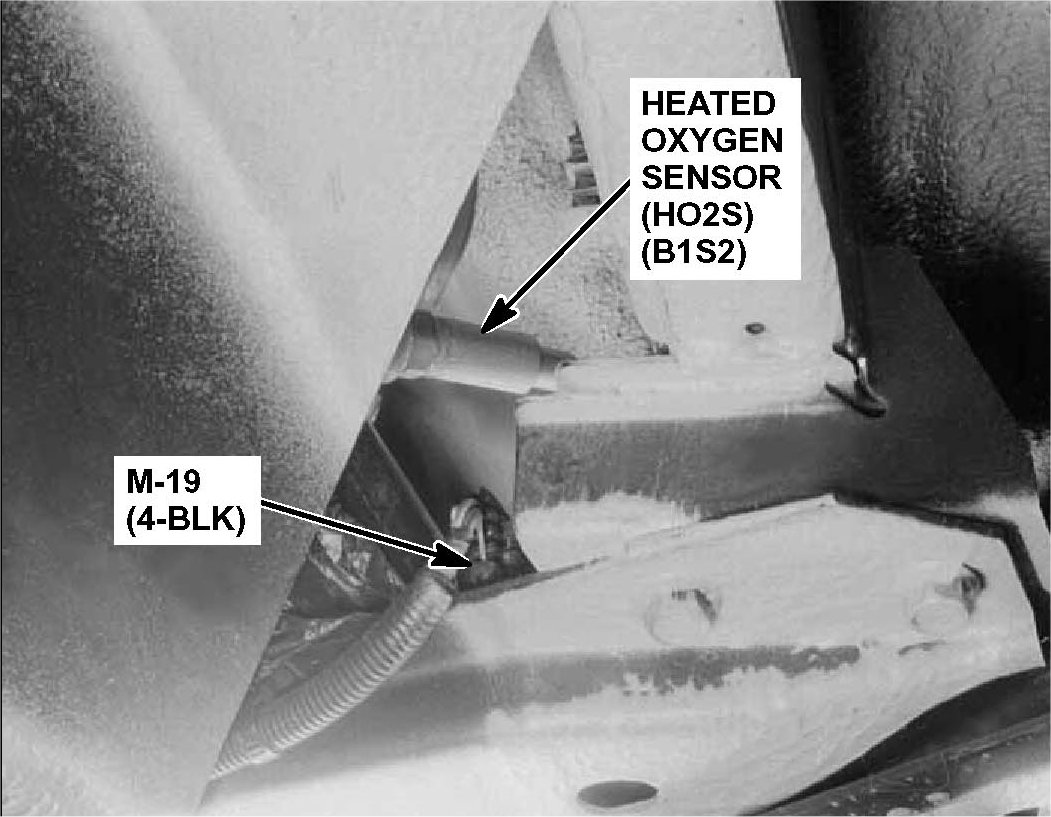

6. Left Side Of Manual Transmission:

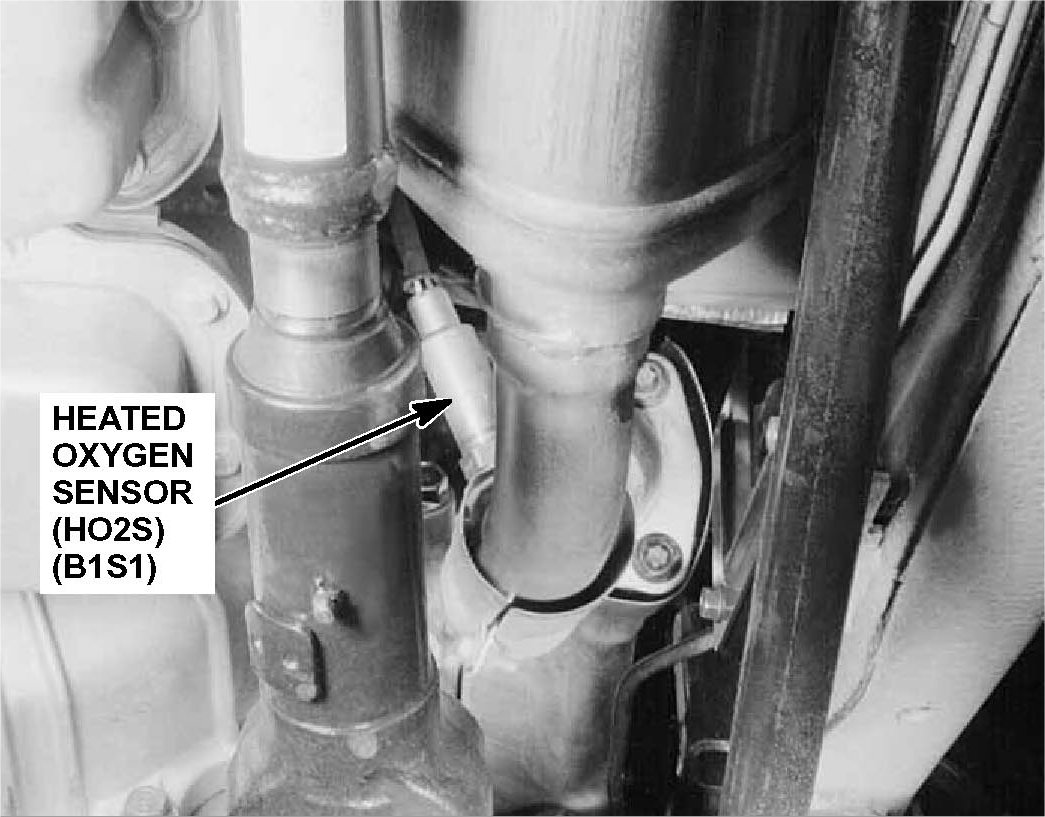

21. Right Exhaust Down Pipe:

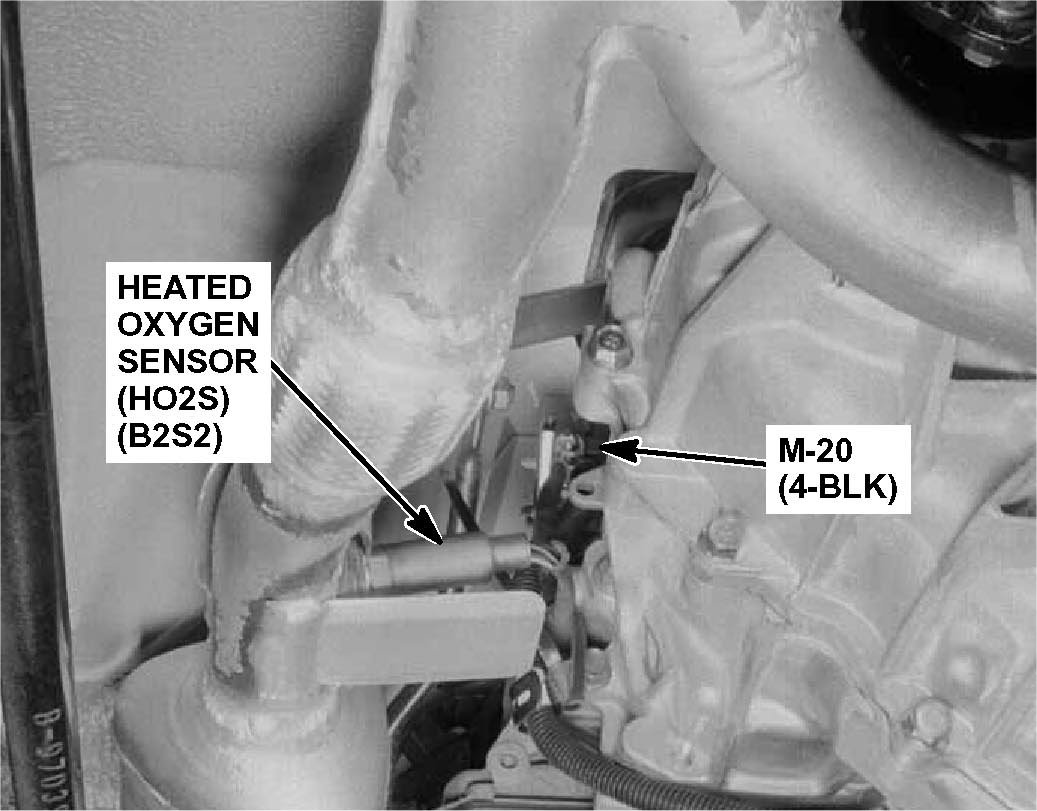

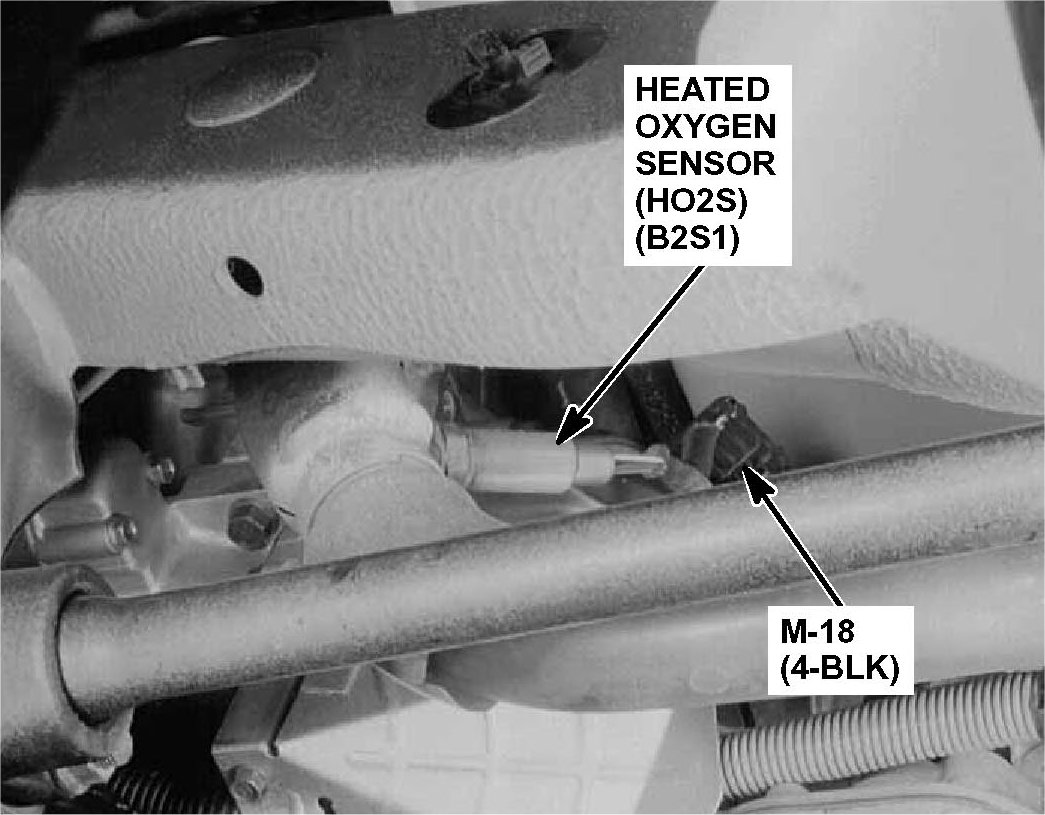

25. Left Exhaust Down Pipe:

29. Rear Of Right Catalytic Converter (A/T):

30. Rear Of left Catalytic Converter (A/T Shown M/T Similar):

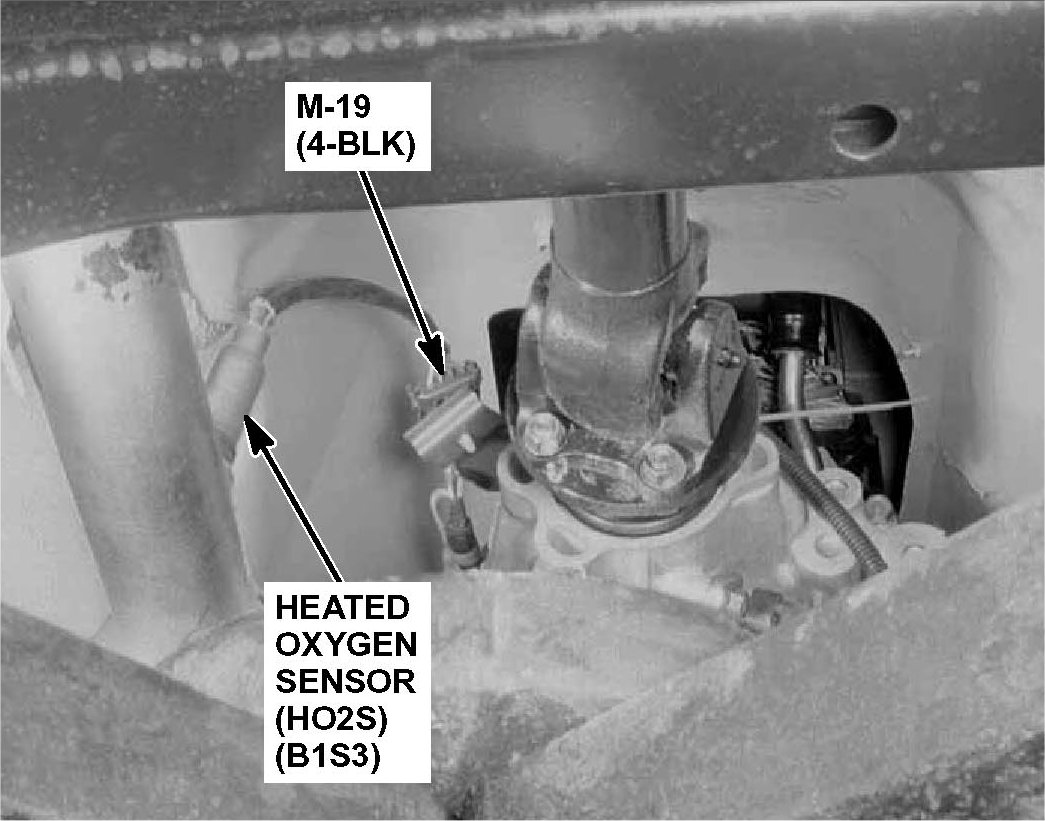

121. Left Of Manual Transmission:
