Center Track Rod Assembly and Associated Parts

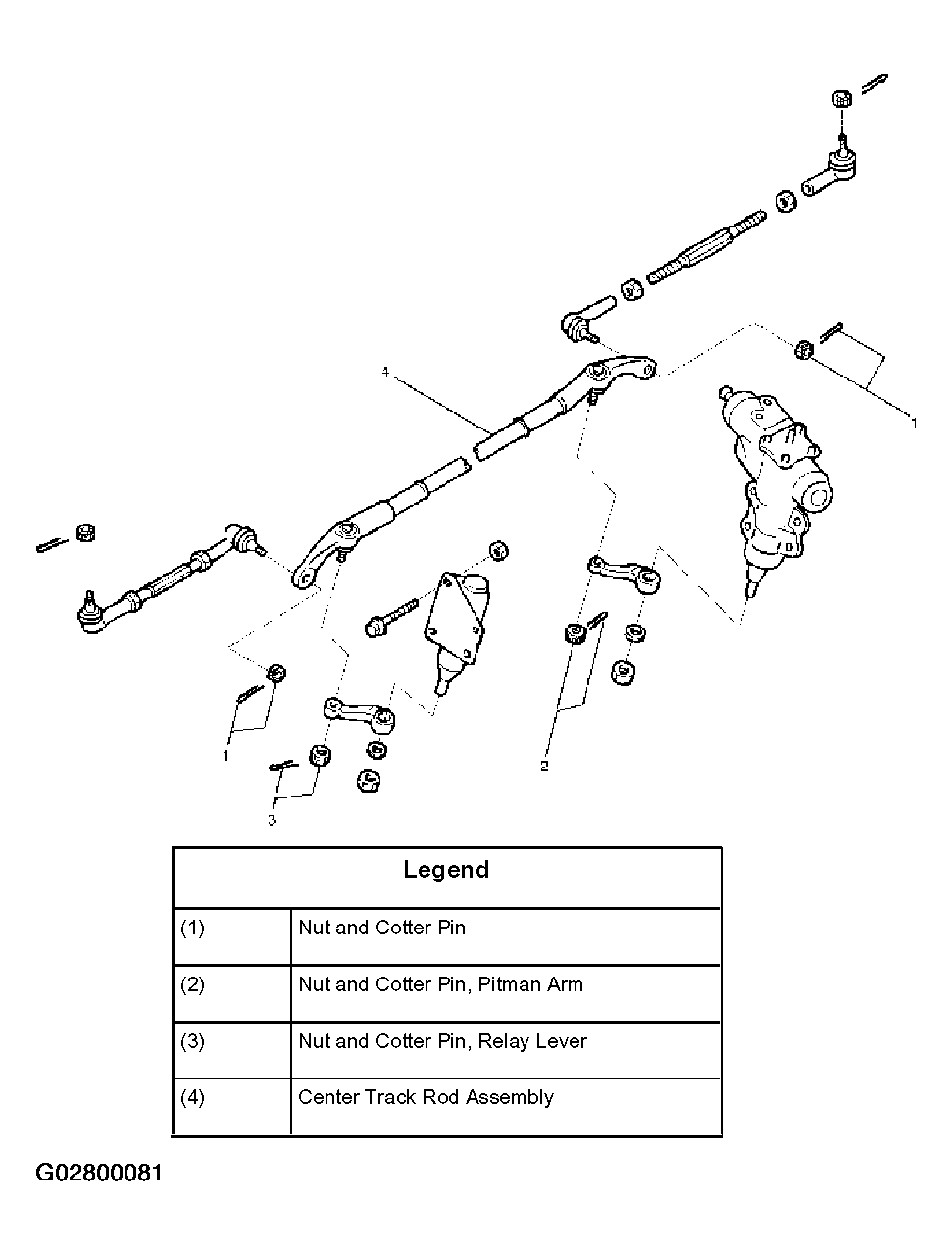

Fig 1: Identifying Center Track Rod Assembly And Associated Parts
G02800081Courtesy of ISUZU MOTOR CO.
