Center Track Rod Assembly: Removal

Raise the vehicle and support the frame with suitable safety stands.
Remove nut and cotter pin, then use remover J-36831 to disconnect outer track rod assembly from the center track rod.
CAUTION: Be careful not to damage the ball joint boot.

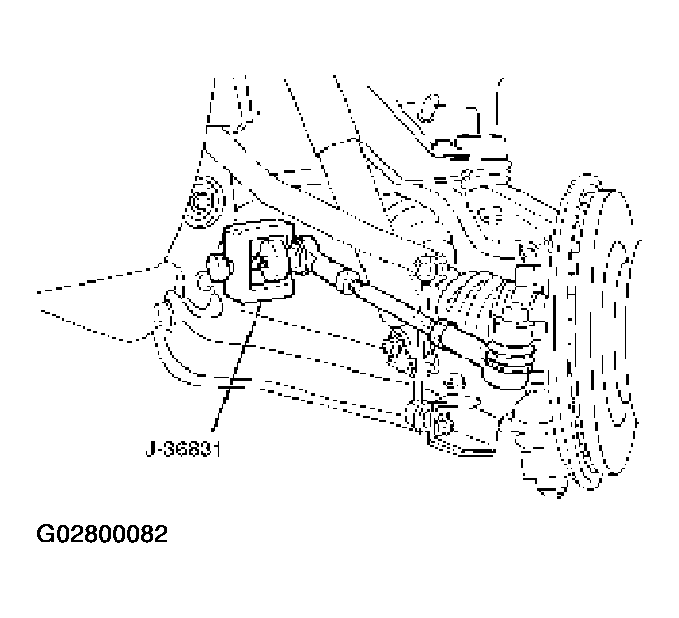

Fig 1: Disconnecting Outer Track Rod Assembly
Courtesy of ISUZU MOTOR CO.
Remove nut and cotter pin then use remover J-36831 to remove pitman arm from the center track rod.
CAUTION: Be careful not to damage the ball joint boot.

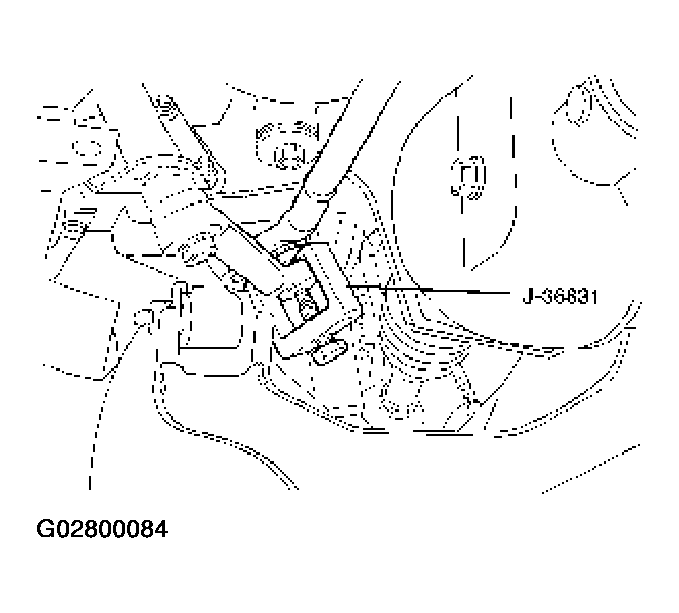

Fig 2: Removing Pitman Arm
Courtesy of ISUZU MOTOR CO.
Remove nut and cotter pin then use remover J-36831 to remove relay lever from the center track rod.
CAUTION: Be careful not to damage the ball joint boot.

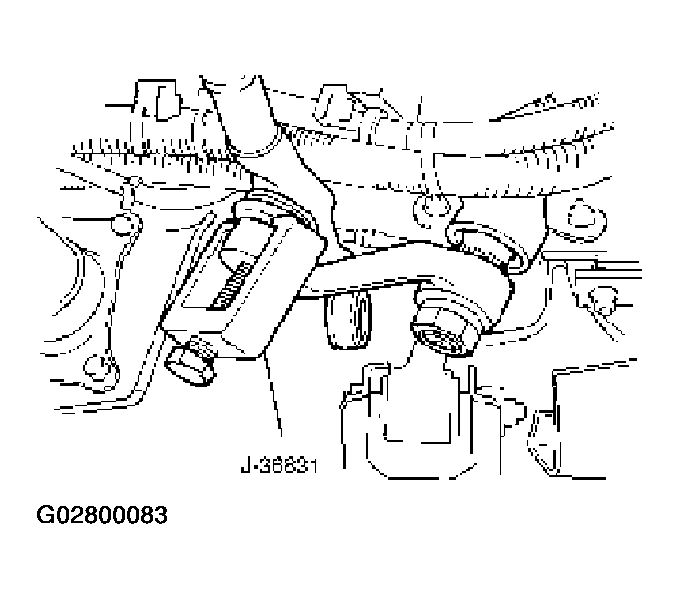

Fig 3: Removing Relay Lever
Courtesy of ISUZU MOTOR CO.
Remove center track rod assembly.
