Supplemental Restraint System Steering Wheel & Column: Installation

To install the connector, hold the socket insulator (1) and insert it. The cover insulator slides and connector will be locked.

Do not hold the cover insulator (2).

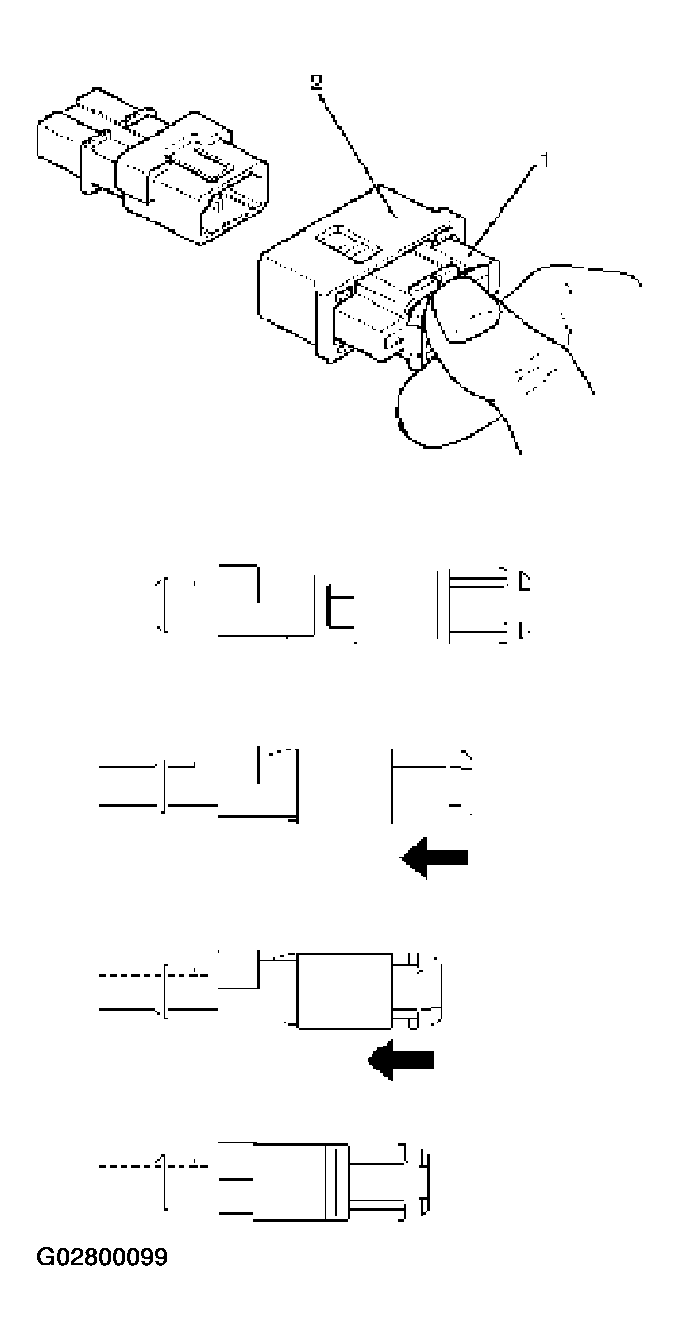

Fig 1: Installing Connector

Courtesy of ISUZU MOTOR CO.
