Steering Column Disassembled View
Steering Column
Disassembled View

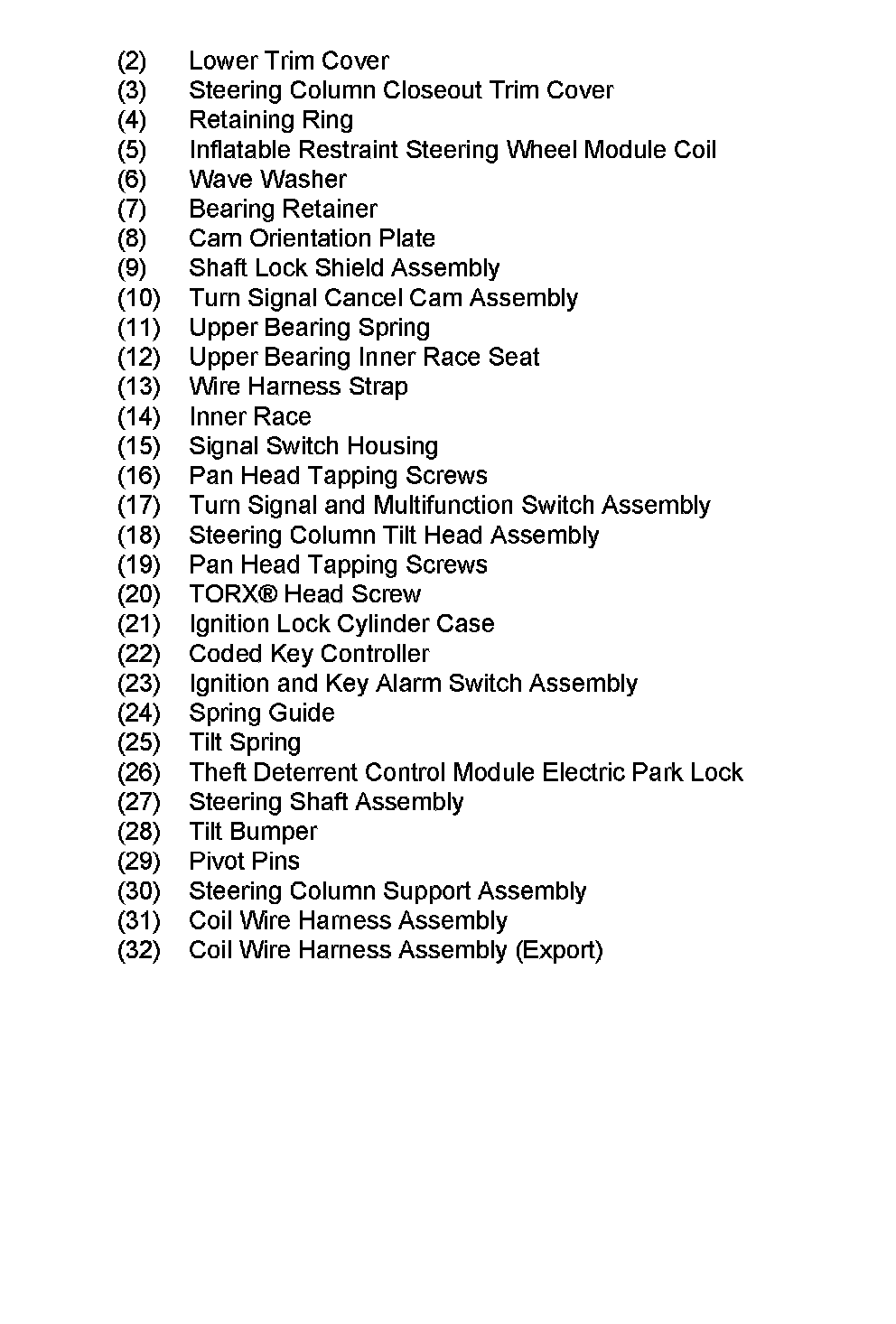

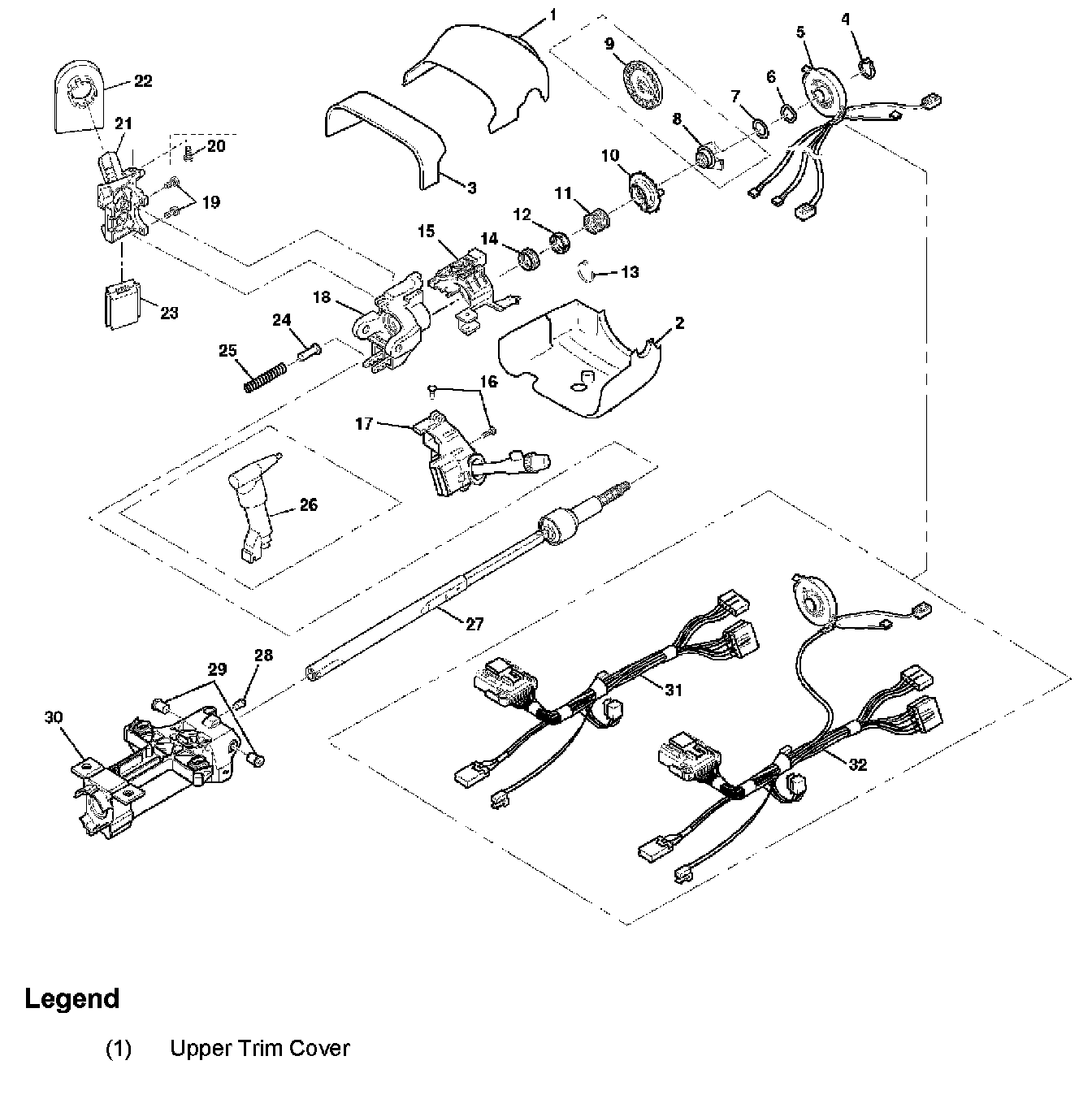

Tilt Steering Column (1 Of 2):
Tilt Steering Column (2 Of 2):
