Connector Views

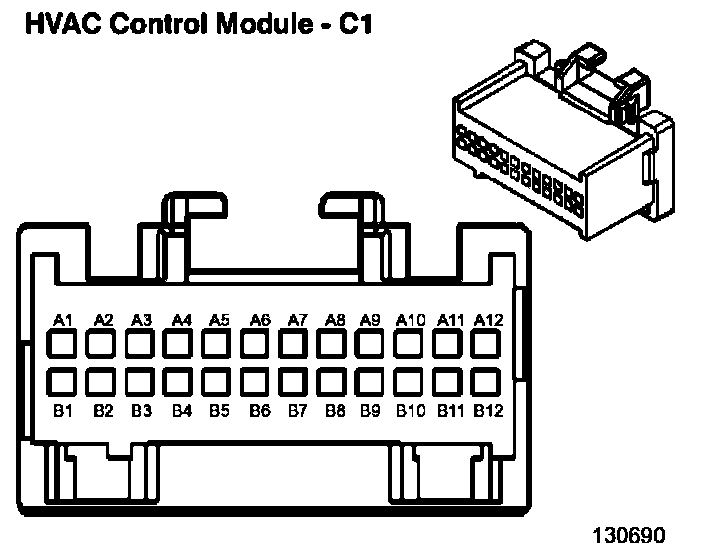

HVAC Control Module - C1:

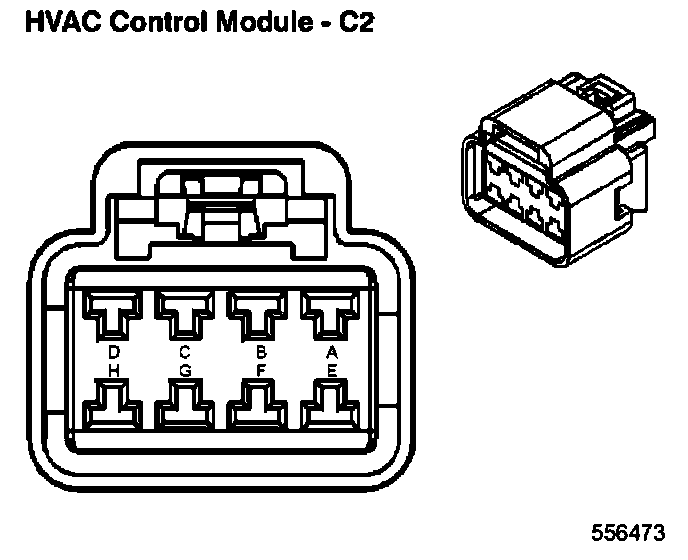

HVAC Control Module - C2:

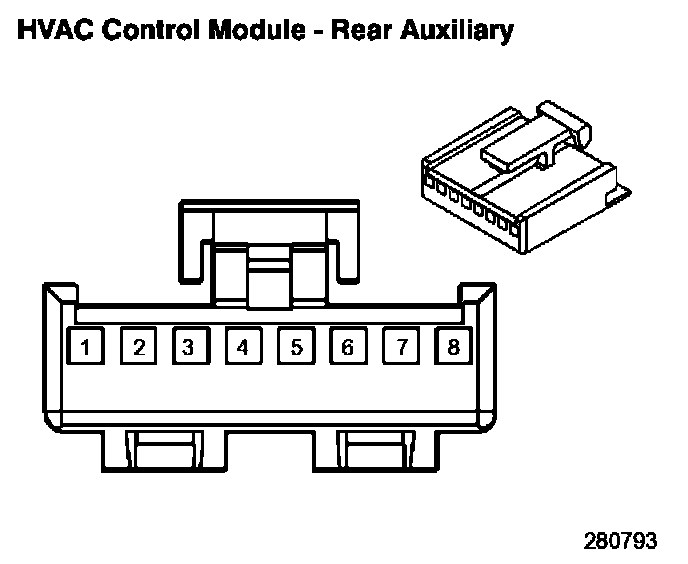

HVAC Control Module - Rear Auxiliary:

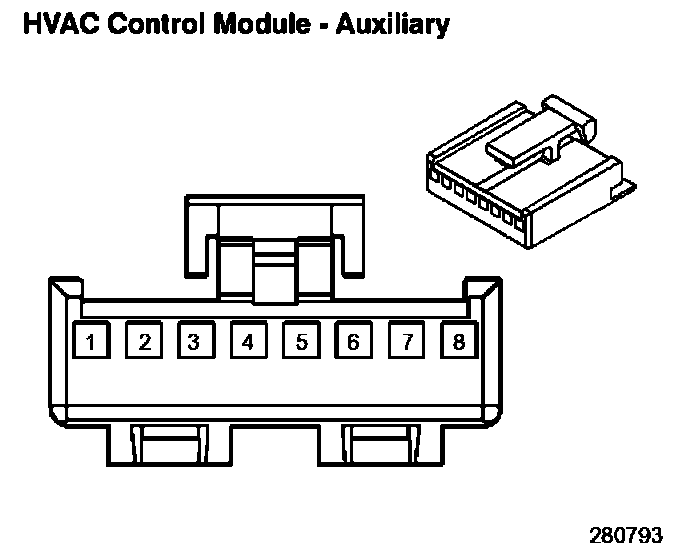

HVAC Control Module - Auxiliary:
