Fastener Tightening Specifications

Fastener Tightening Specifications

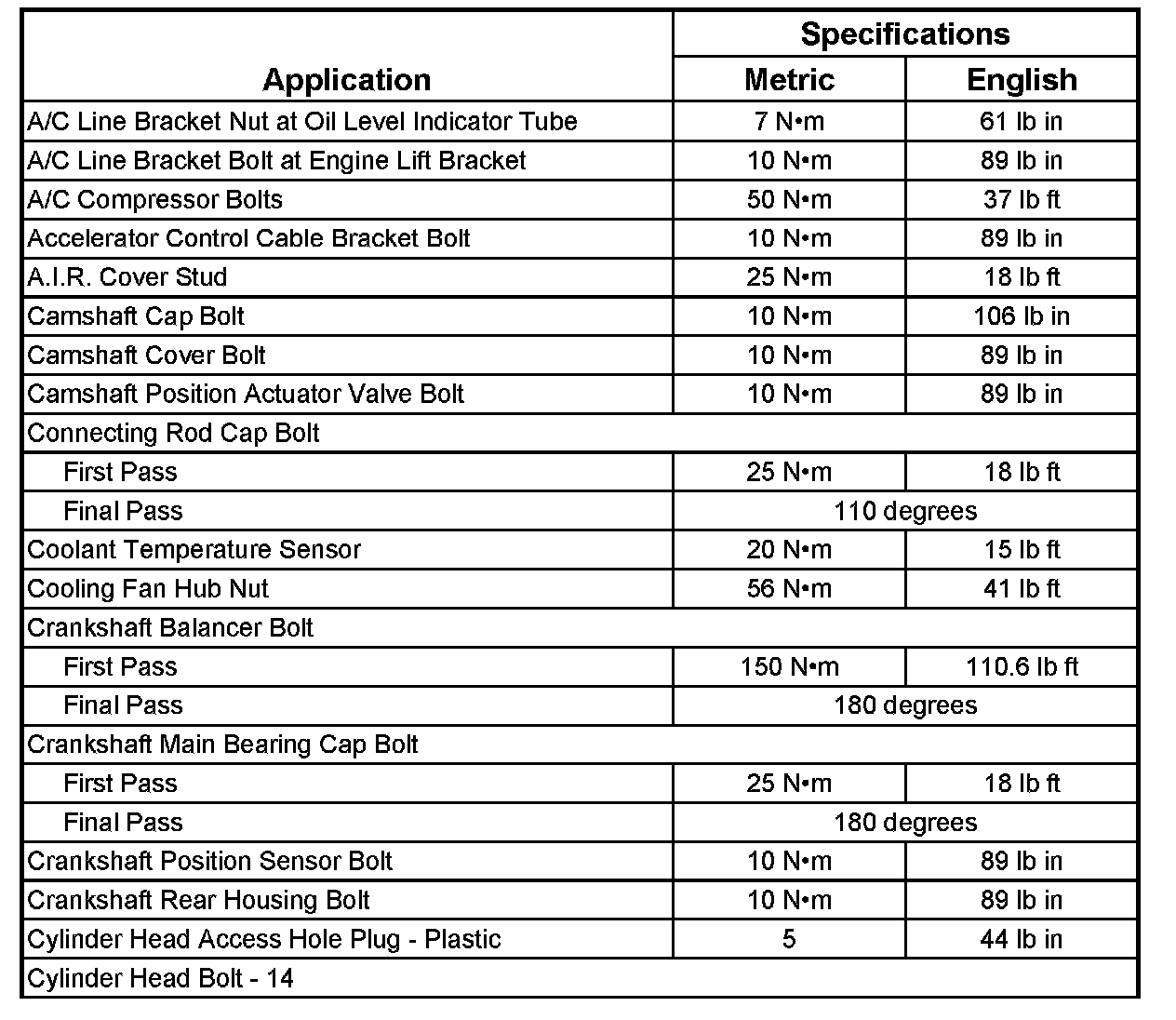

Fastener Tightening Specifications (1 Of 4):

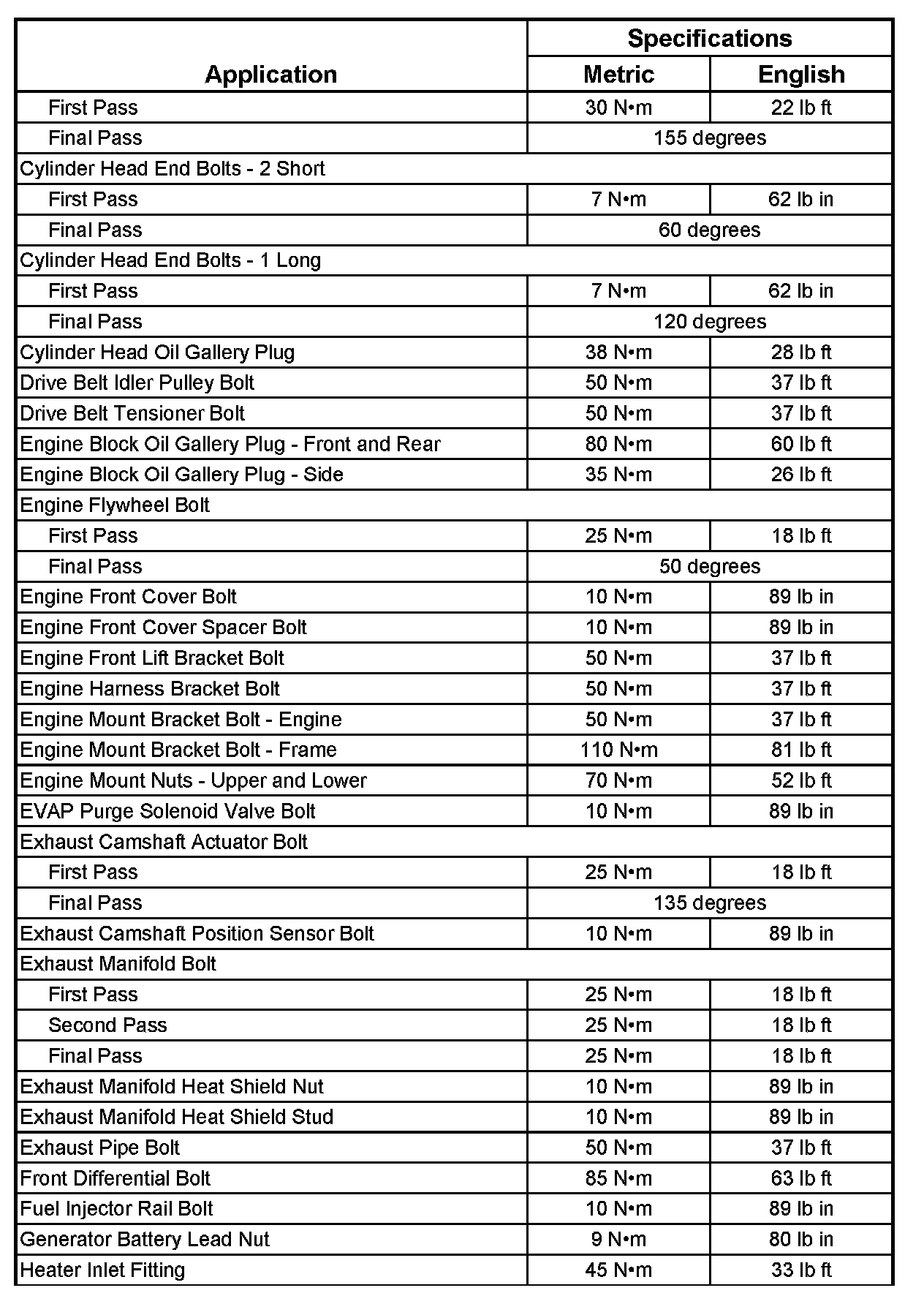

Fastener Tightening Specifications (2 Of 4):

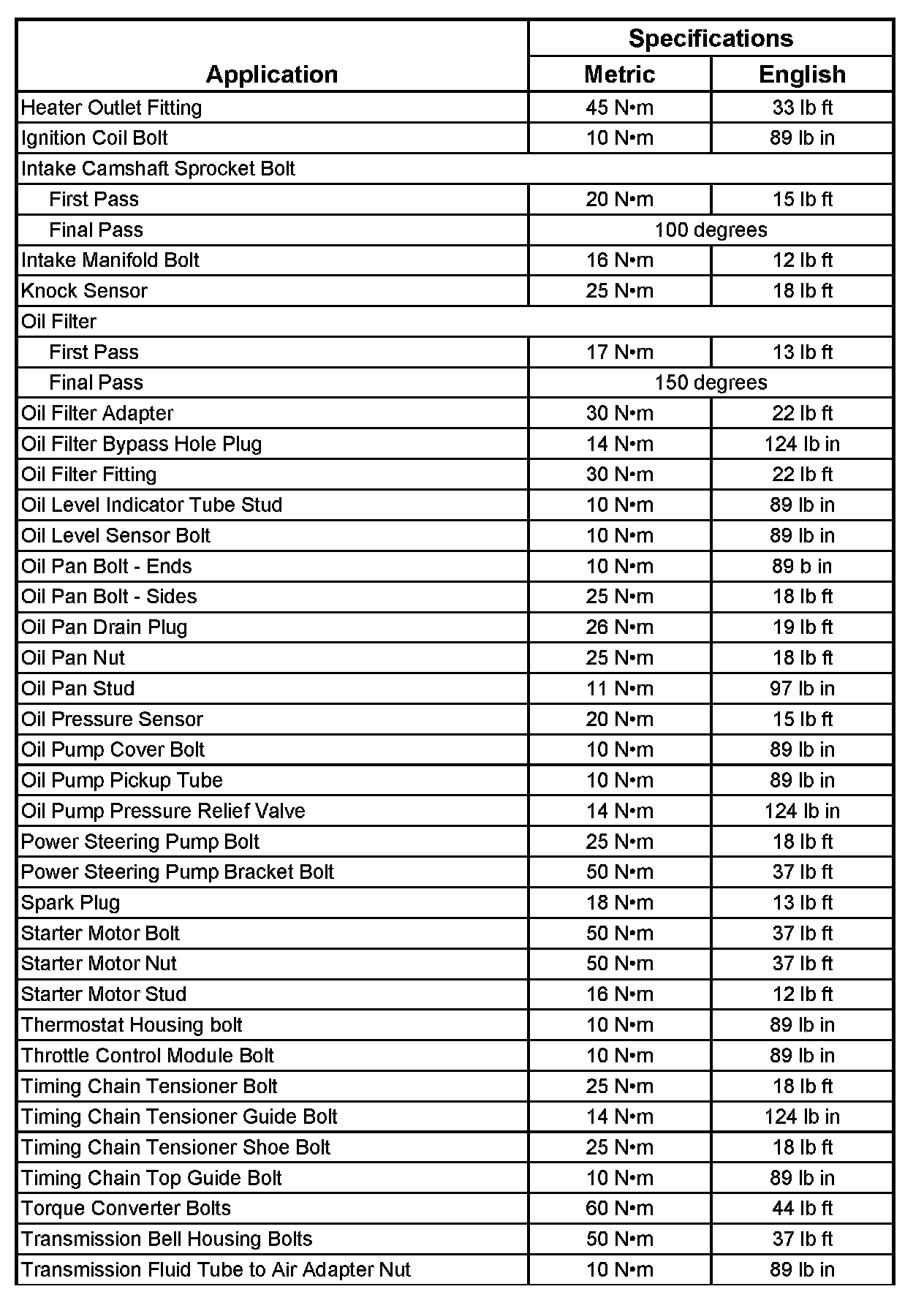

Fastener Tightening Specifications (3 Of 4):

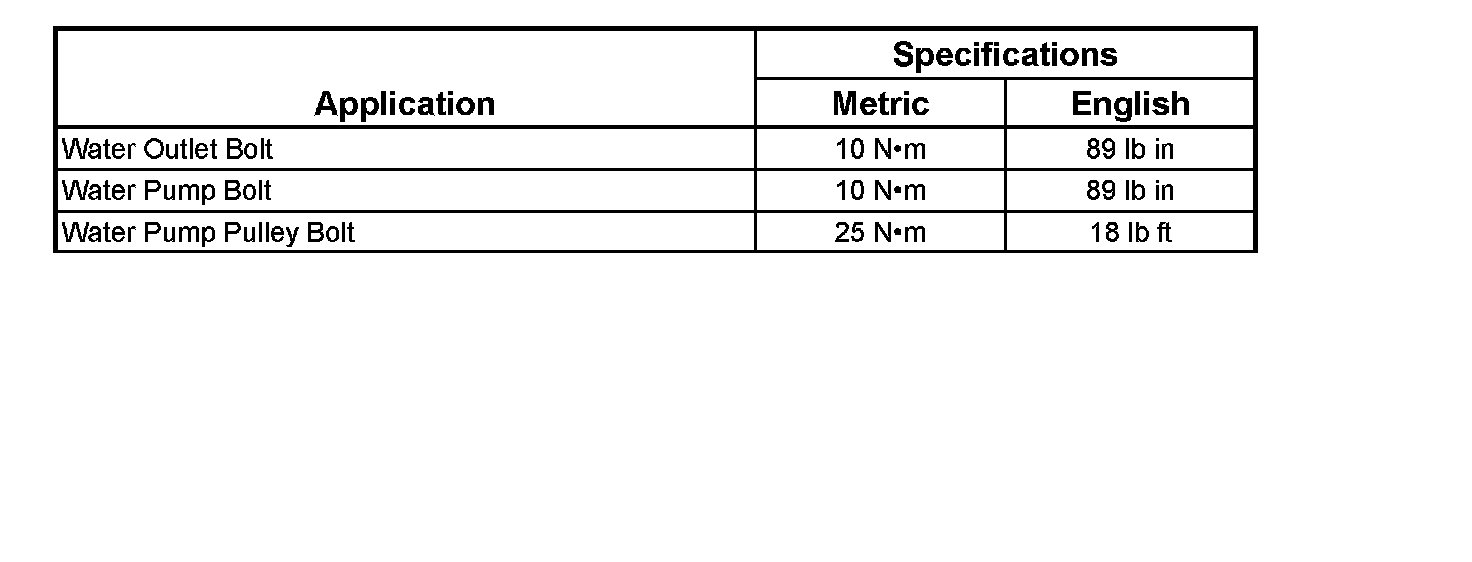

Fastener Tightening Specifications (4 Of 4):
