PCM - Connector C3

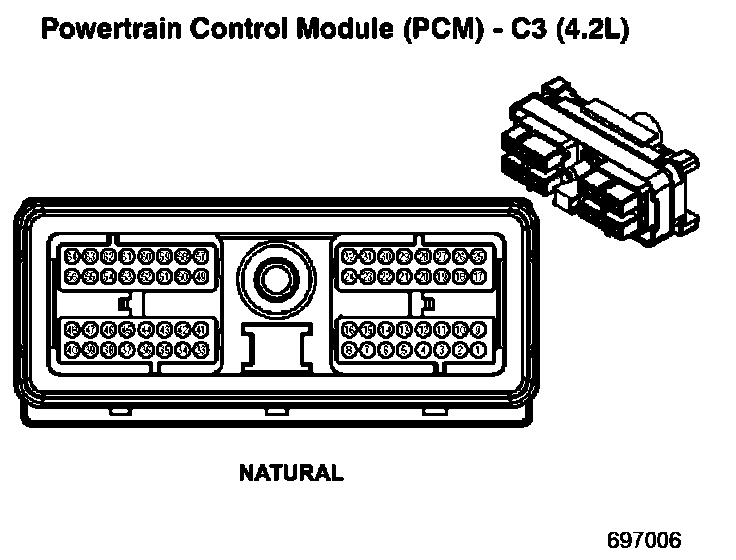

Powertrain Control Module (PCM) - C3:

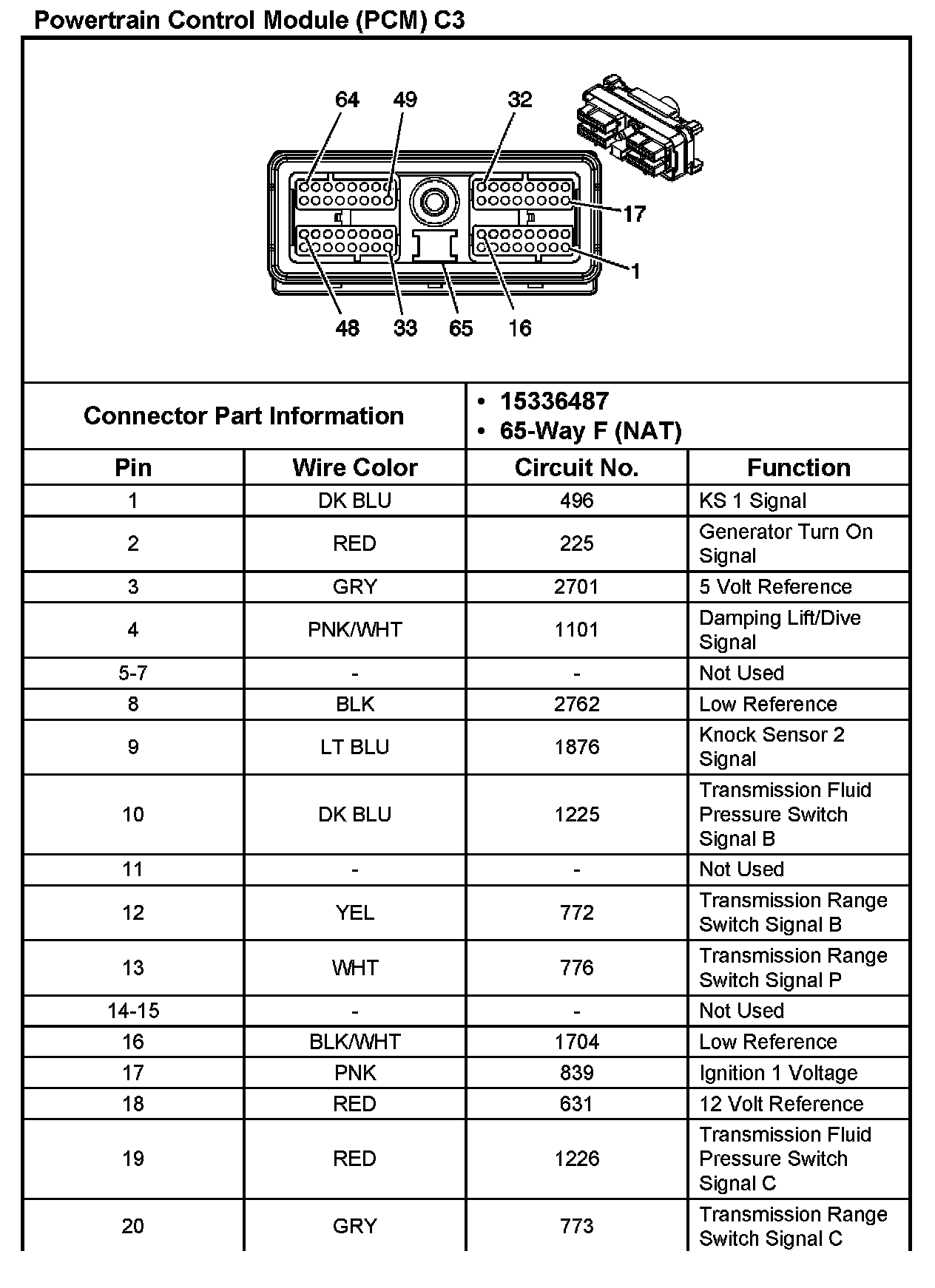

Powertrain Control Module (PCM) C3 Part 1:

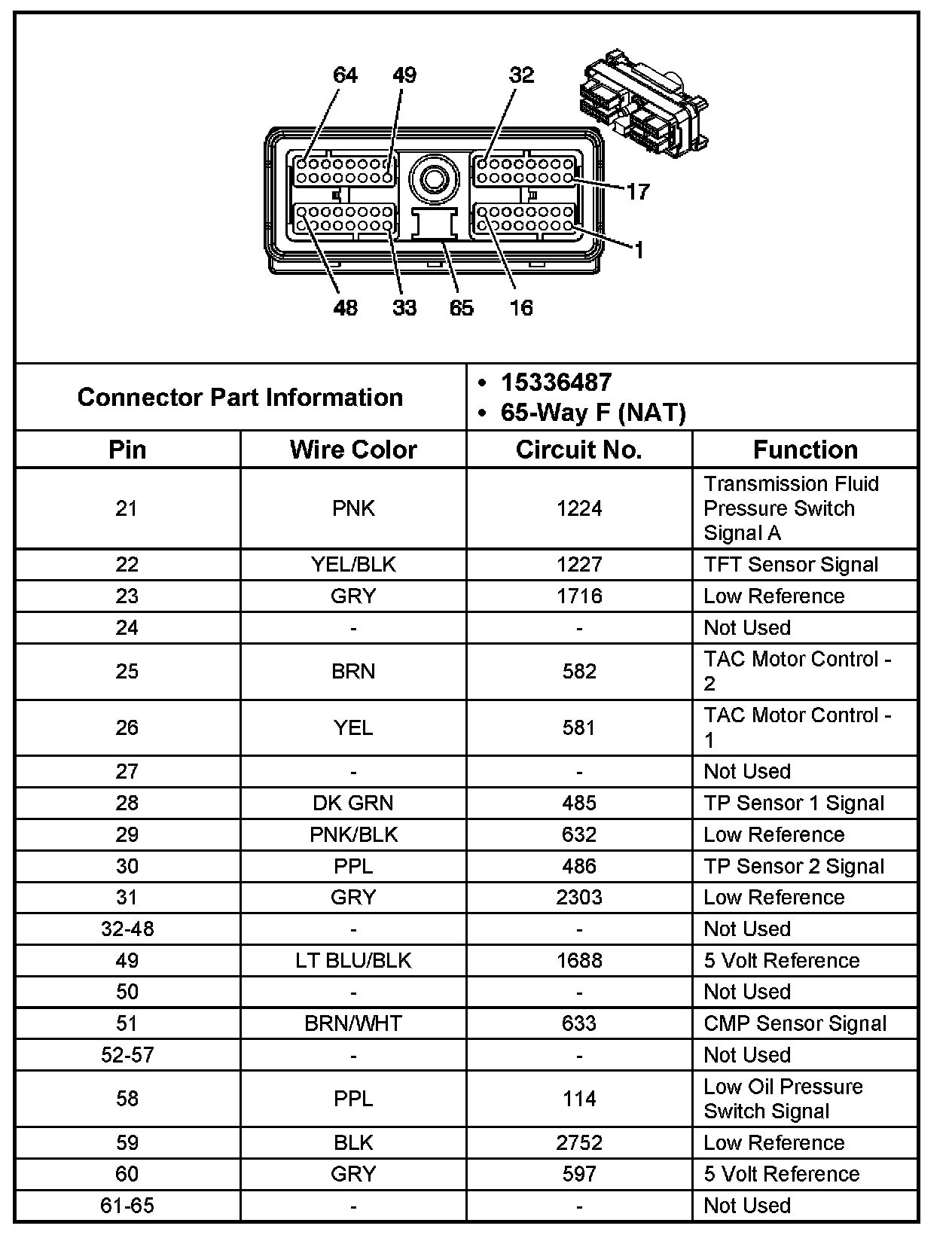

Powertrain Control Module (PCM) C3 Part 2:
