Transfer Case

Transfer Case Disassembled View

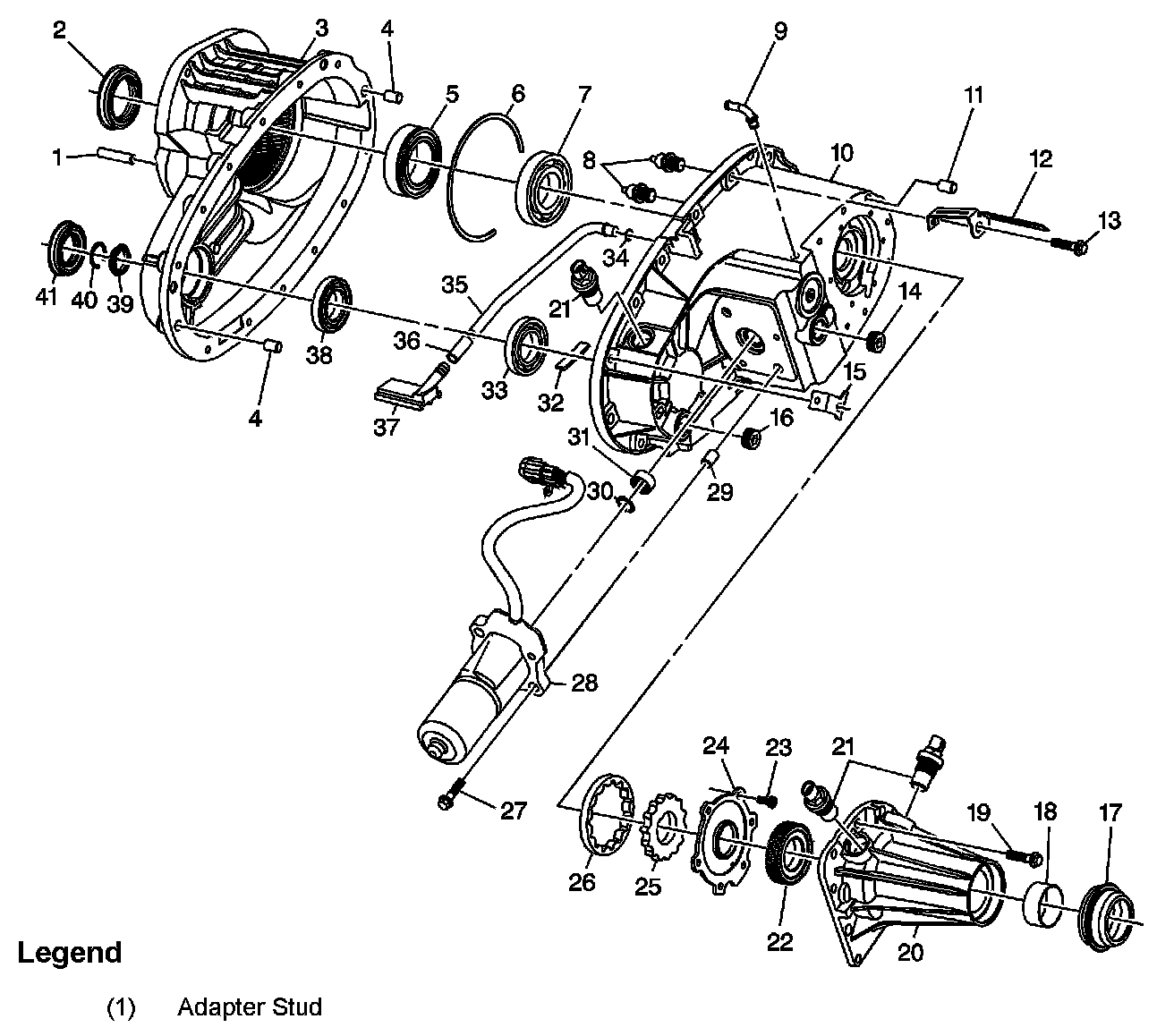

Case Components (1 Of 2):




Case Components (2 Of 2):

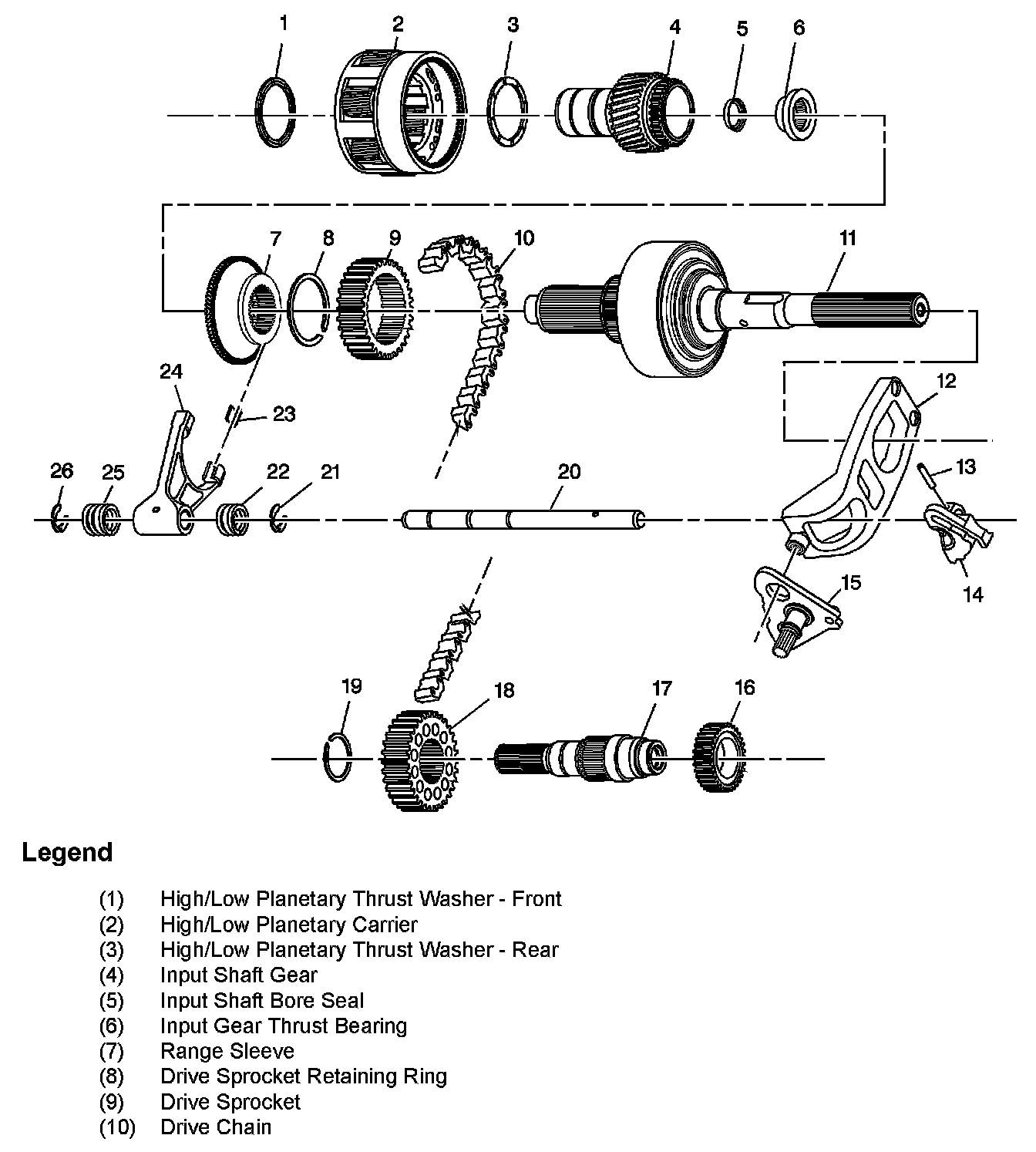

Internal Components (1 Of 2):




Internal Components (2 Of 2):

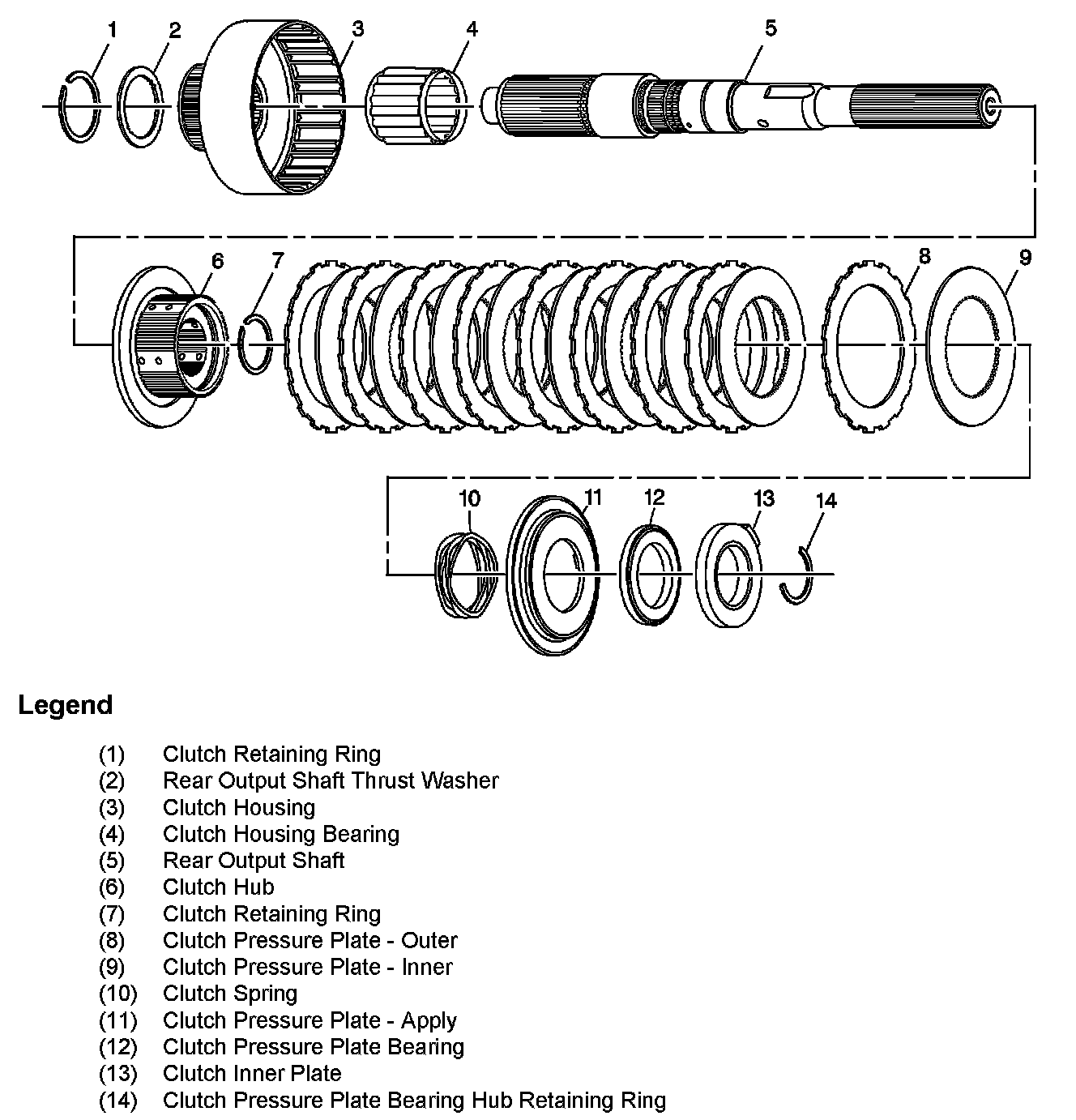

Rear Output Shaft Assembly:
