Accelerator Pedal Position Sensor: Service and Repair

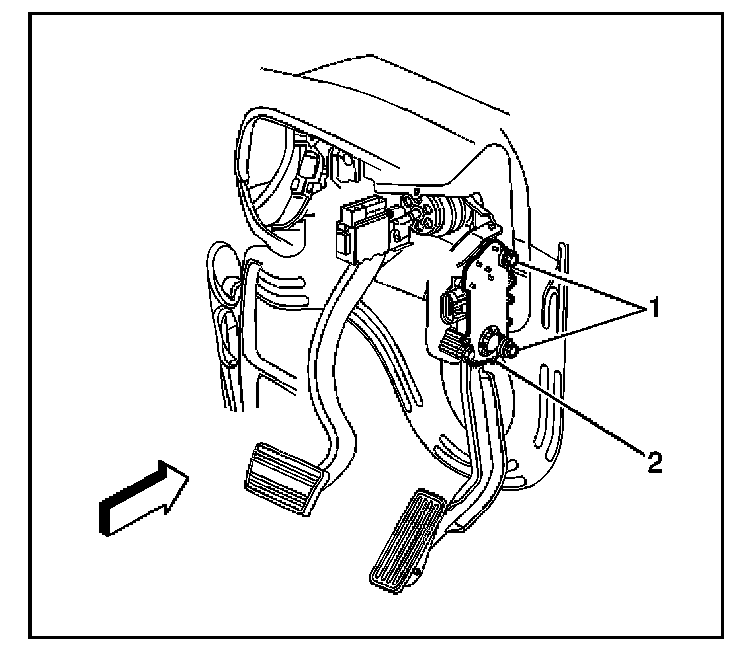

Accelerator Pedal Position (APP) Sensor Replacement

Removal Procedure
1. Disconnect the accelerator pedal position (APP) sensor electrical connector.
2. Remove the APP sensor retaining fasteners.







3. Remove the APP sensor (2) from the vehicle.



Installation Procedure
1. Install the APP sensor (2) to vehicle.

2. Install the APP sensor retaining fasteners (1).

Tighten the retaining fasteners to ........10 N.m (89 lb in).







3. Connect the APP sensor electrical connector.
