Connector Views

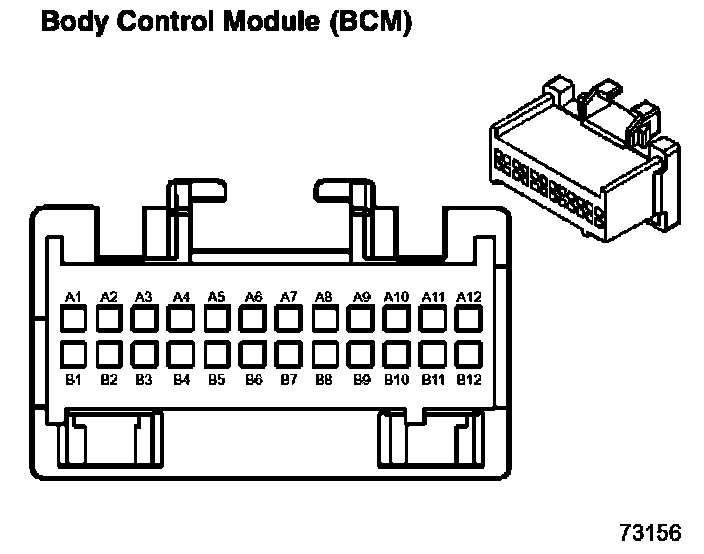

Body Control Module (BCM):

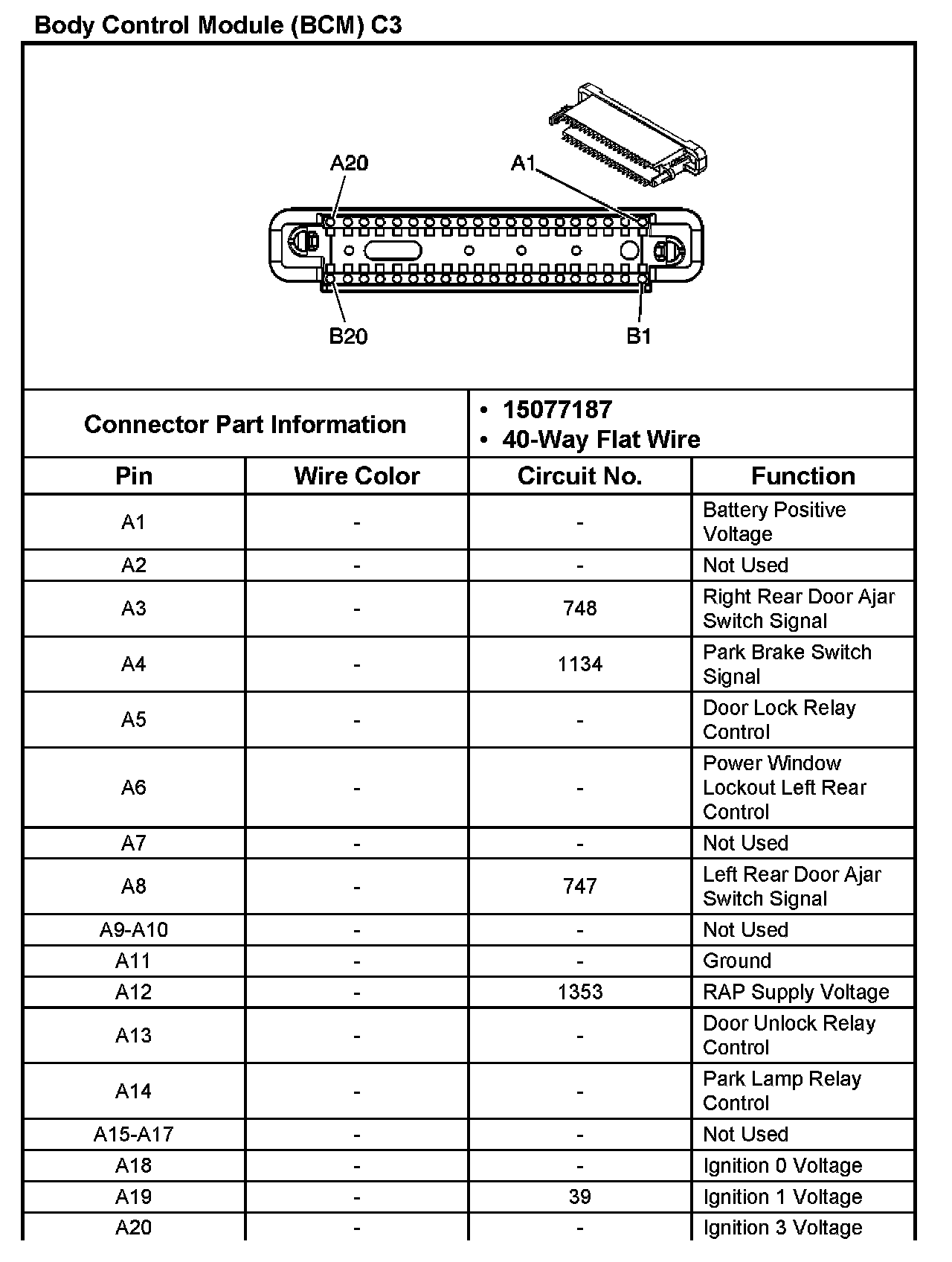

Body Control Module (BCM) C3 Part 1:

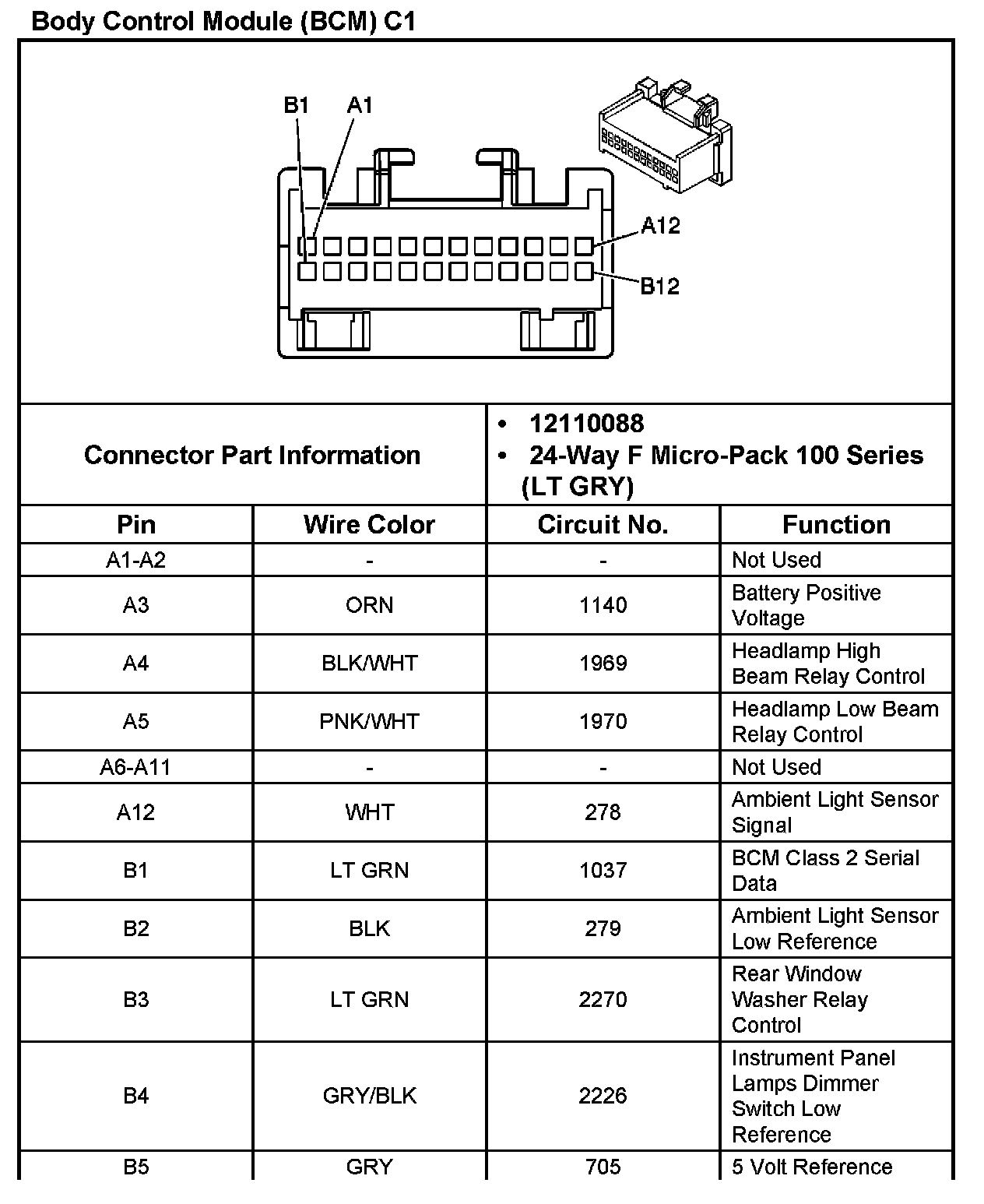

Body Control Module (BCM) C1 Part 1:

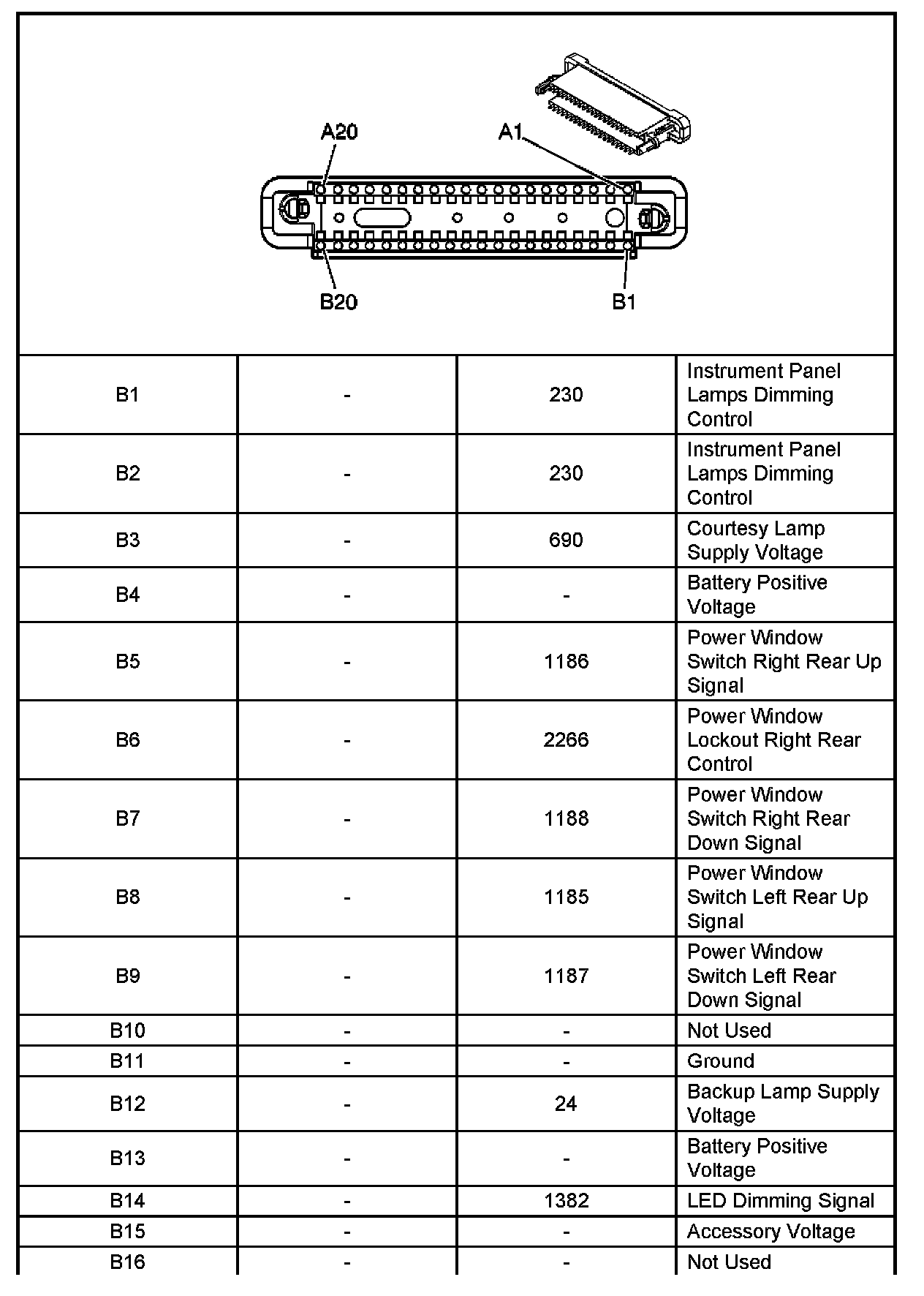

Body Control Module (BCM) C3 Part 2:

Body Control Module (BCM) C1 Part 1:

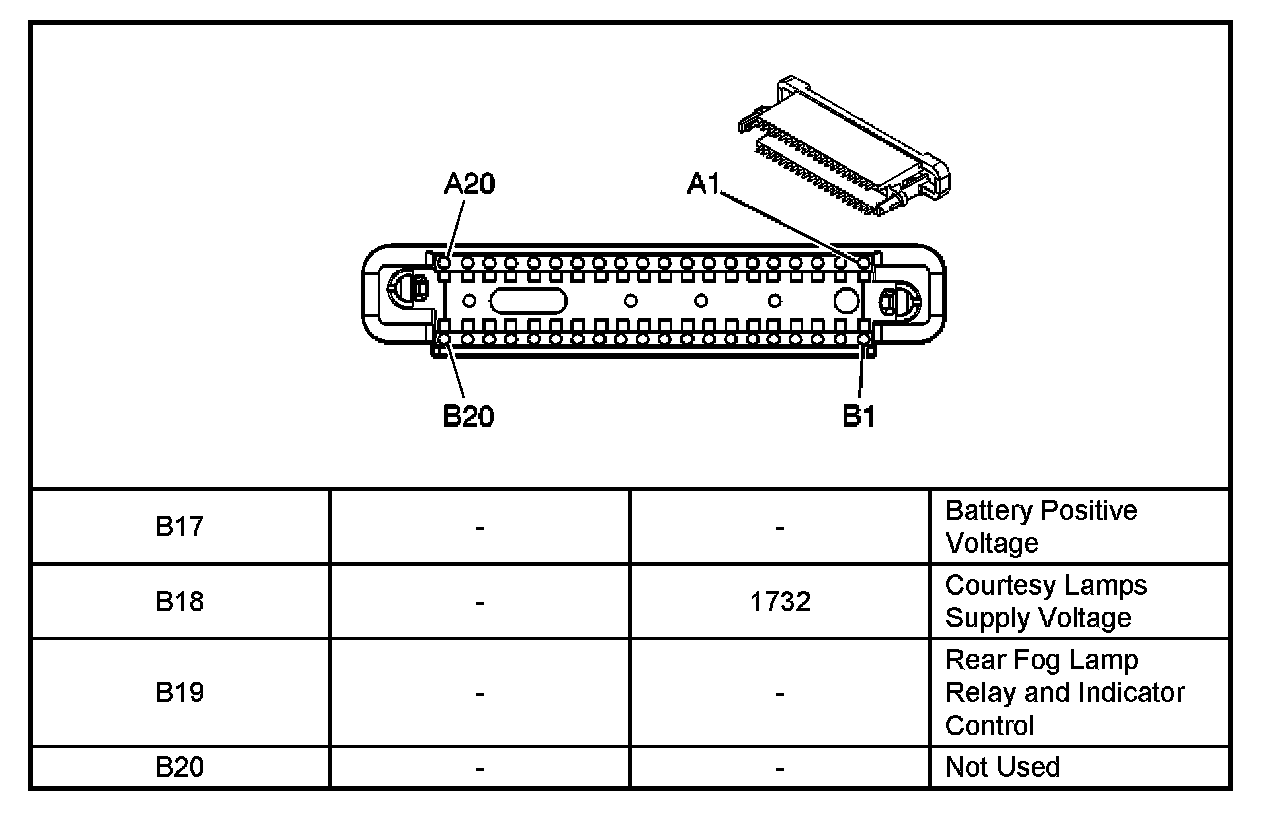

Body Control Module (BCM) C3 Part 3:

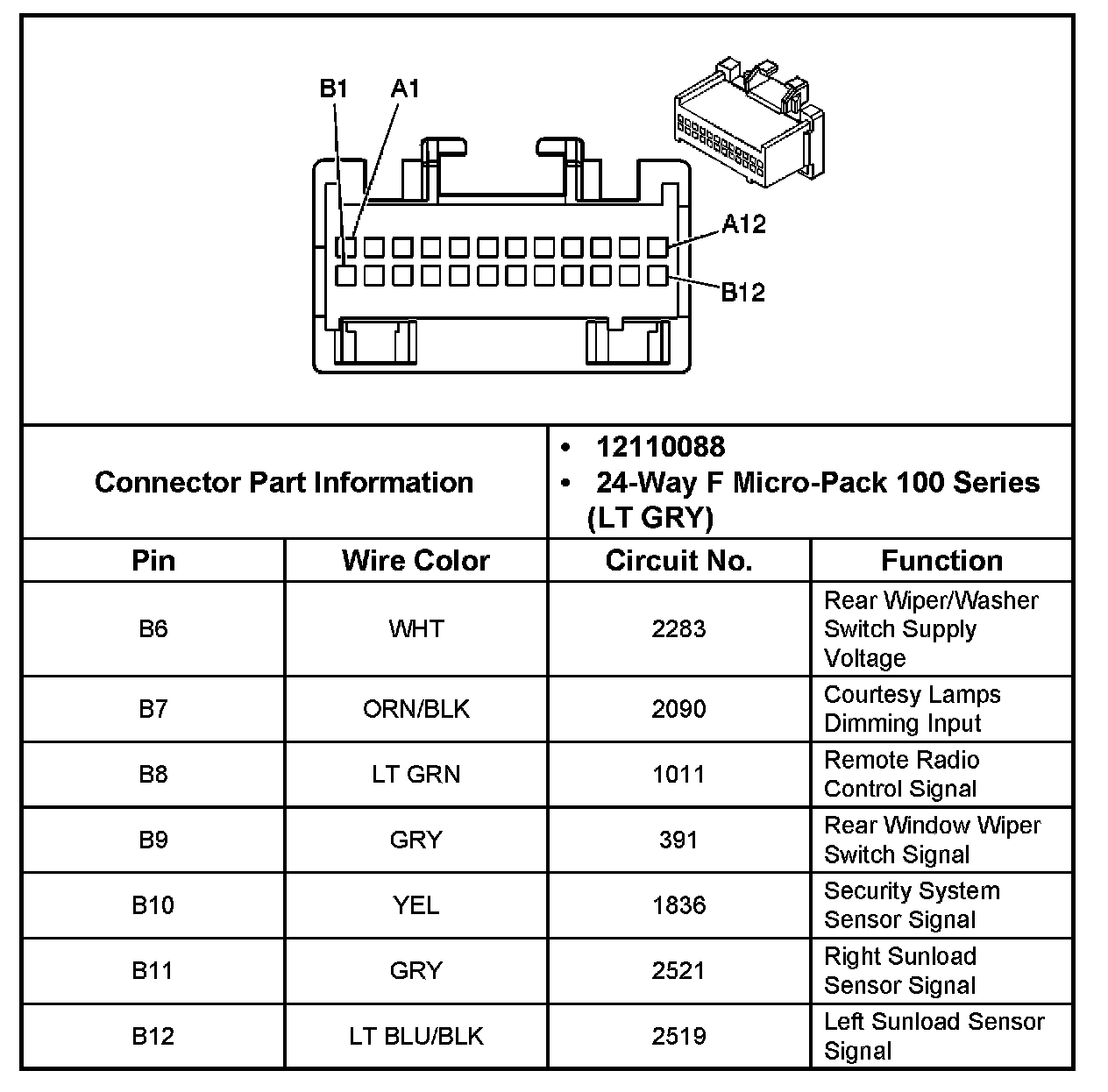

Body Control Module (BCM) C1 Part 2:

Body Control Module (BCM) C1 Part 2:
