Body Control Module: Locations

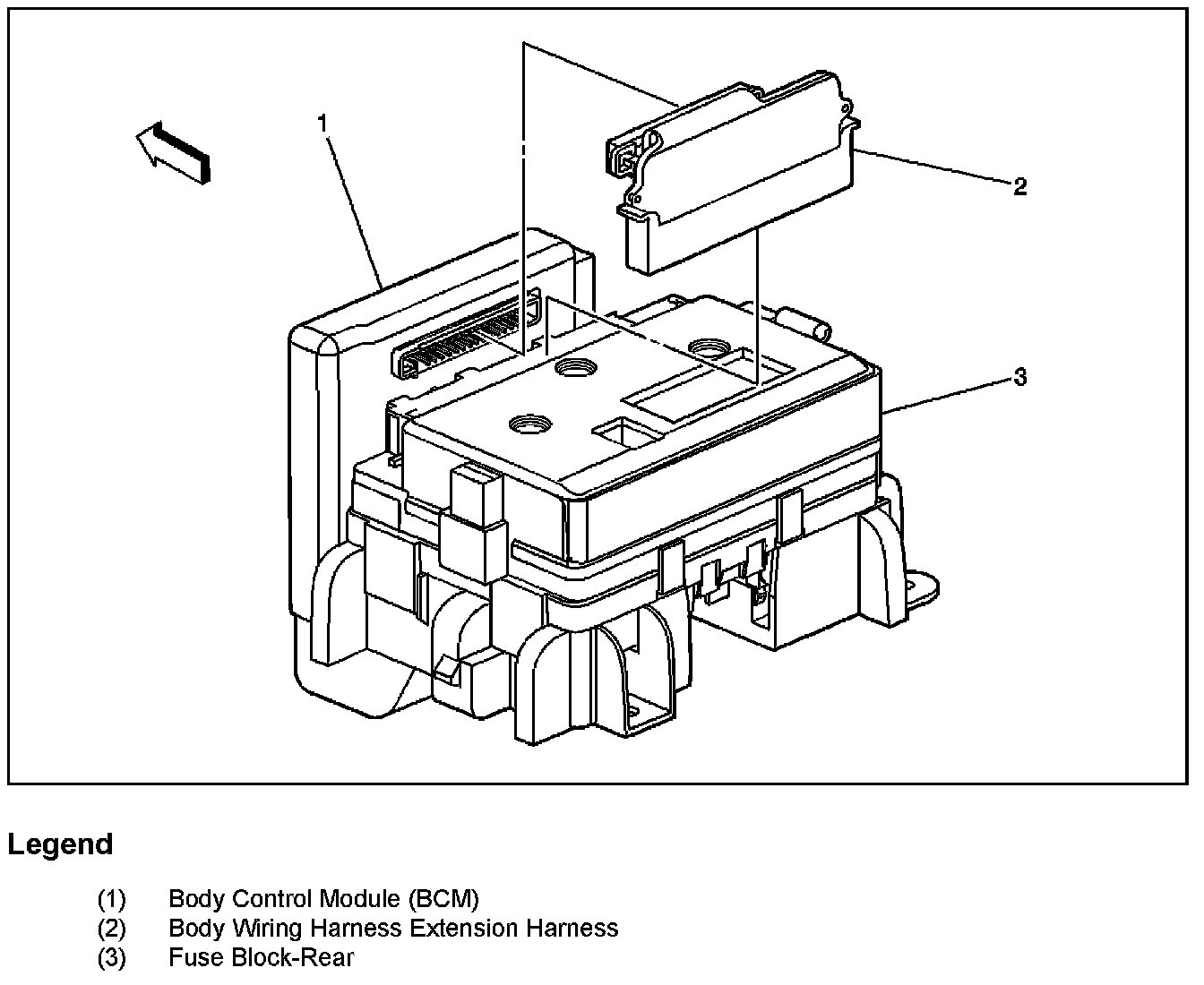

Body Wiring Harness Extension Harness:

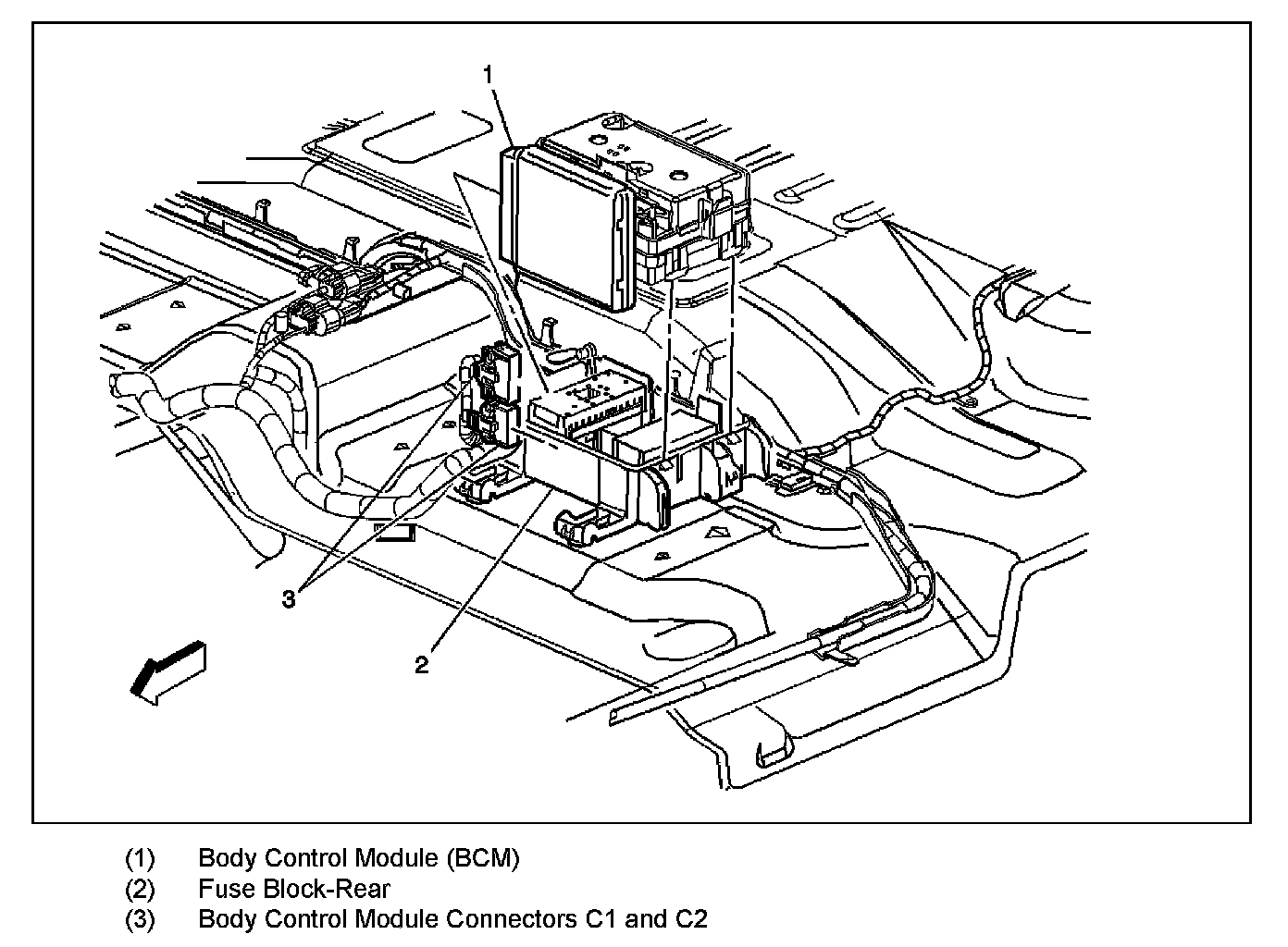

Body Control Module (BCM):

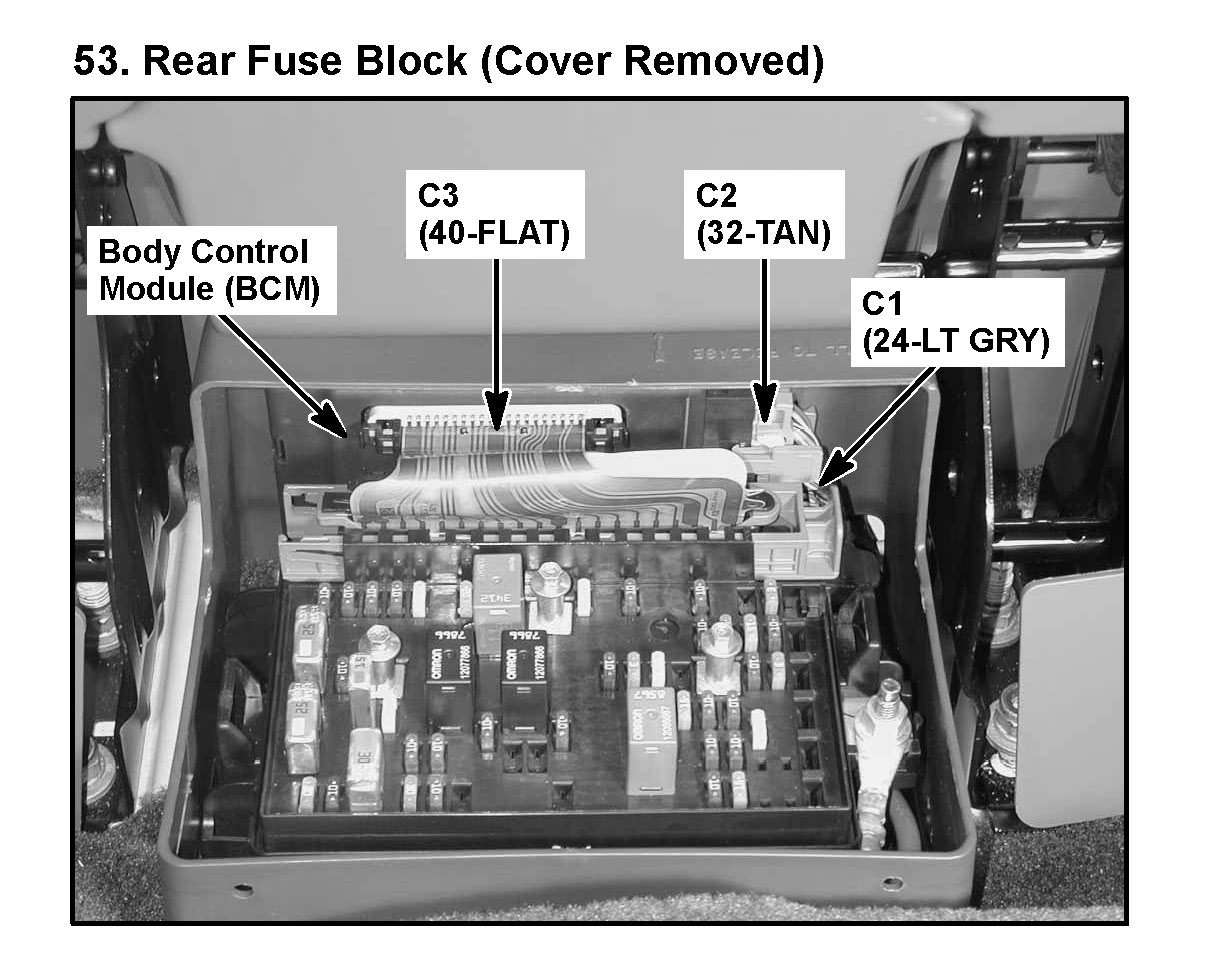

53. Rear Fuse Block (Cover Removed):
