Transfer Case Motor/Encoder Replacement
Transfer Case Motor/Encoder ReplacementRemoval Procedure
Important: Before the motor/encoder is removed, ensure that the motor/encoder is in the neutral position.
1. Raise the vehicle.
2. Remove the transfer case shield, if equipped.
3. Remove the motor/encoder electrical connector.

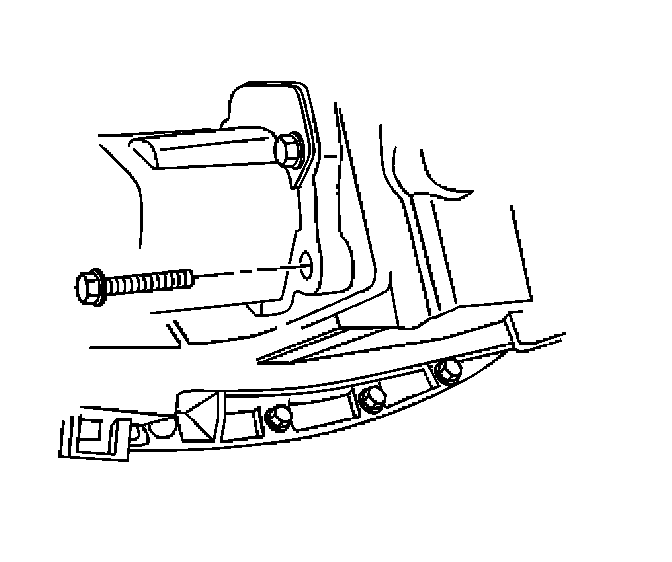

4. Remove the motor/encoder mounting bolts.

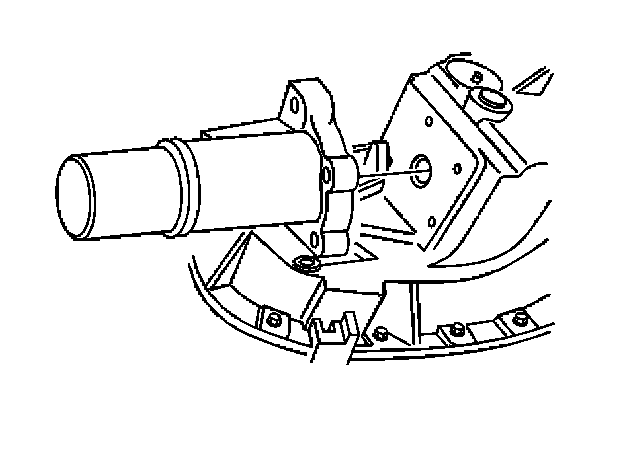

5. Remove the motor/encoder assembly.
Installation Procedure
Important: When performing this service procedure, make sure that the motor/encoder unit is flat against the transfer case for proper installation.

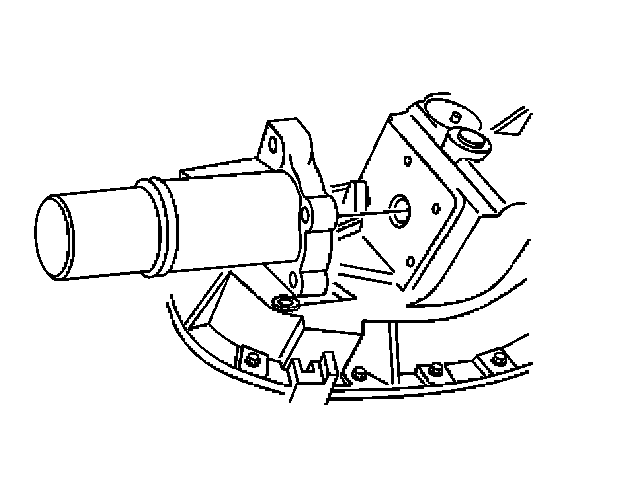

1. Install the motor/encoder to the transfer case.
Notice: Refer to Fastener Notice in Service Precautions.

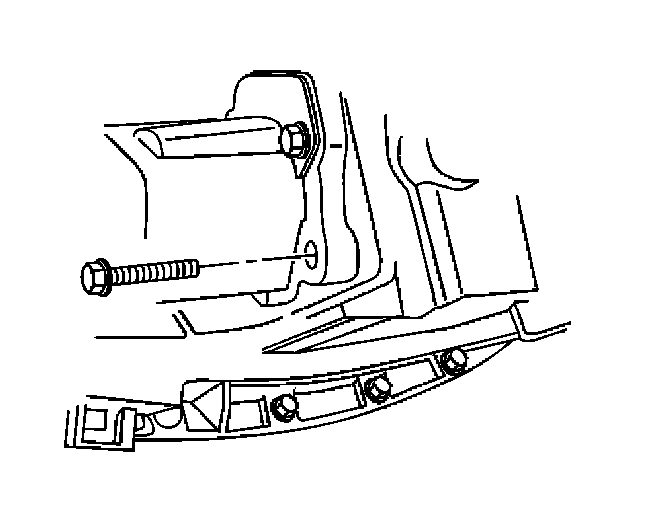

2. Install motor/encoder mounting bolts to the transfer case.
Tighten the bolts to 16 Nm (12 ft. lbs.).
3. Install the motor/encoder electrical connector.
4. Install the transfer case shield, if equipped.
5. Lower the vehicle.
