Control Module: Service and Repair

TOD Control Unit

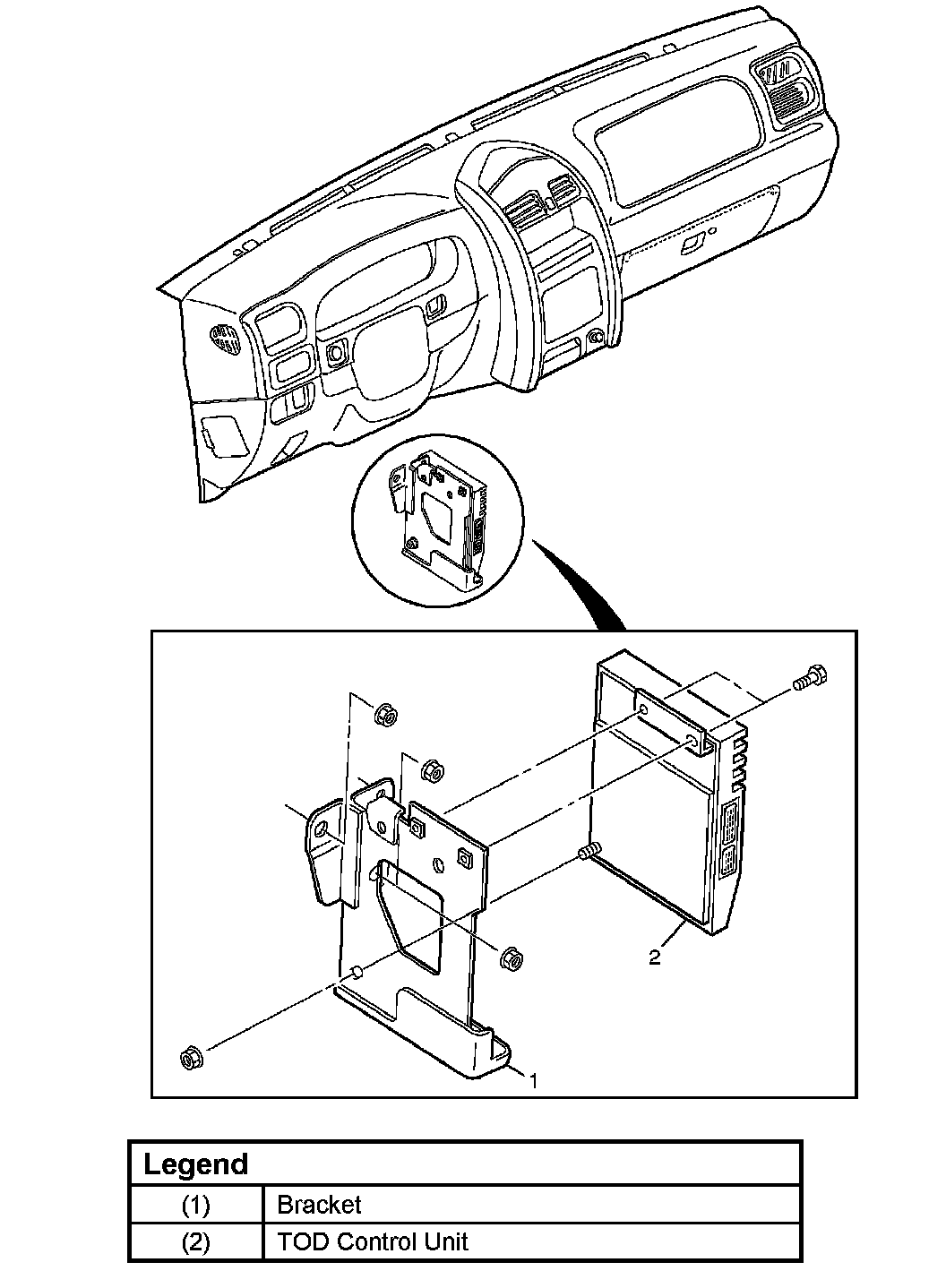

Removal
1. Disconnect the battery ground cable.
2. Disconnect the harness connector from the TOD control unit.
3. Remove the bracket retaining nuts (3 pieces) and the bracket with TOD control unit.
4. Remove the TOD control unit from the bracket.

Installation
1. Install the TOD control unit to the bracket.
2. Install the bracket with TOD control unit to the chassis.
3. Connect the harness connector to the TOD control unit.
4. Connect the battery ground cable.
