Diagnostic Procedure

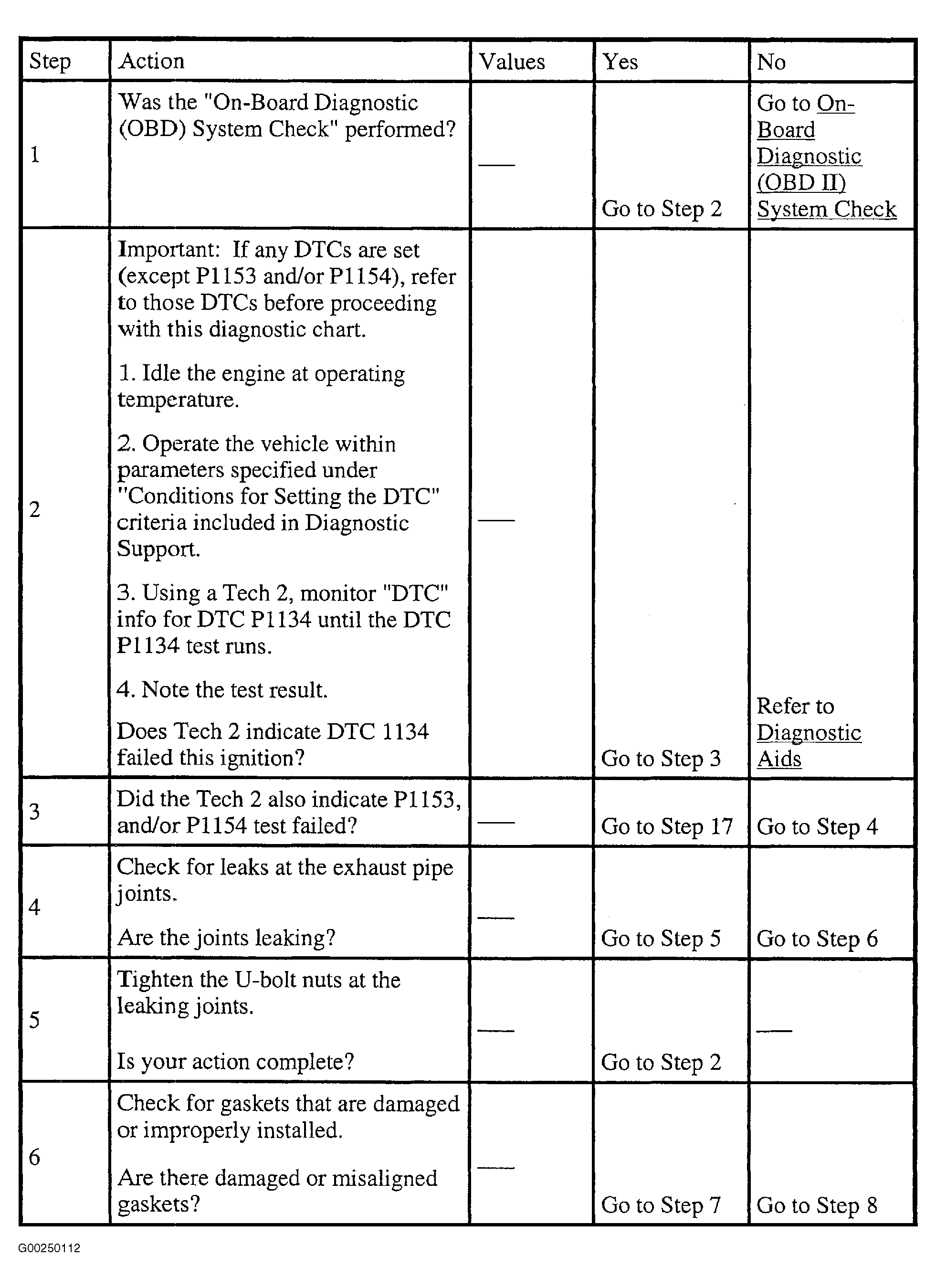

Fig 1: DTC P1134: Bank 1 Sensor 1 O2 Sensor Circuit - Transition Switch Time Ratio (Steps 1-6)

Courtesy of ISUZU MOTOR CO.

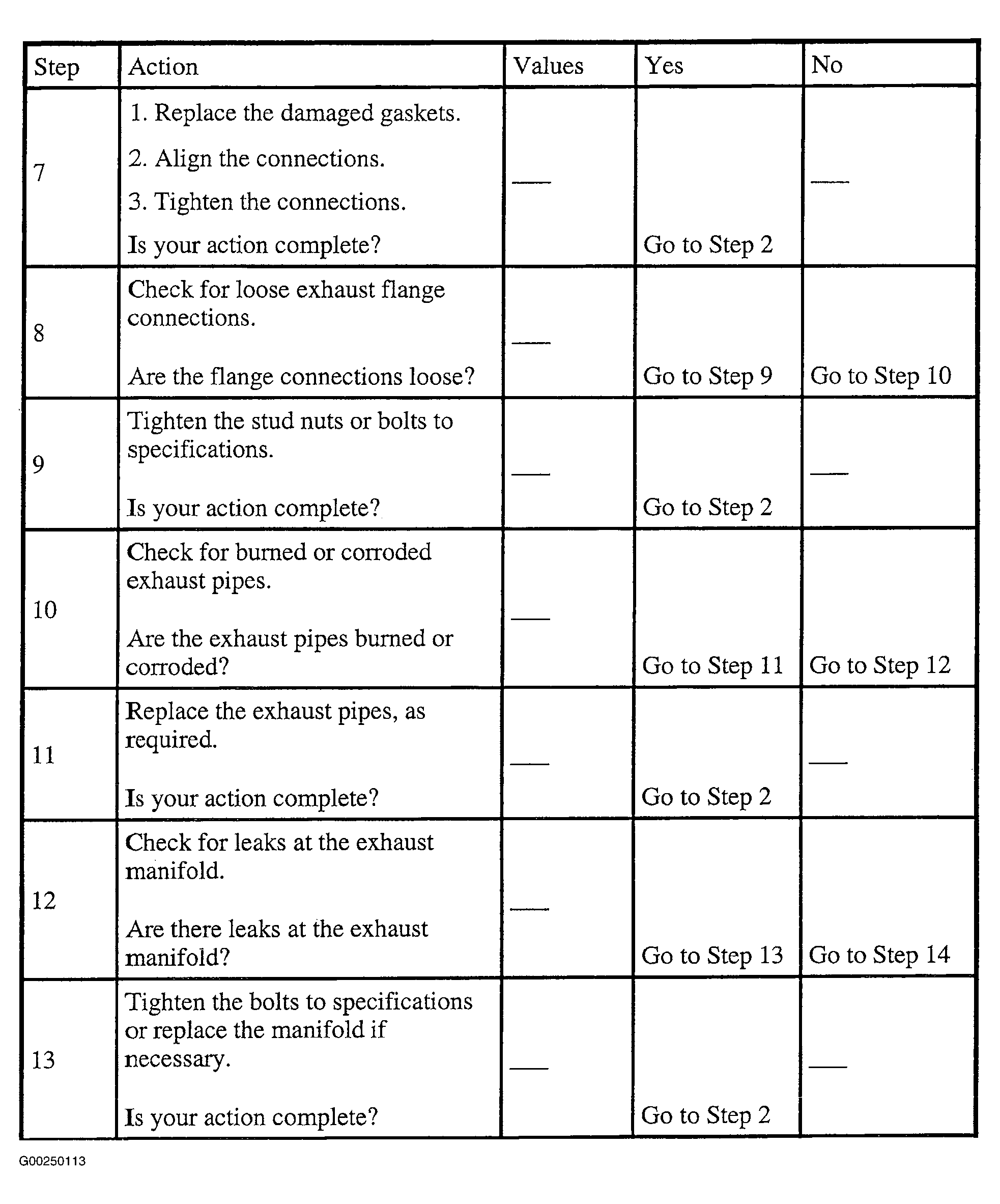

Fig 2: DTC P1134: Bank 1 Sensor 1 O2 Sensor Circuit - Transition Switch Time Ratio (Steps 7-13)

Courtesy of ISUZU MOTOR CO.

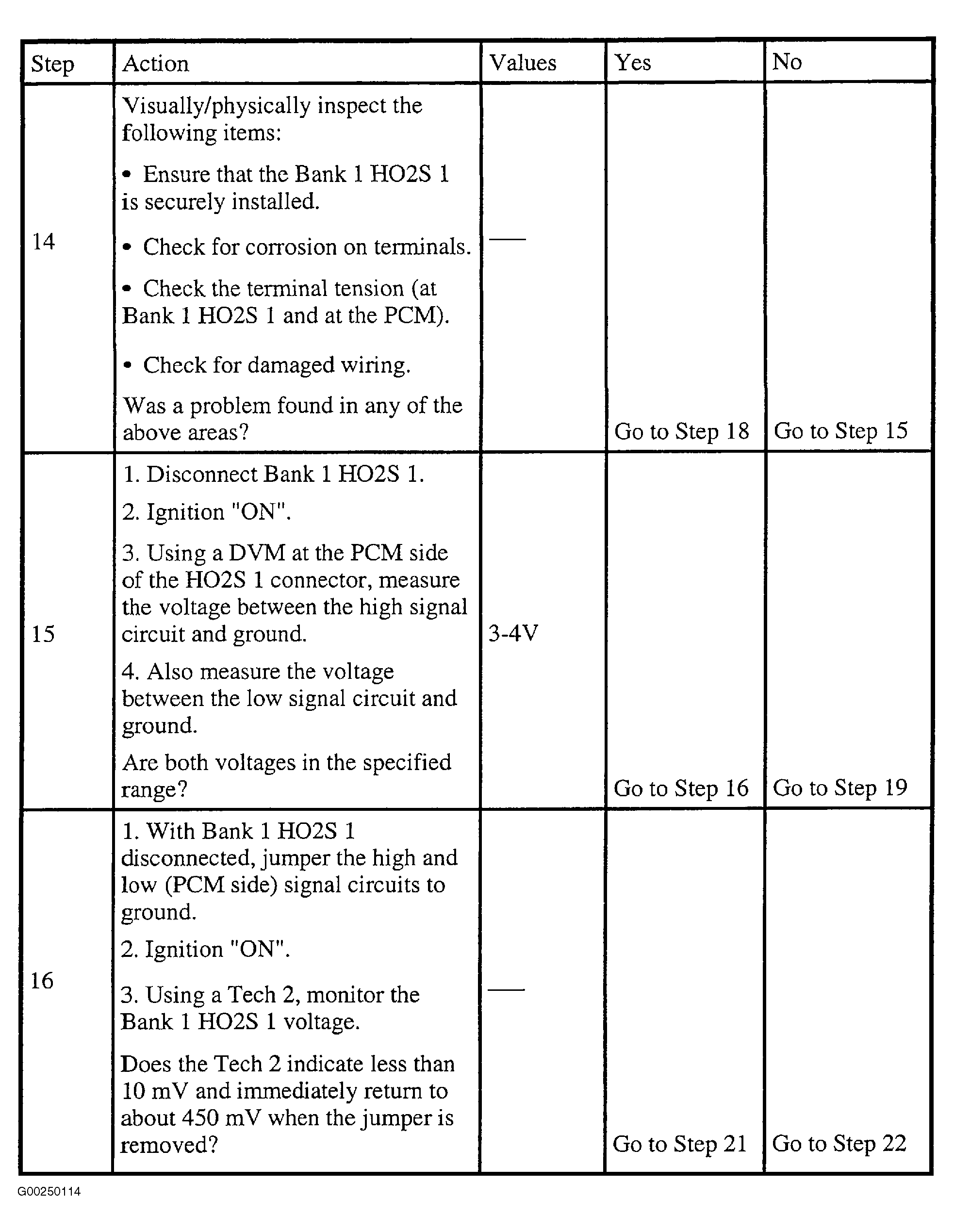

Fig 3: DTC P1134: HO2S Bank 1 Sensor 1 - Transition Switch Time Ratio (Steps 14-16)

Courtesy of ISUZU MOTOR CO.

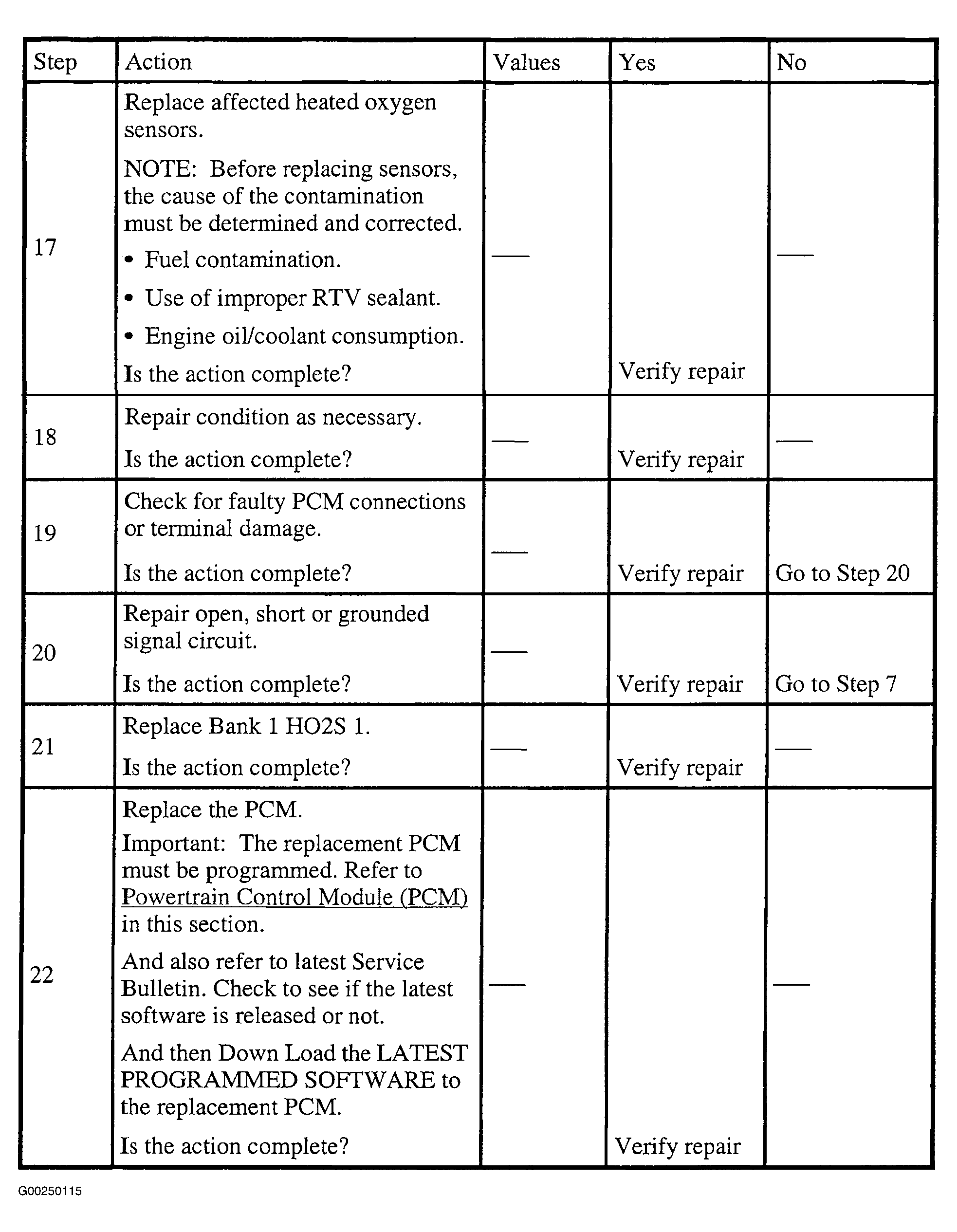

Fig 4: DTC P1134: HO2S Bank 1 Sensor 1 - Transition Switch Time Ratio (Steps 17-22)

Courtesy of ISUZU MOTOR CO.
