DTC P0712 Transmission Fluid Temperature (TFT) Sensor Circuit Low Input

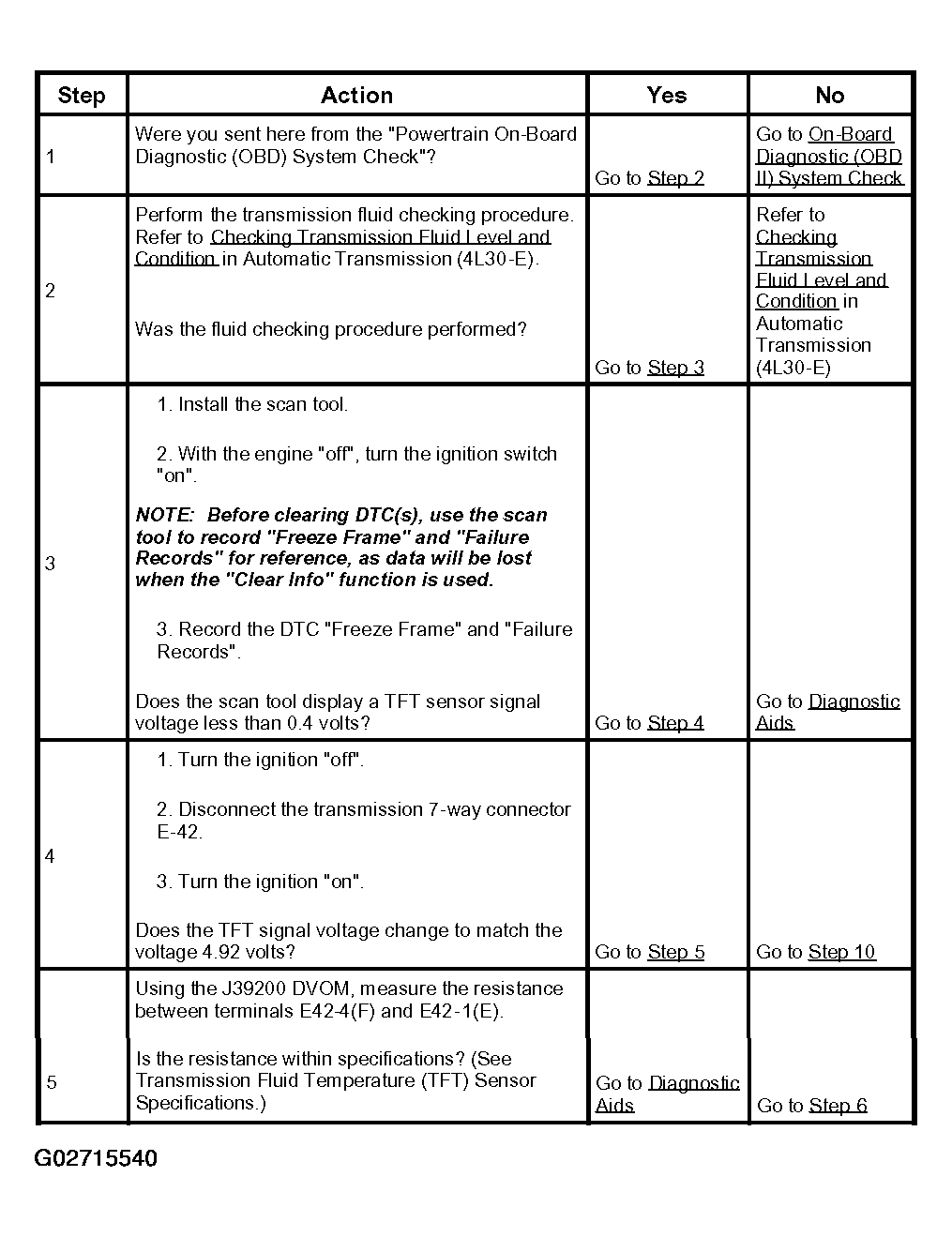

Fig 1: DTC P0712 Transmission Fluid Temperature (TFT) Sensor Circuit Low Input Diagnostic Chart (Steps 1-5)
G02715540Courtesy of ISUZU MOTOR CO.

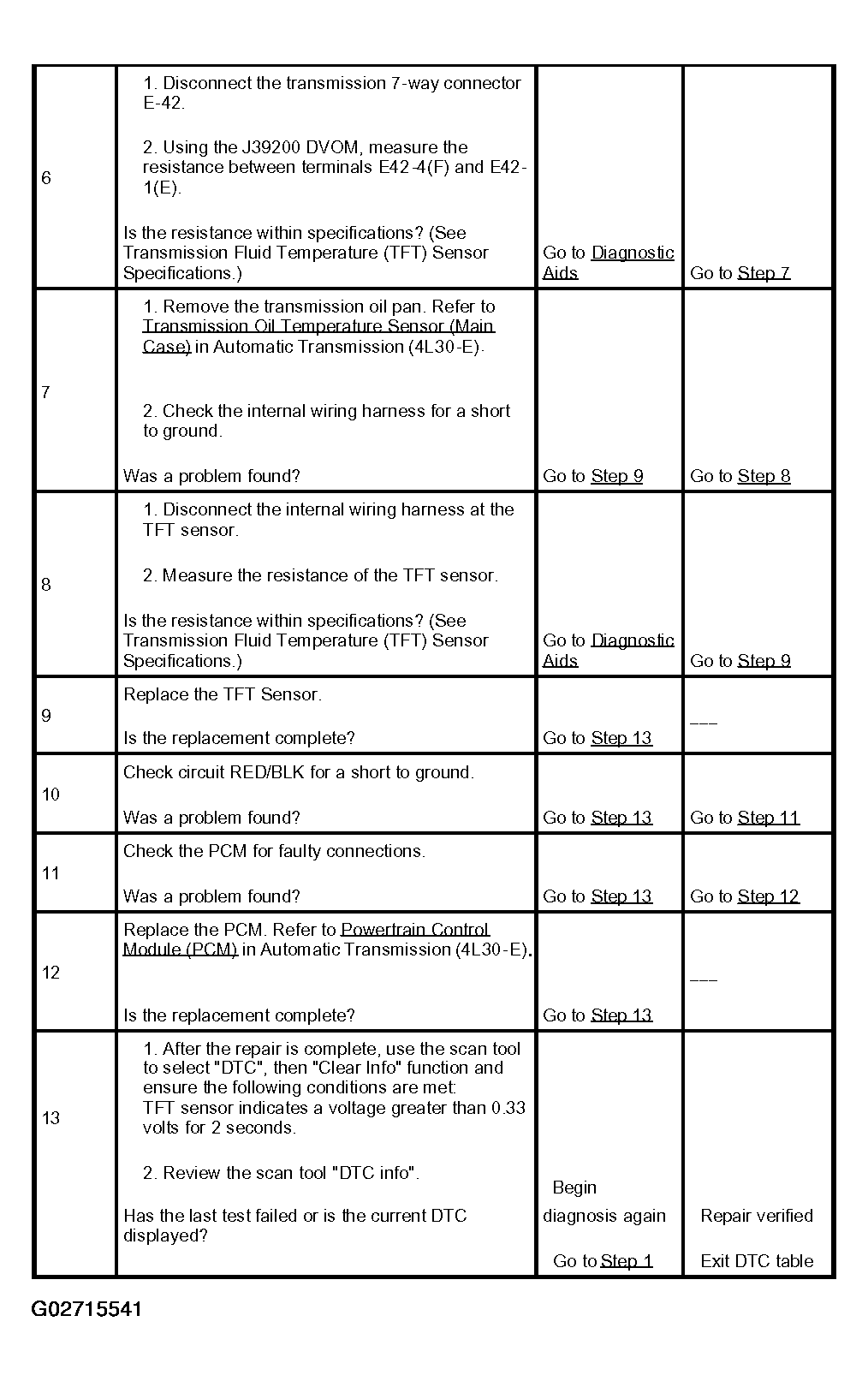

Fig 2: DTC P0712 Transmission Fluid Temperature (TFT) Sensor Circuit Low Input Diagnostic Chart (Steps 6-13)
G02715541Courtesy of ISUZU MOTOR CO.
