Shift On The Fly Controller And Associated Parts: Notes

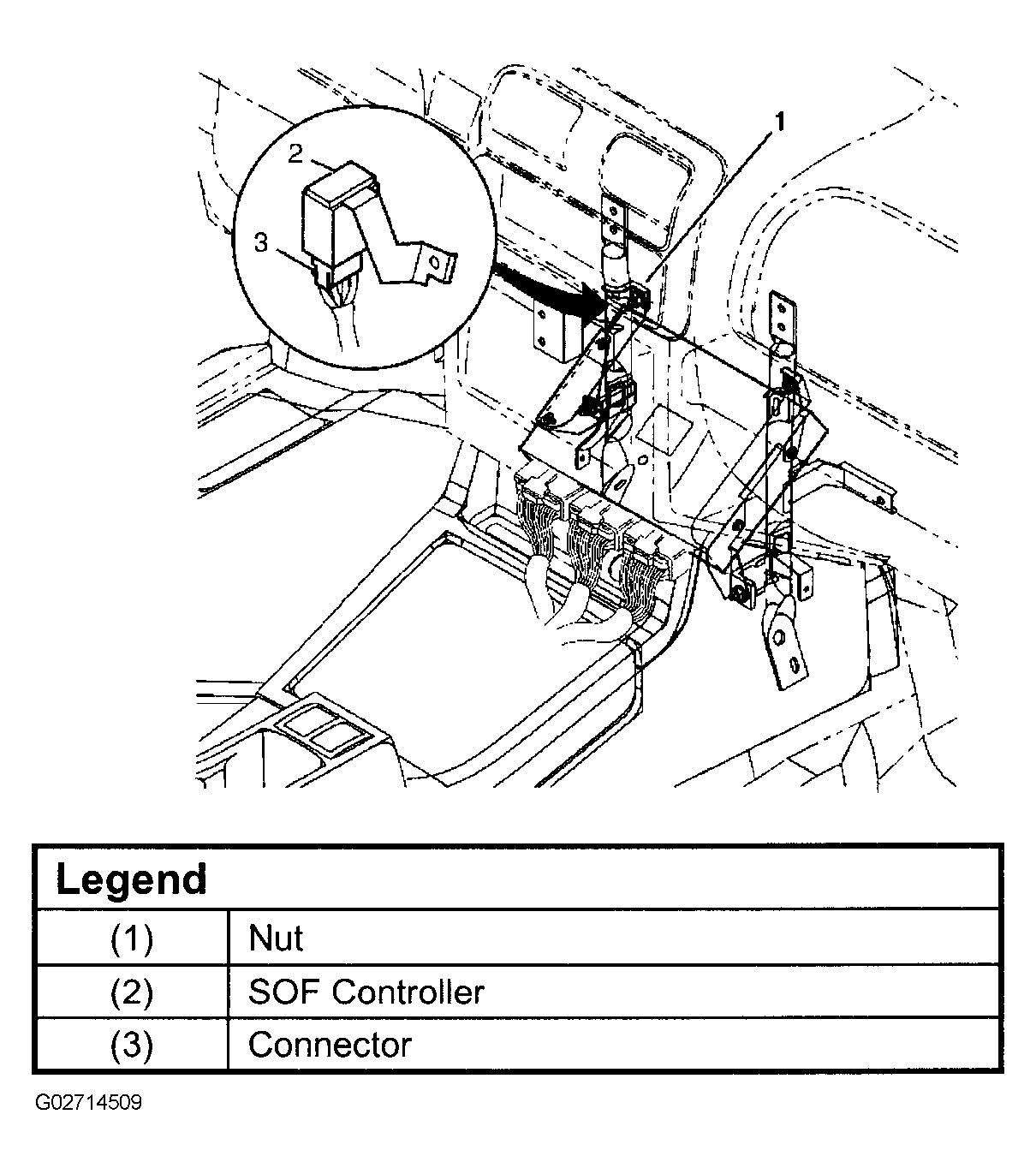

Fig 1: Identifying Shift On The Fly (SOF) Controller & Associated Parts
G02714509Courtesy of ISUZU MOTOR CO.
