Disassembled View

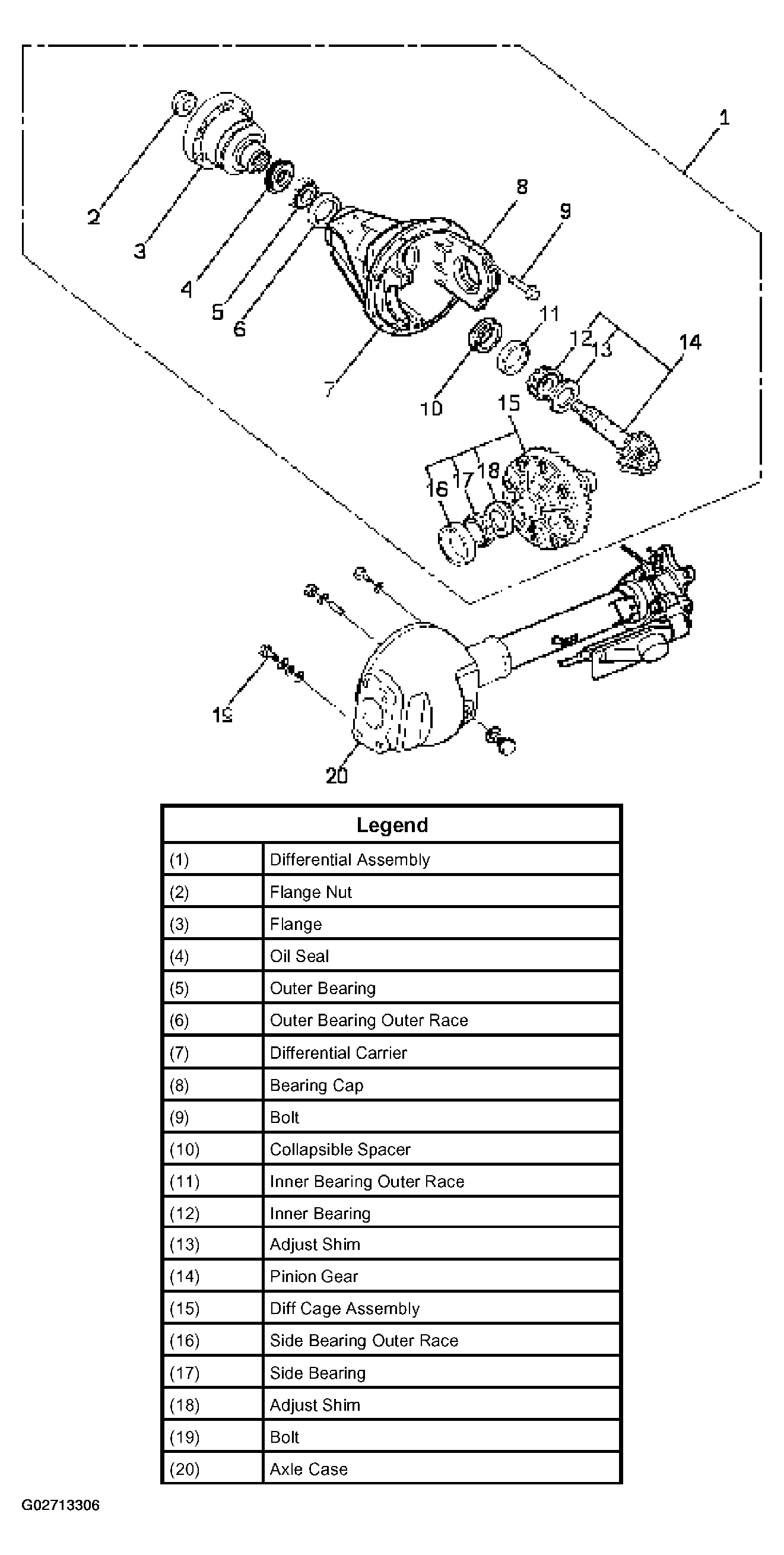

Fig 1: Exploded View Of Differential Assembly
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
