Torque Specifications

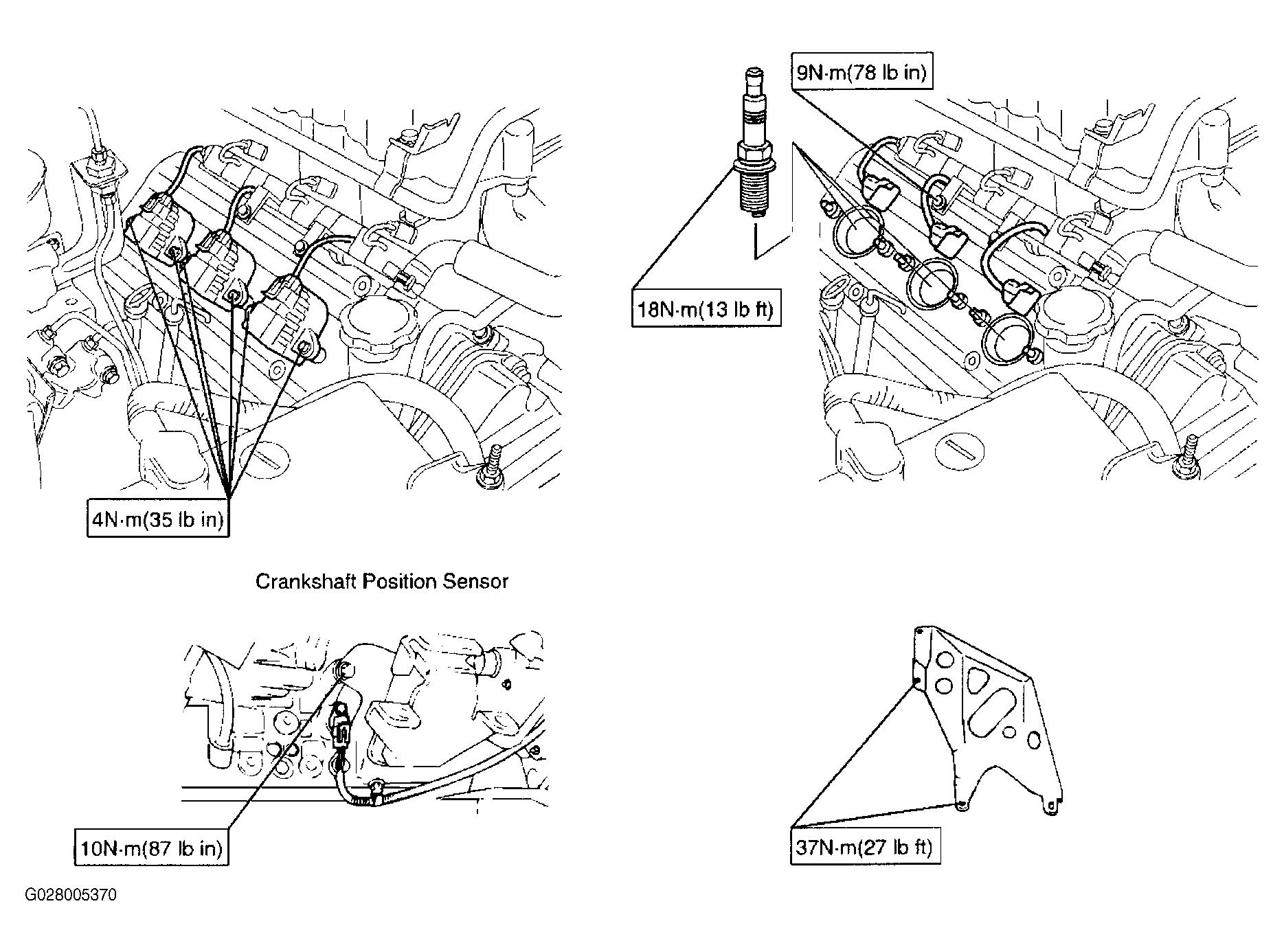

Fig 1: Ignition System Torque Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
