Torque Specifications

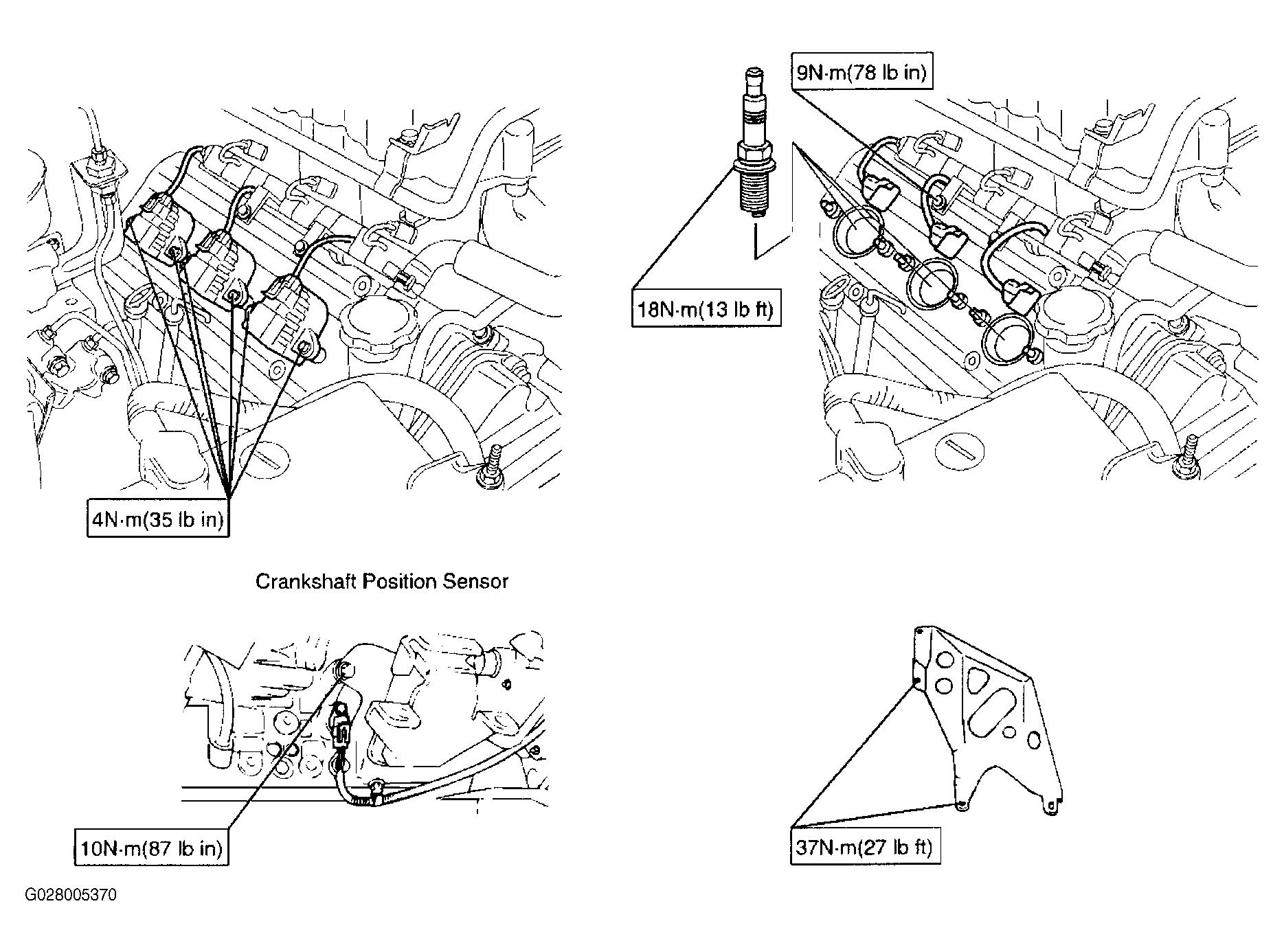

Fig 1: Ignition System Torque Specifications

G02805370

Courtesy of ISUZU MOTOR CO.
