Throttle Actuator Control Module (Ascender 5.3L): Removal

  1. Remove bulk connector from bracket, insert a small flat-bladed tool to disengage the clip.

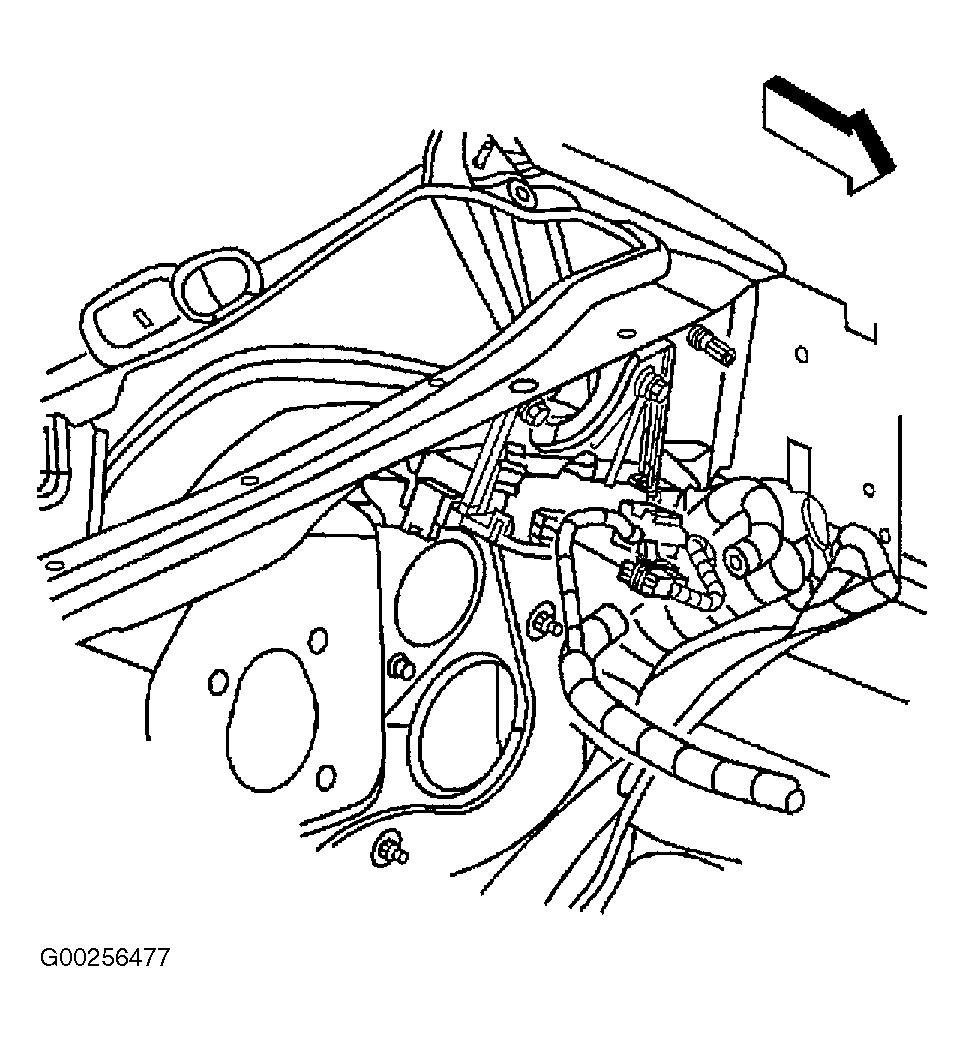

  2. Disconnect Instrument Panel (I/P) electrical connector. See Figure .

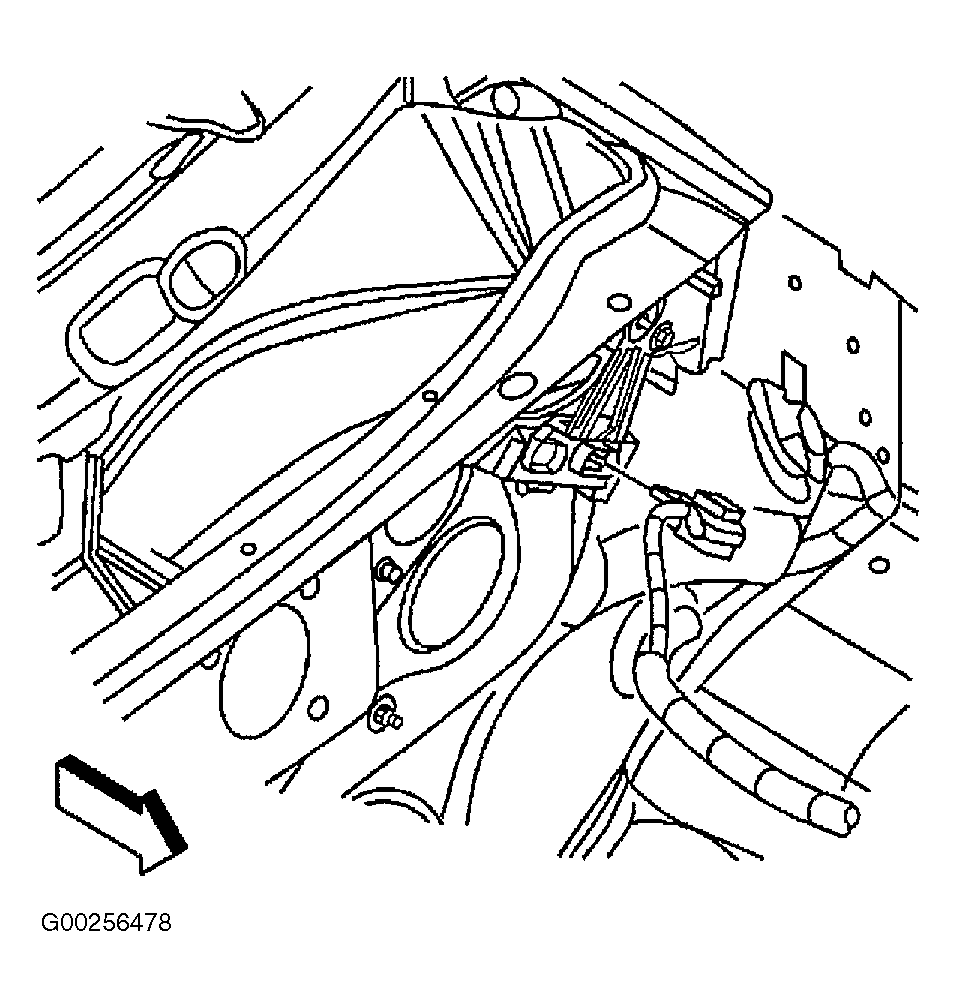

  3. Disconnect engine electrical connector. See Figure .

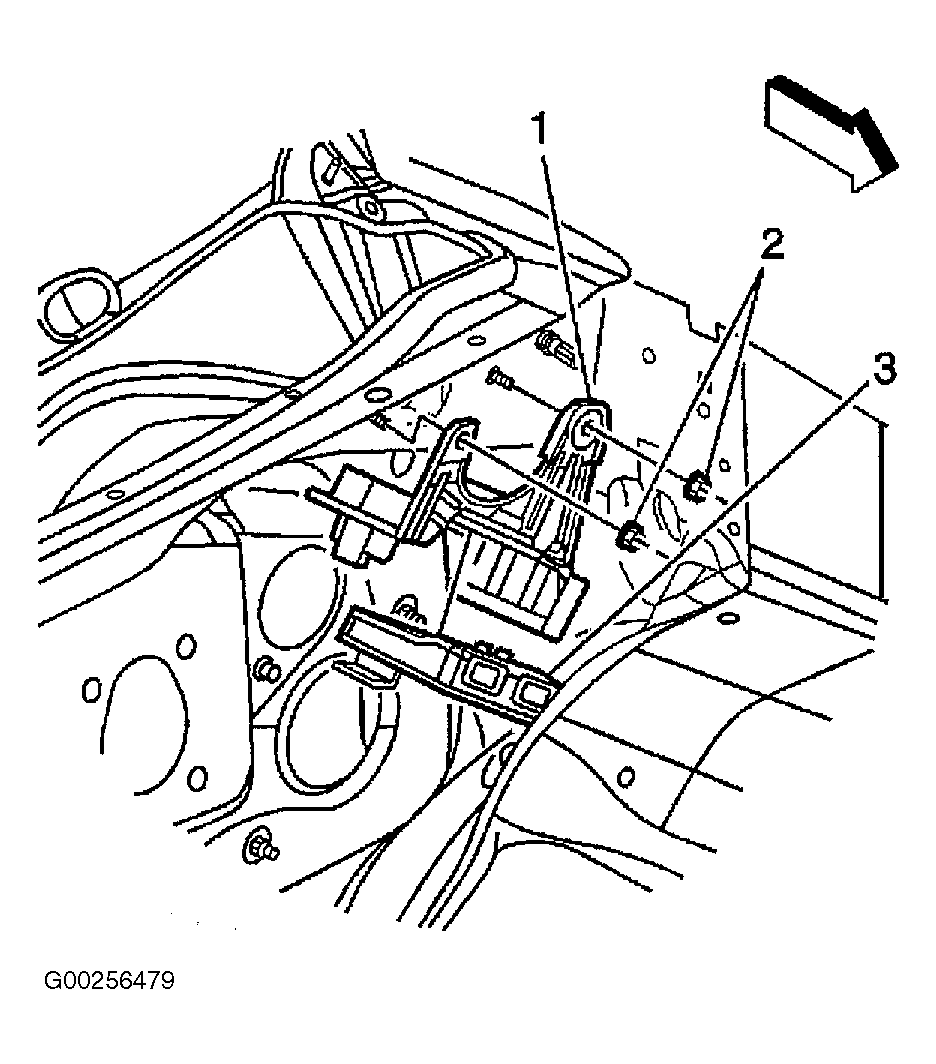

  4. Release the retaining tab on the side of the Throttle Actuator Control (TAC) module (3). See Figure .
  5. Remove the TAC module (3) from the retaining bracket (1).
  6. If necessary, remove the TAC module bracket nuts (2) and bracket (1).
