Clutch Switch: Adjustments

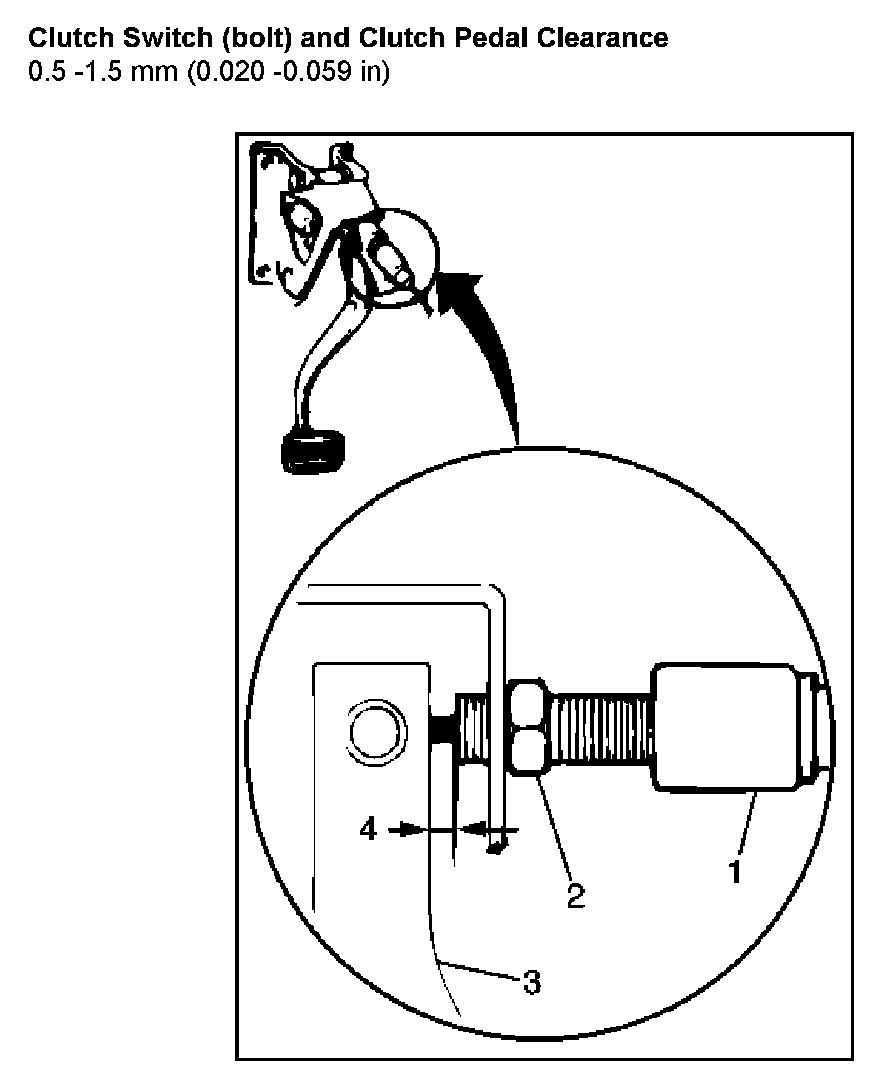

1. Turn the clutch switch (1) until the switch plunger is fully retracted against the clutch pedal arm.
2. Adjust clutch switch by backing it out half a turn and measure the clearance (4) between the clutch pedal arm (3) and the clutch switch.
3. Lock the lock nut (2).
4. Connect clutch switch connector.
