Heating and Air Conditioning: Locations

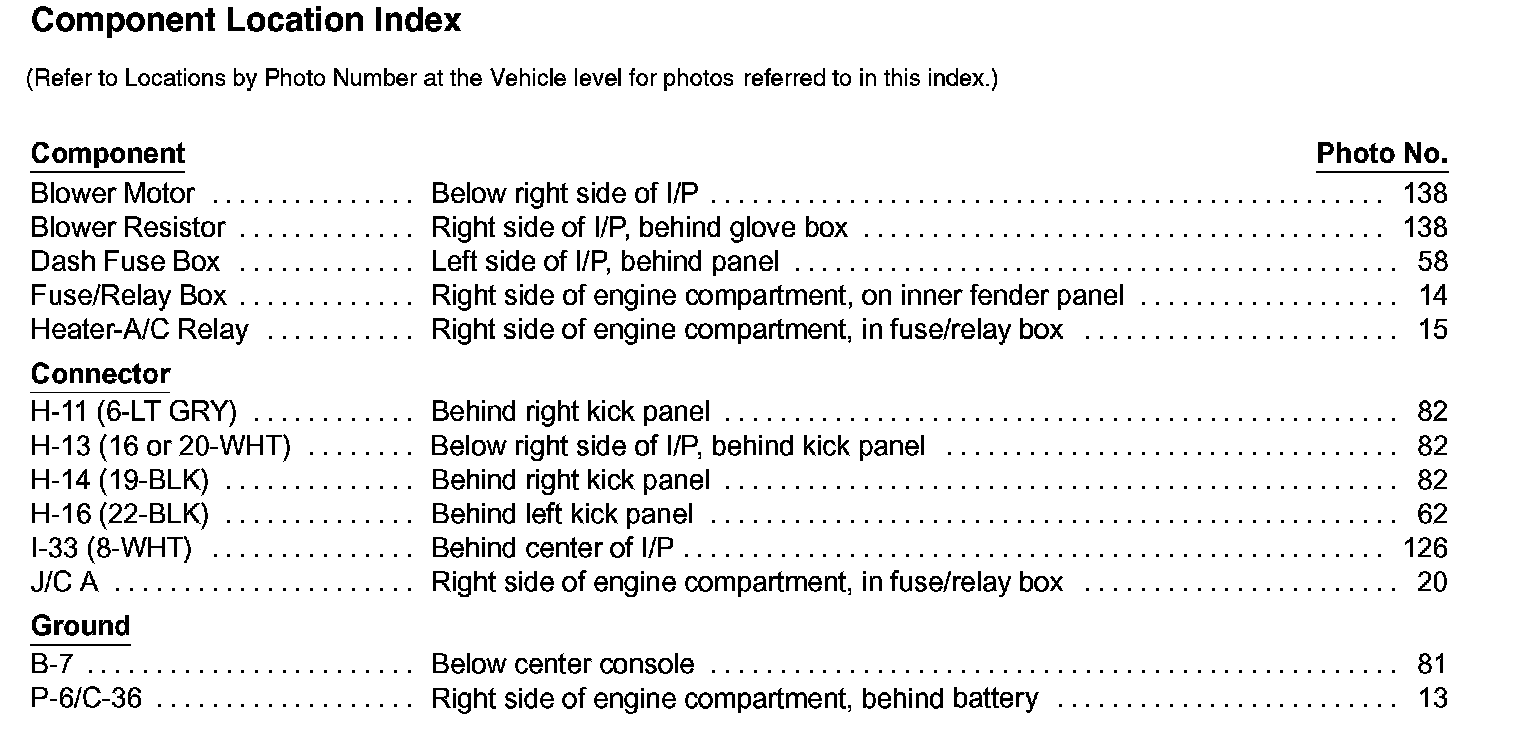

Blower Controls:

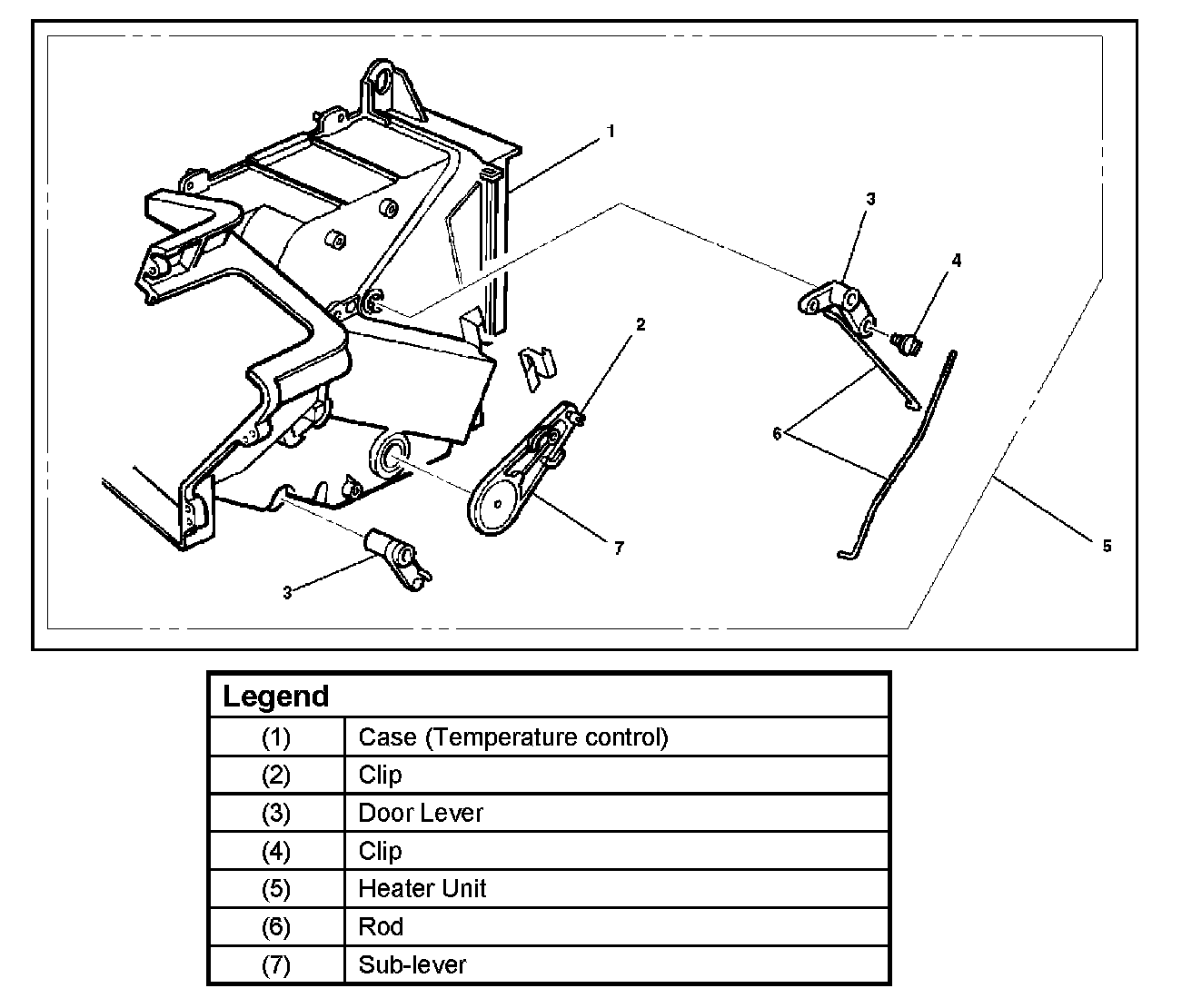

Heater Temperature Control Link Unit - Disassembled View:

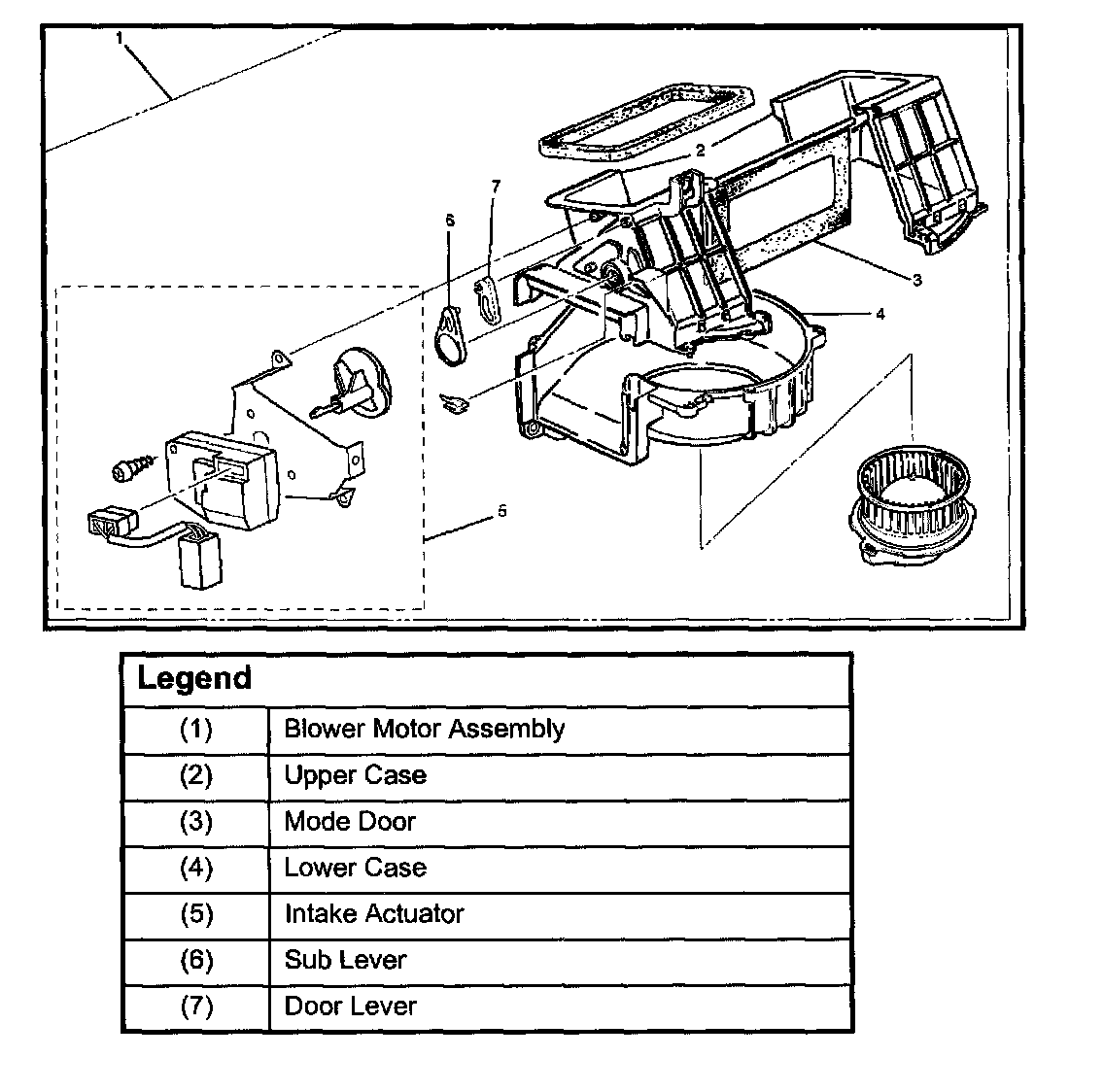

Disassembled View:
