Starting System: Diagrams

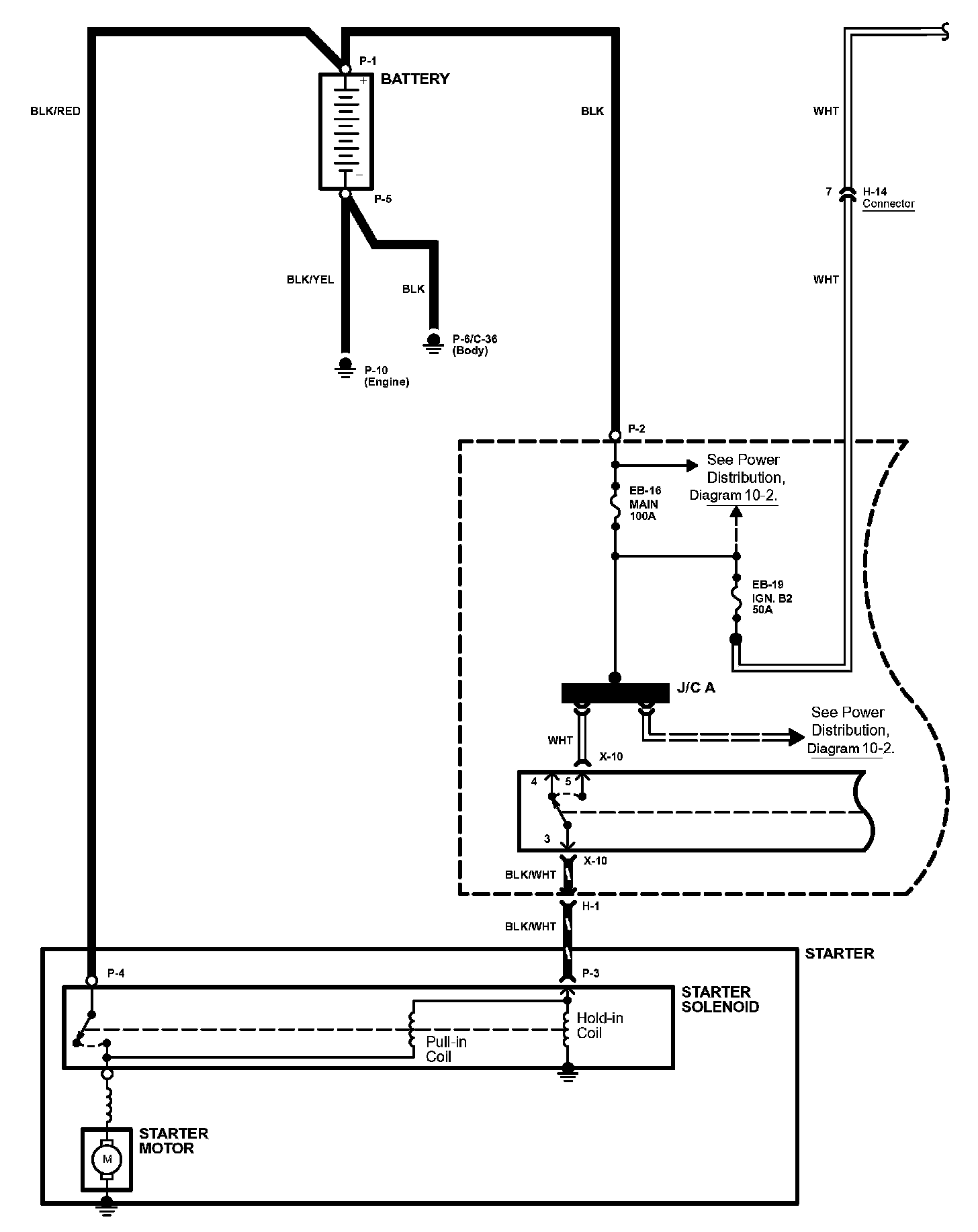

Diagram 21-2:

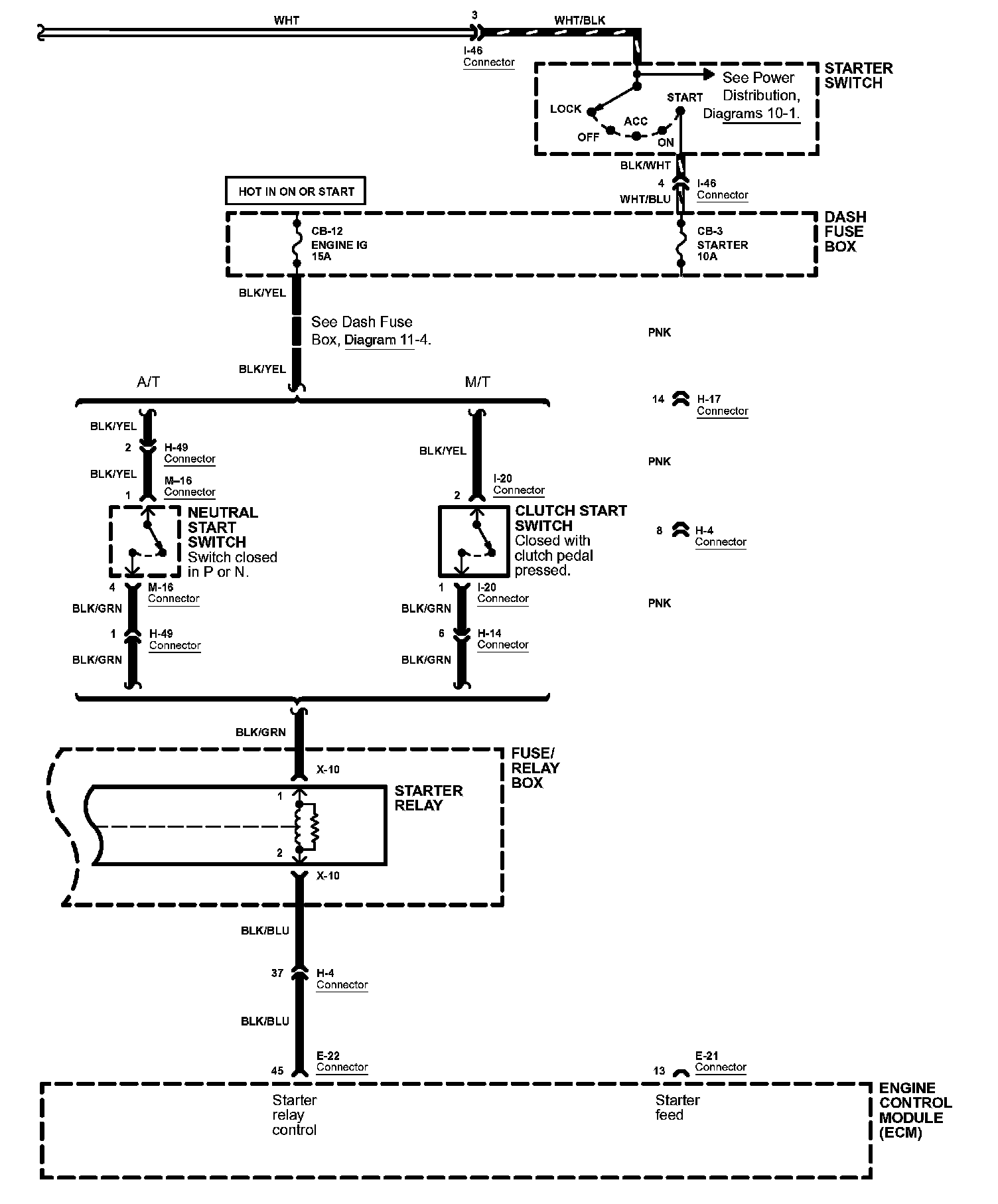

Diagram 21-3:

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number

Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
