Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| Alarm & Relay Control Unit | Behind right side of dash, above right kick panel. |
| Cruise Control Unit | Under rear of center console. |
| Electronic Brake Control Module | On right rear corner of engine compartment. |

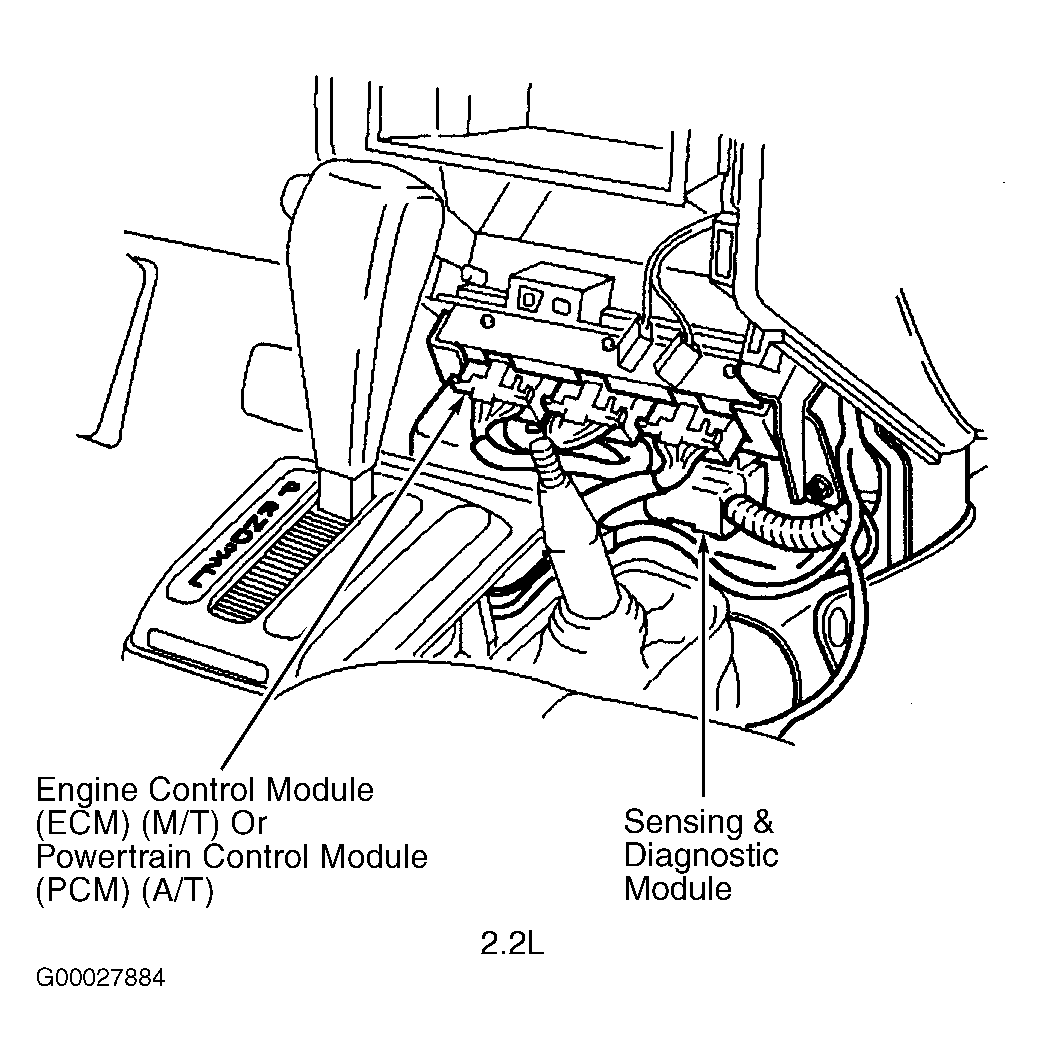

| Engine Control Module (ECM) (M/T) (2.2L) | Below center of dash. See Figure . |
| Engine Control Module (ECM) (M/T) (3.2L) | Left rear of engine compartment. |
| Ignition Control Module | On right rear of engine. |
| Immobilizer Control Unit | Below center of dash. |
| Intelligent Suspension Control Unit | Below center of dash. |
| Ion Sensing Module | On top of intake manifold. |
| Keyless Entry & Anti-Theft Control Unit | Behind right side of dash, above kick panel. |
| Multiplexed Indicator Control Unit | Below rear of center console. |
| Powertrain Control Module (PCM) (A/T) (2.2L) | Below center of dash. See Figure . |
| Powertrain Control Module (PCM) (A/T) (3.2L) | Left rear of engine compartment. |
| Sensing & Diagnostic Module (2.2L) | Below center of dash. See Figure . |
| Sensing & Diagnostic Module (3.2L) | Below center of dash. |
| Sun Roof Control Unit | Center front of roof, behind headliner. |
| Transfer Control Unit | Below center console. |
| Transmission Control Module | Under left side of dash. |
