Rodeo LS, 2.2 D
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Transmission Control System (4L30-E) (HEC2.2L)
>>
General Description
>>
Control System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Diagram

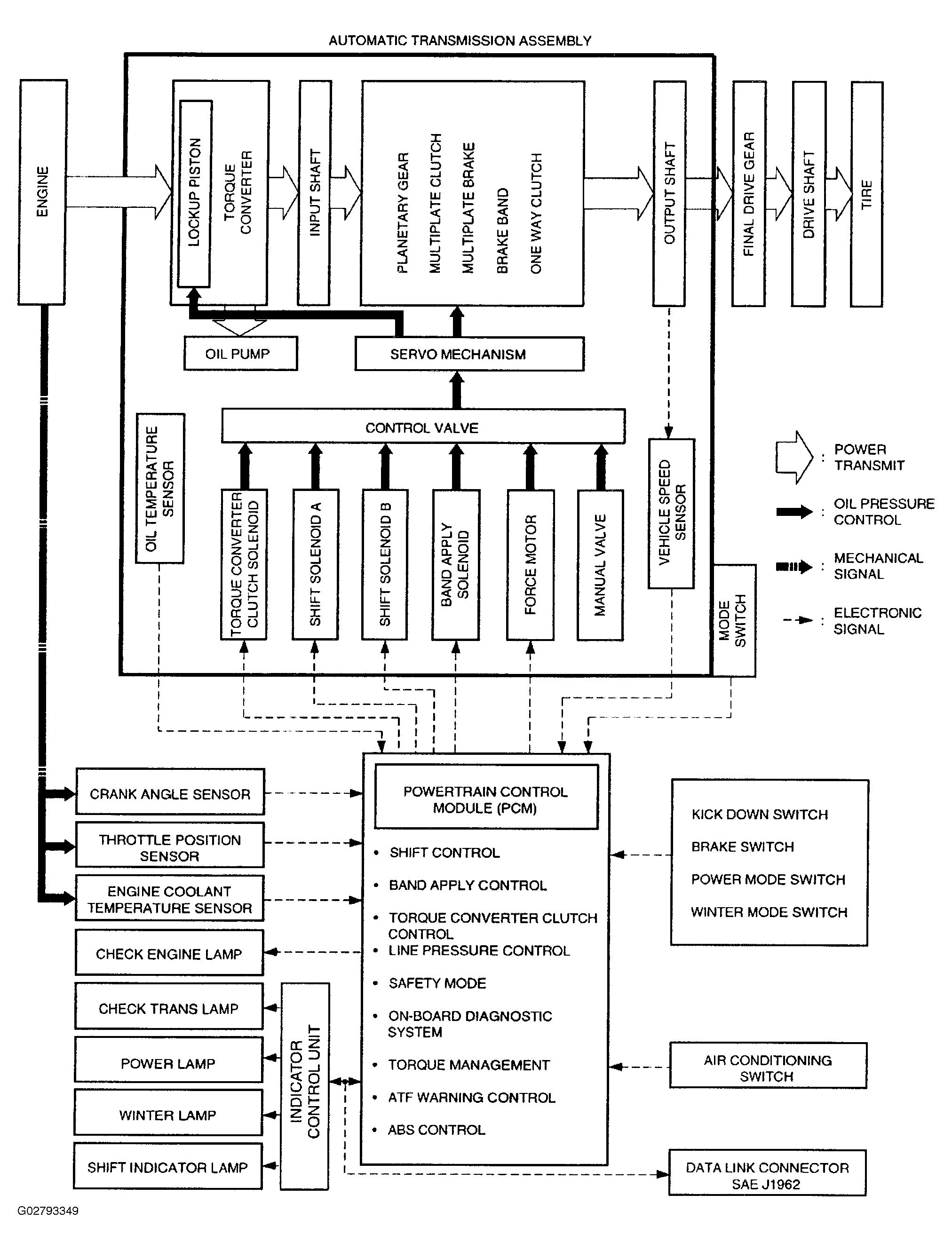

Fig 1: Control System Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
