Shift Mode Control

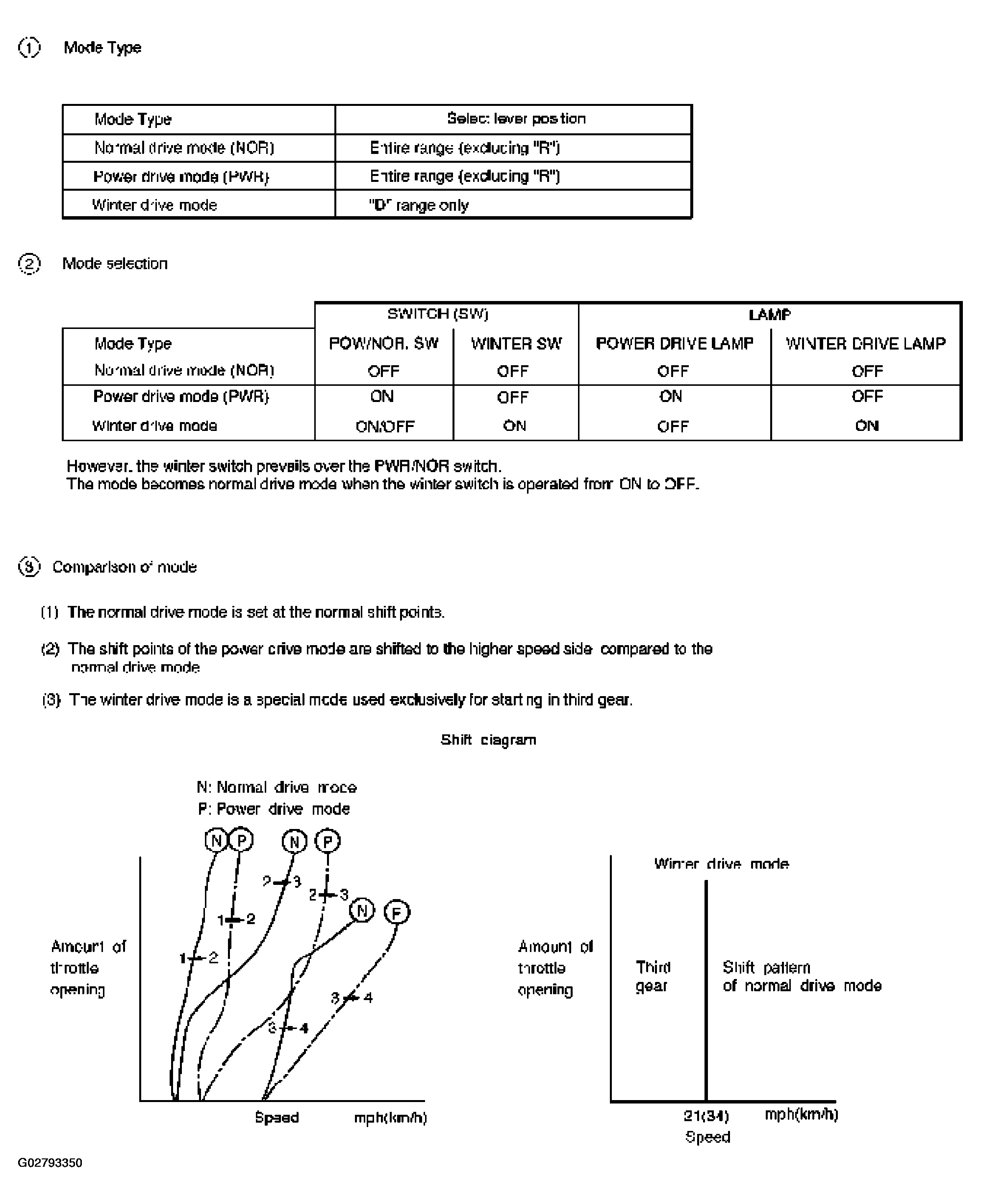

Fig 1: Identifying Shift Mode Control
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
