Operating Procedure

The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure below.

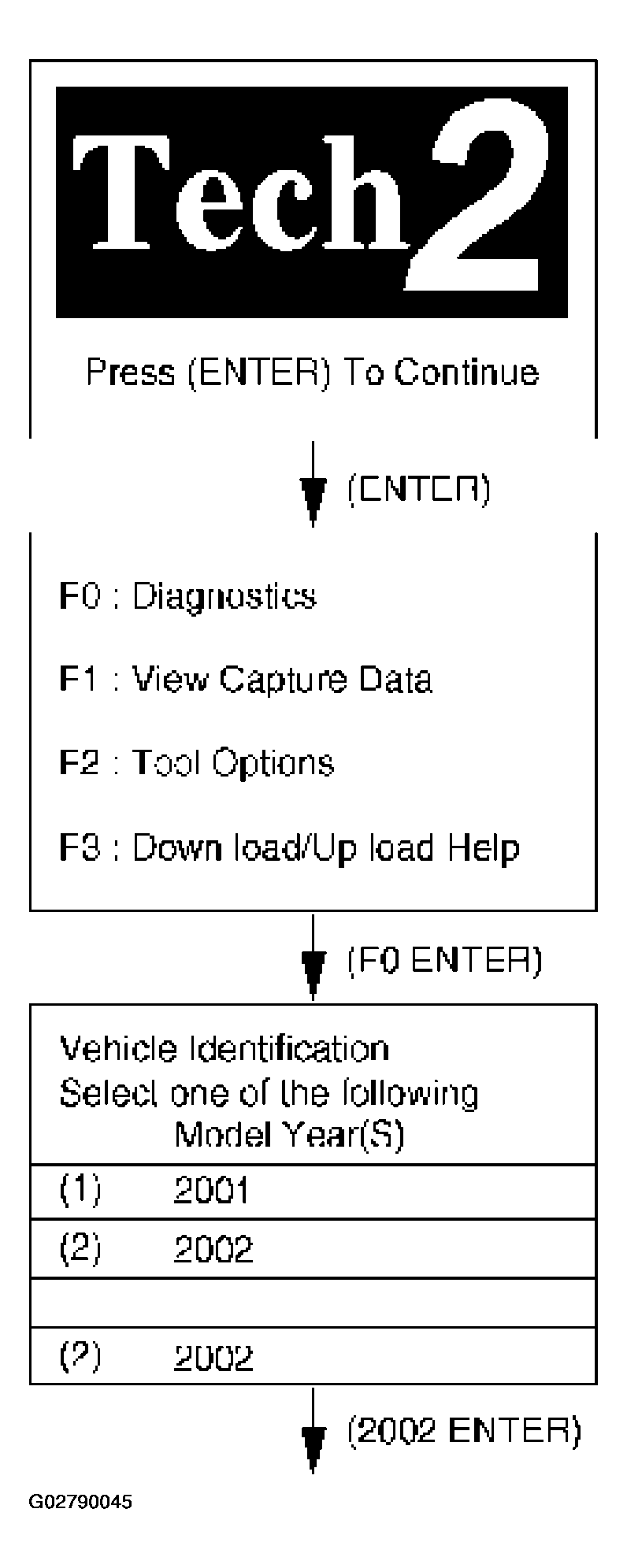

Fig 1: Identifying Display Procedure Of Tech 2 (1 Of 2)
G02790045Courtesy of ISUZU MOTOR CO.

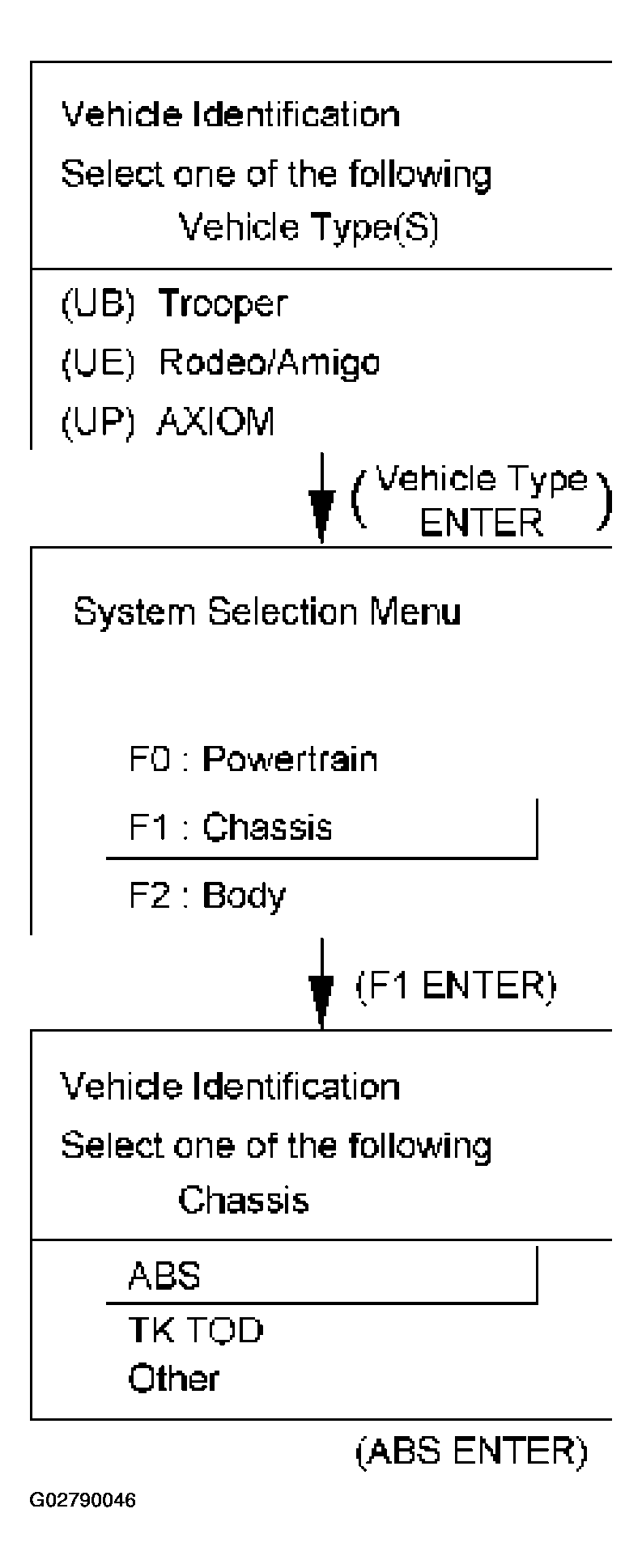

Fig 2: Identifying Display Procedure Of Tech 2 (1 Of 2)
G02790046Courtesy of ISUZU MOTOR CO.
