Component Location

For engine control system component location, see Fig 1 and Fig 2 .

Fig 1: Locating Under-Hood Engine Control System Components

Courtesy of ISUZU MOTOR CO.

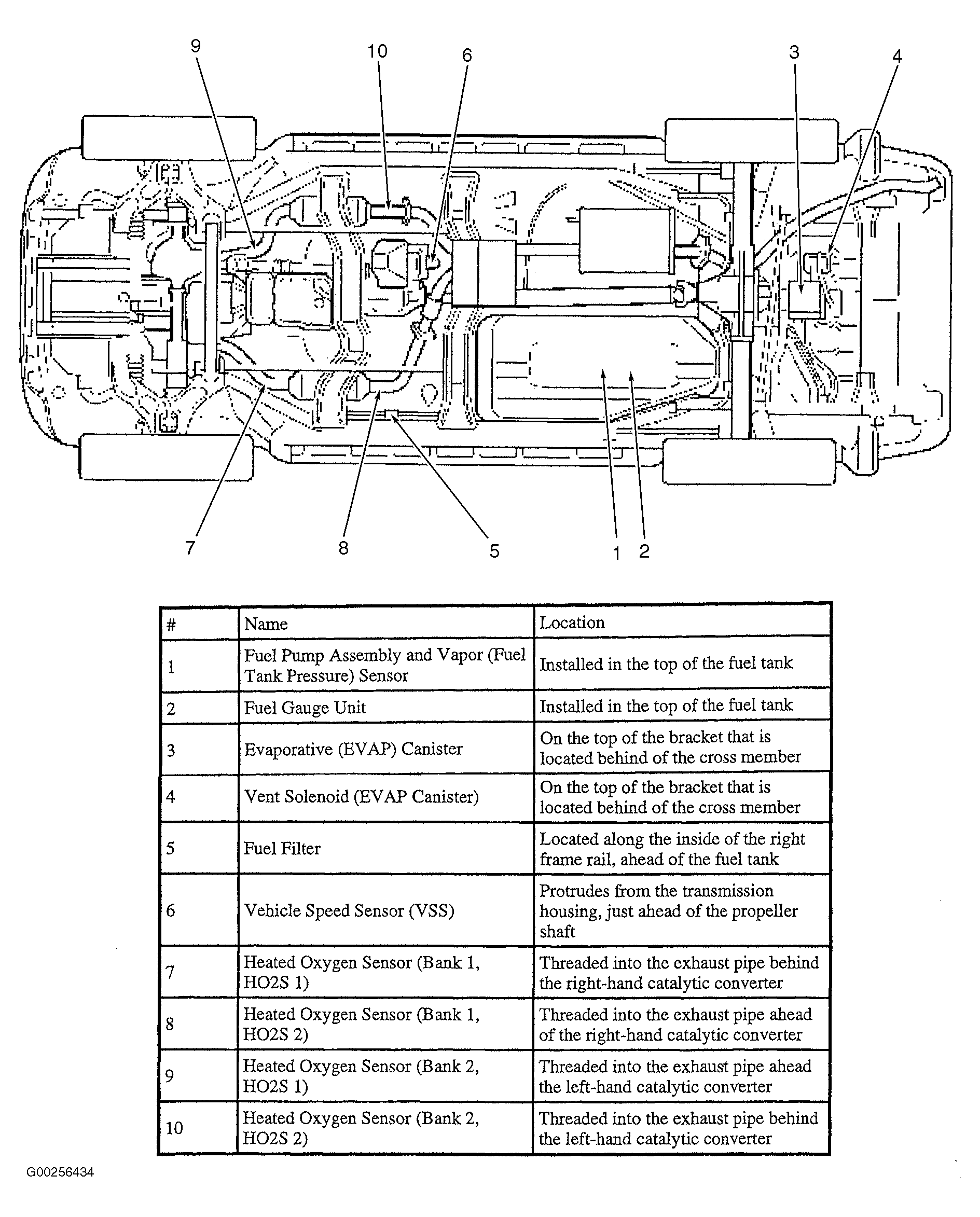

Fig 2: Locating Under-Car Engine Control System Components

Courtesy of ISUZU MOTOR CO.
