Engine Controls - Self-Diagnostics - 3.2L
>>
Engine Control Module
>>
Engine Control Module Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Control Module Location

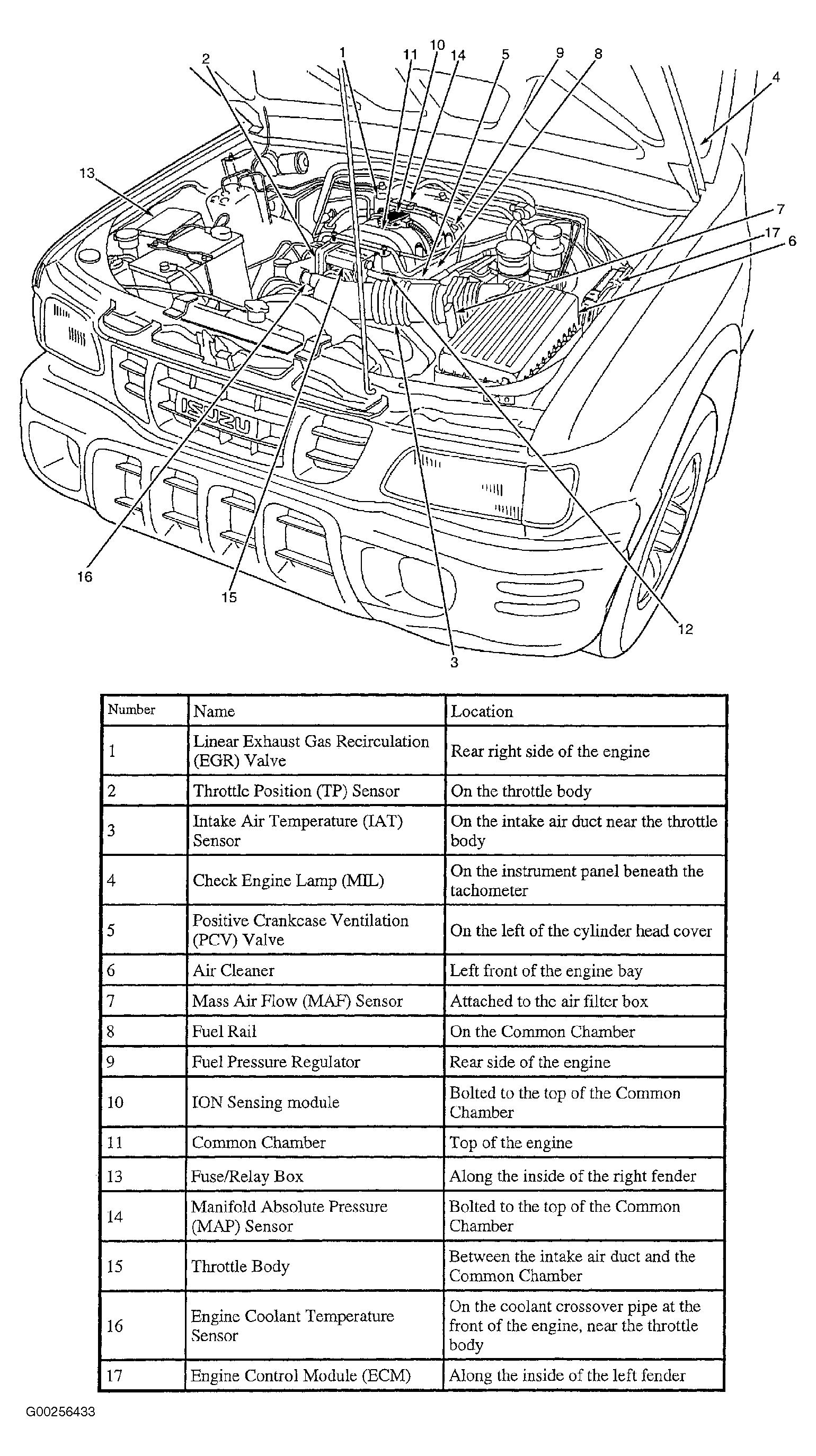

ECM is located at left rear of engine compartment, near air filter housing. See
Figure
.
