Data Link Connector Location

Data Link Connector (DLC) is located at lower left side of instrument panel, behind a small cover. See Fig 1 and Fig 2 .

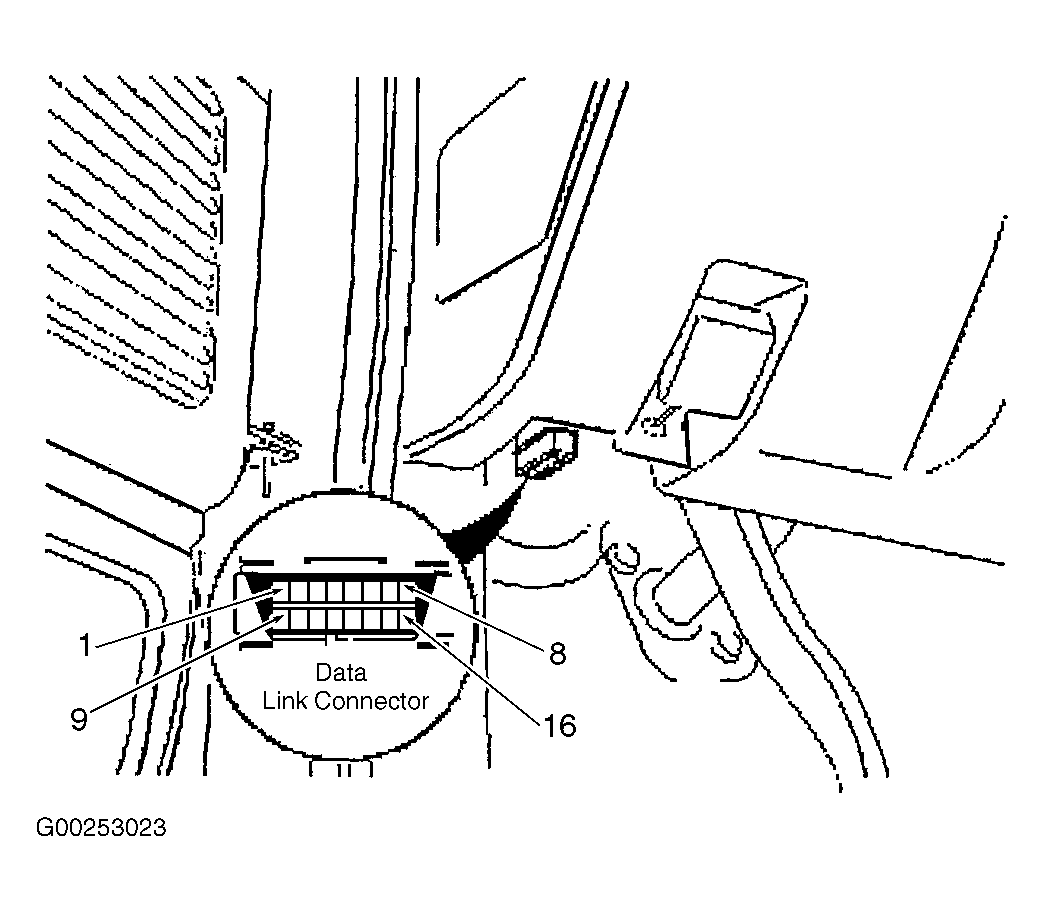

Fig 1: Locating Data Link Connector

Courtesy of ISUZU MOTOR CO.

Fig 2: Identifying Data Link Connector

Courtesy of ISUZU MOTOR CO.
