Transfer Gear Assembly and Associated Parts

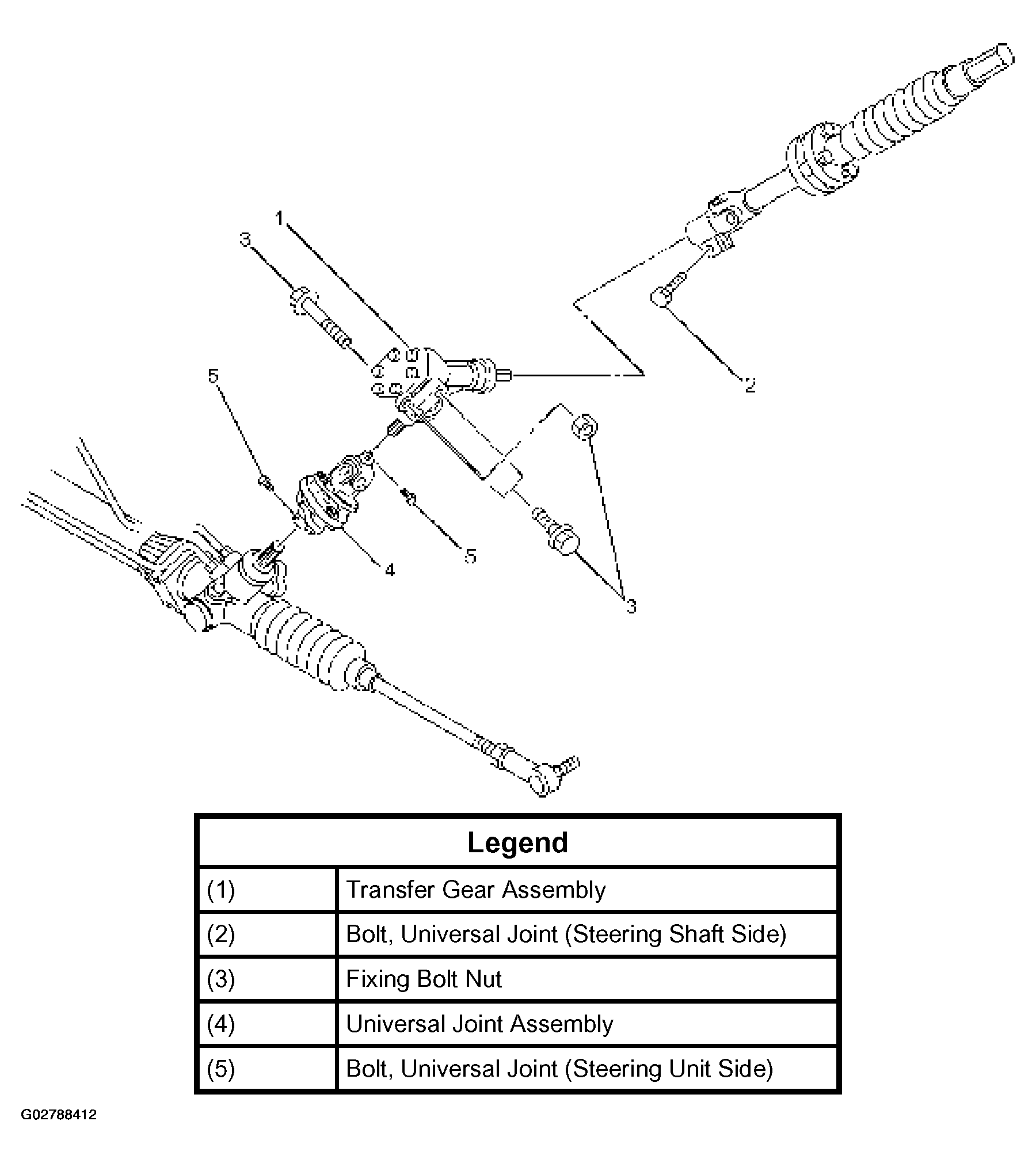

Fig 1: Identifying Transfer Gear Assembly & Associated Parts
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
