Steering Column and Associated Parts

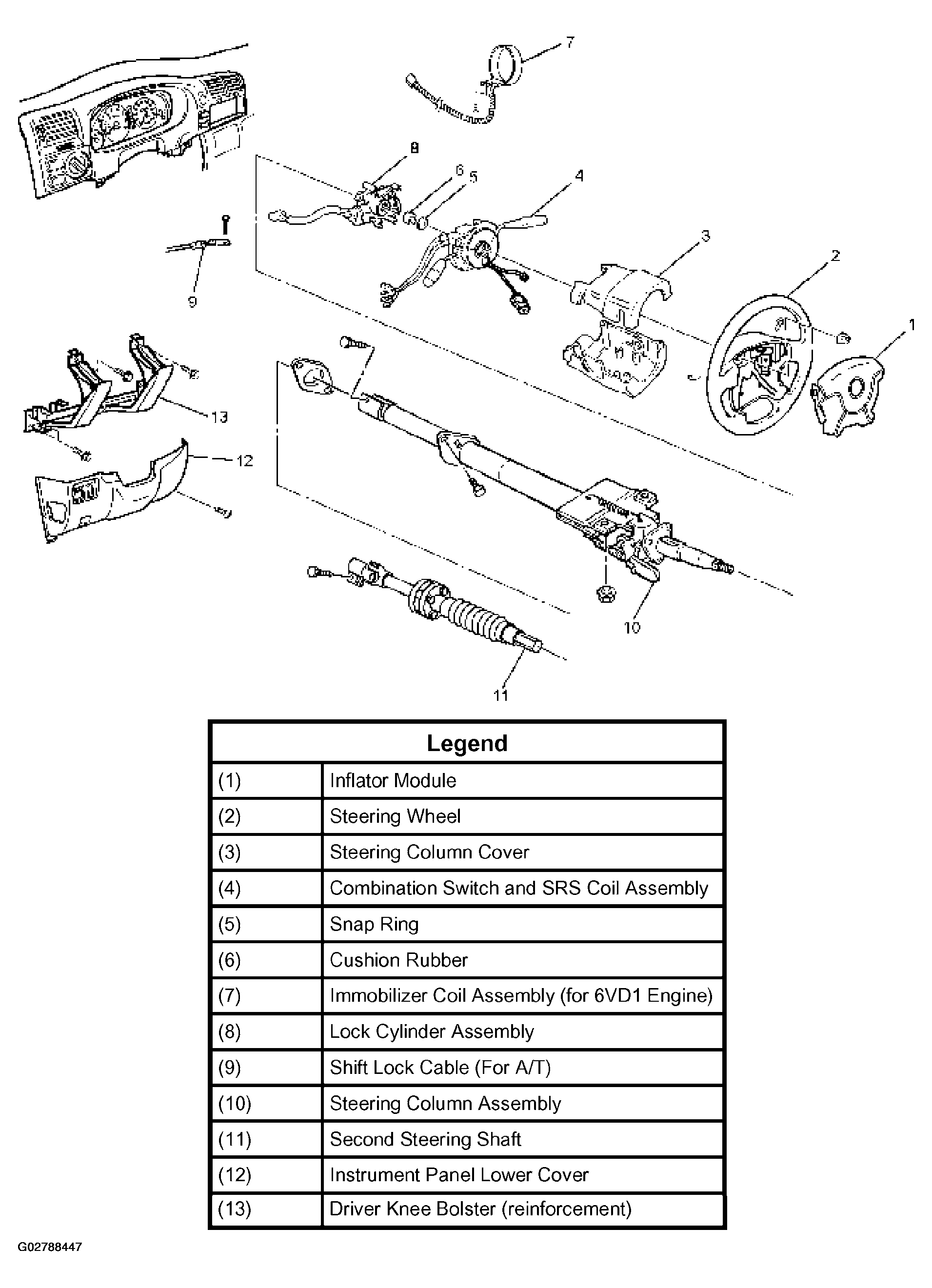

Fig 1: Identifying Steering Column & Associated Parts
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
