Door Control Module System

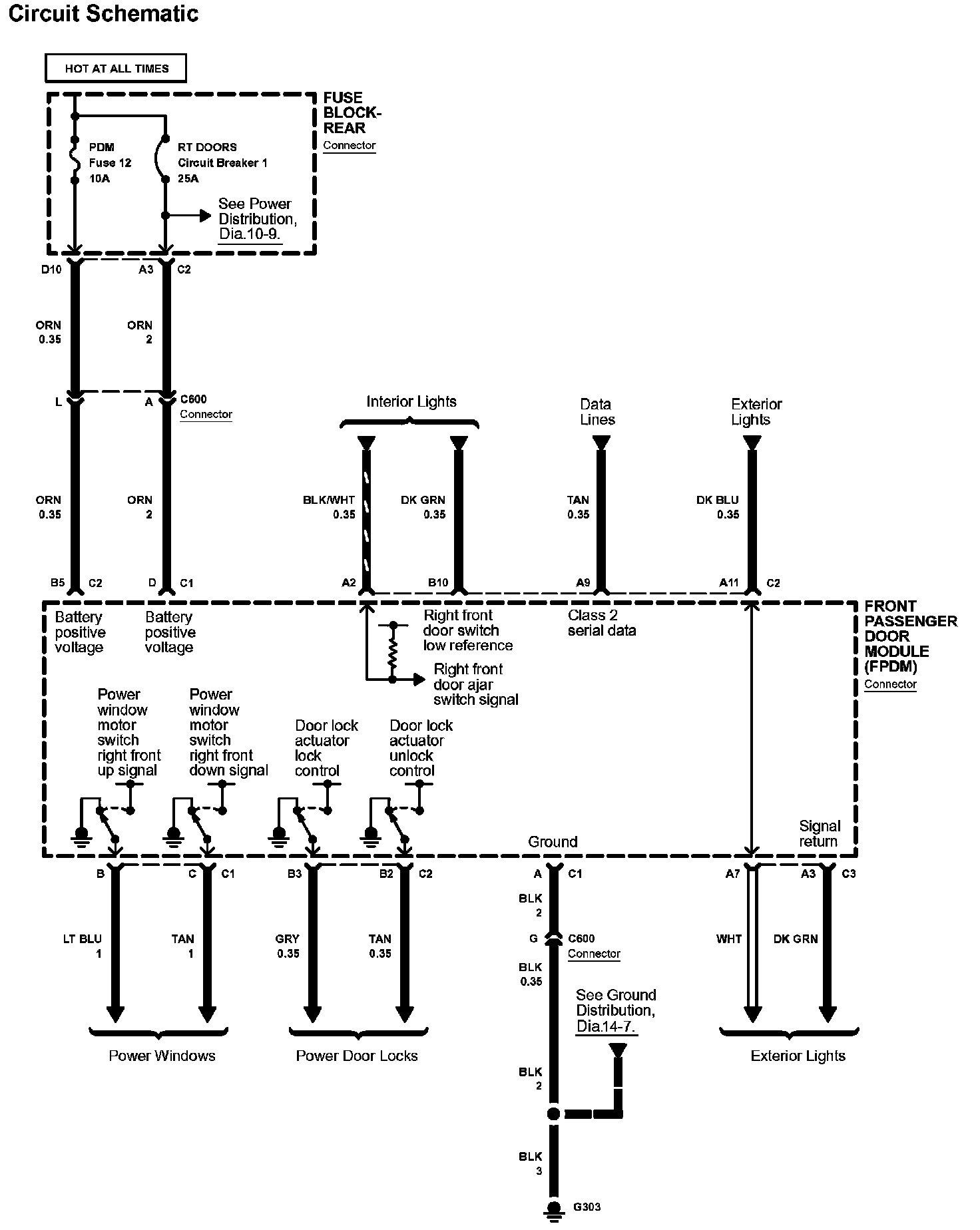

Diagram 52-0:

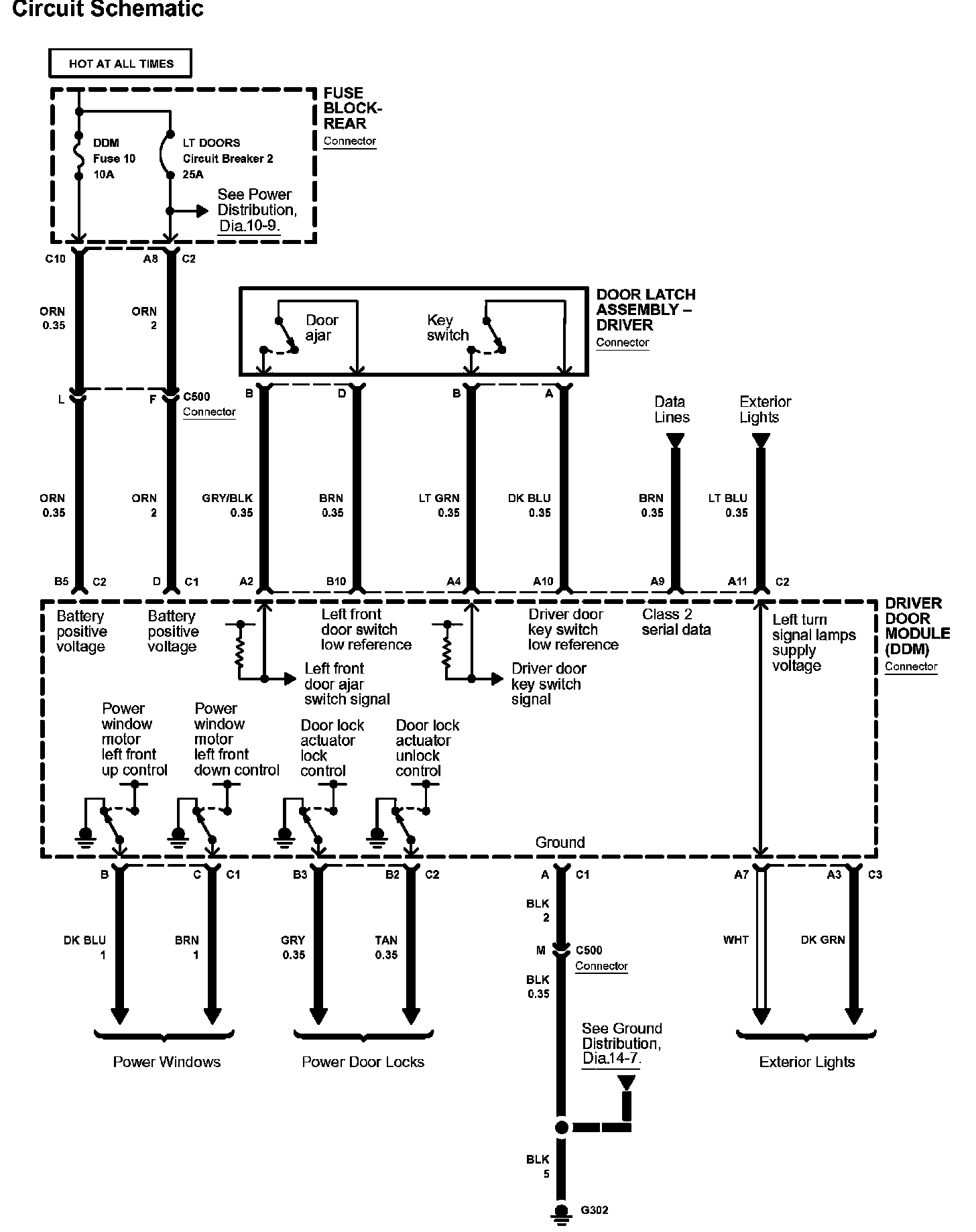

Diagram 52-1:

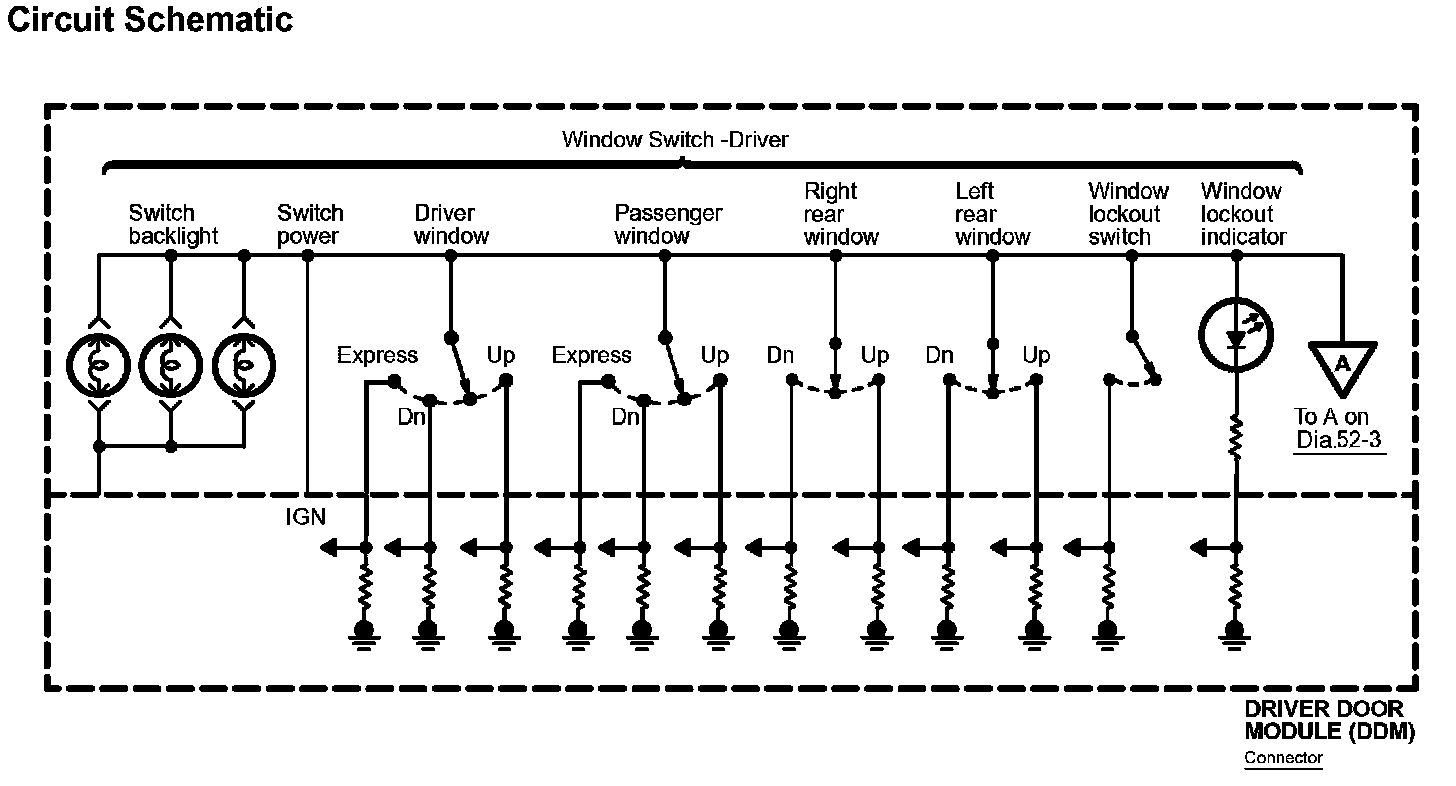

Diagram 52-2:

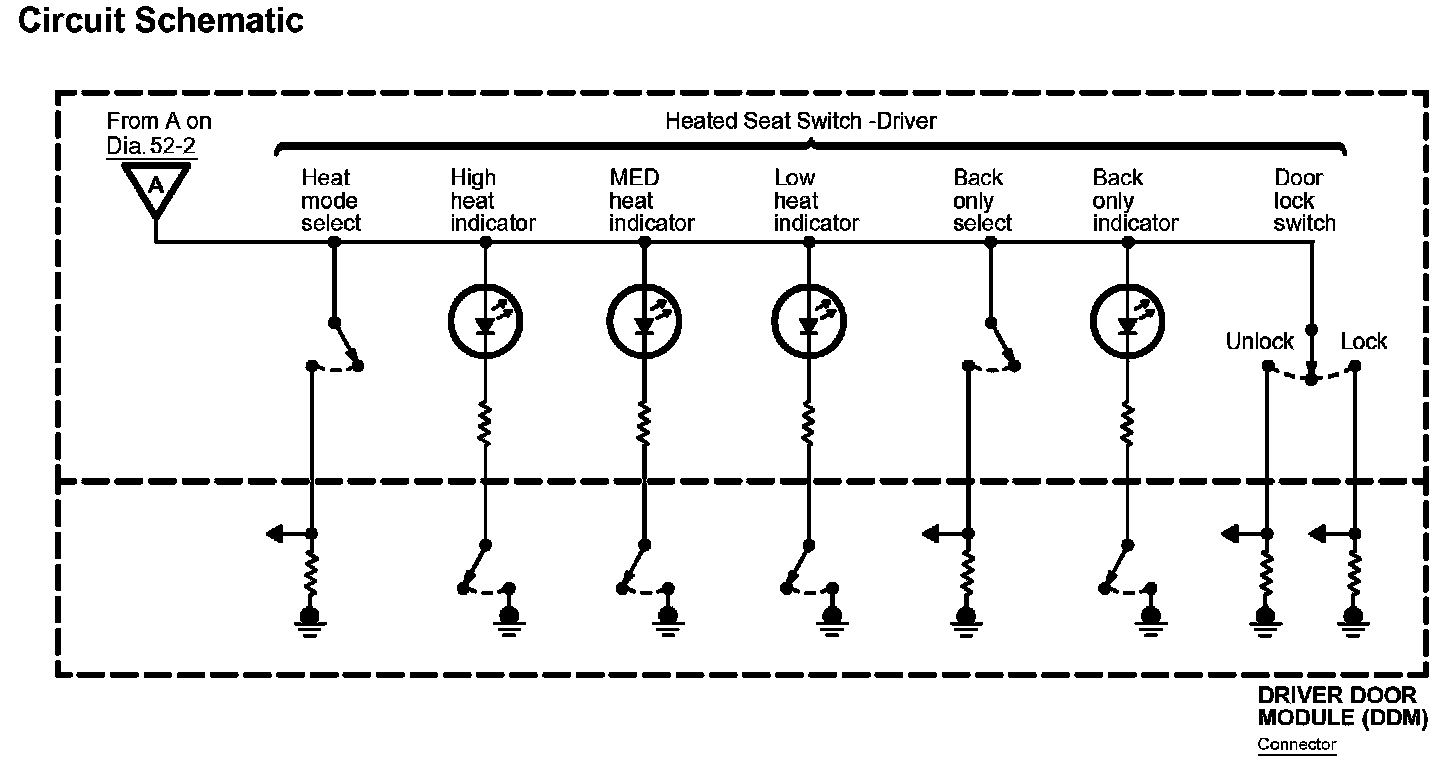

Diagram 52-3:

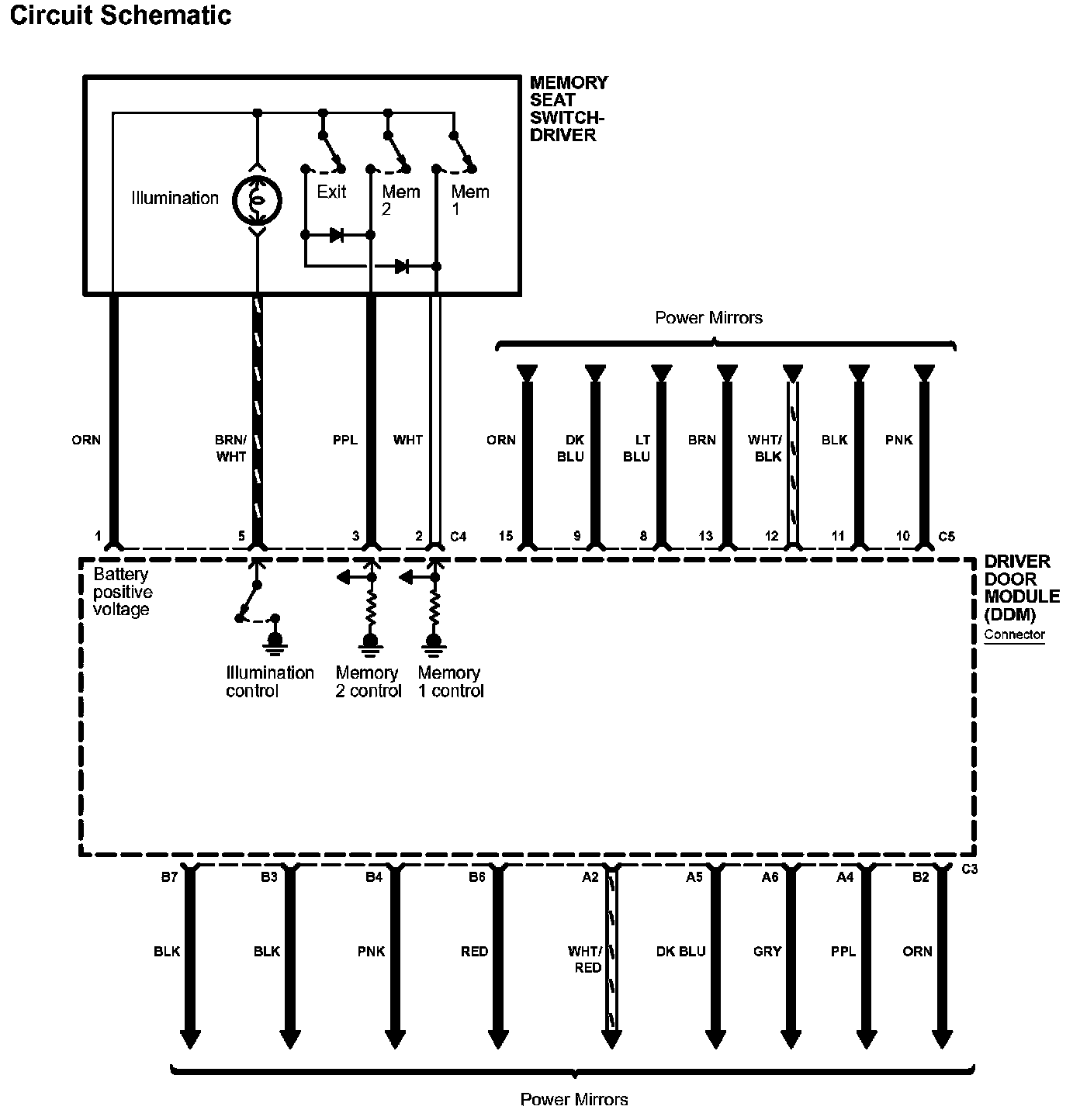

Diagram 52-4:

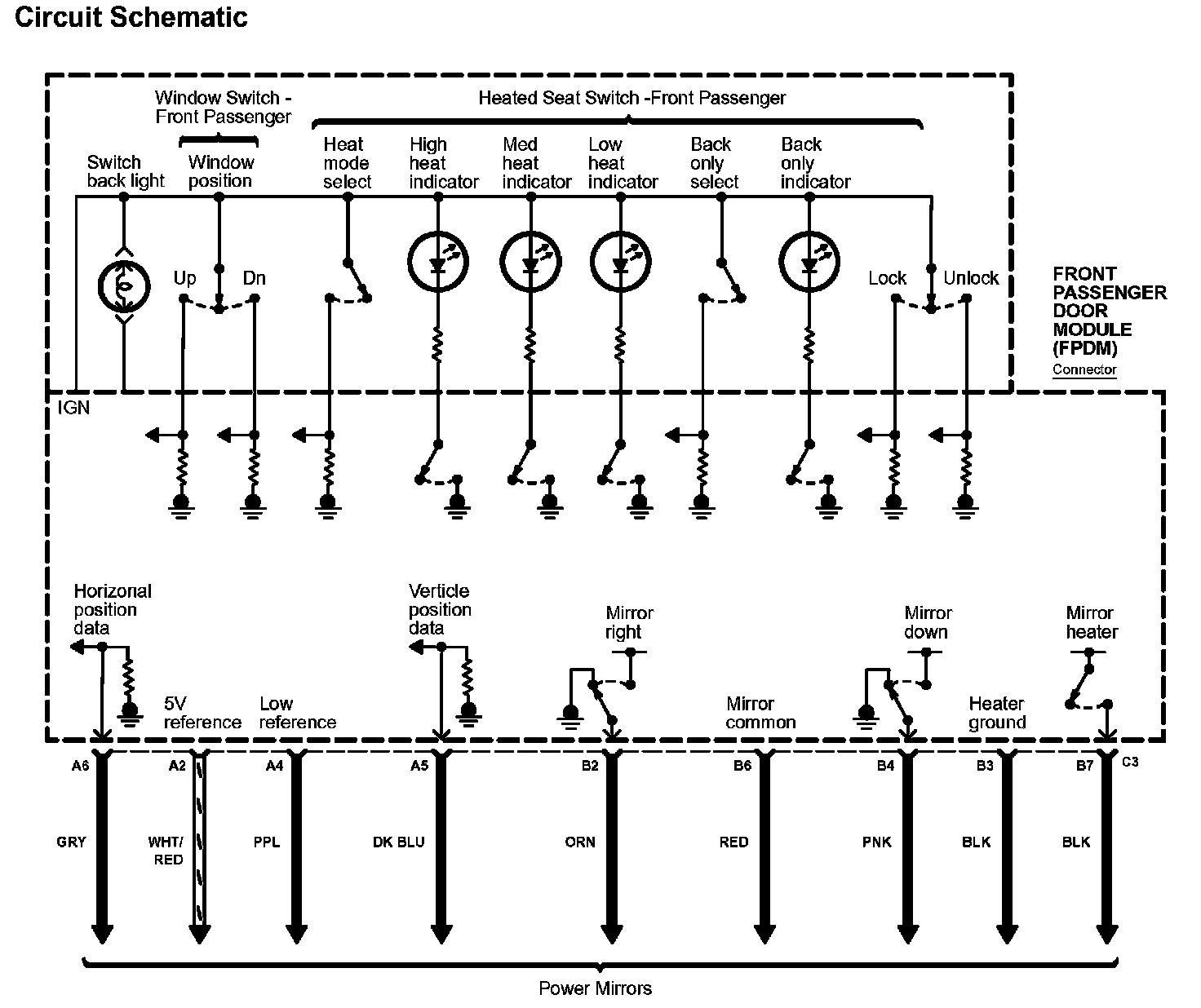

Diagram 52-5:
