Drive/Propeller Shaft
Driveline Disassembled Views

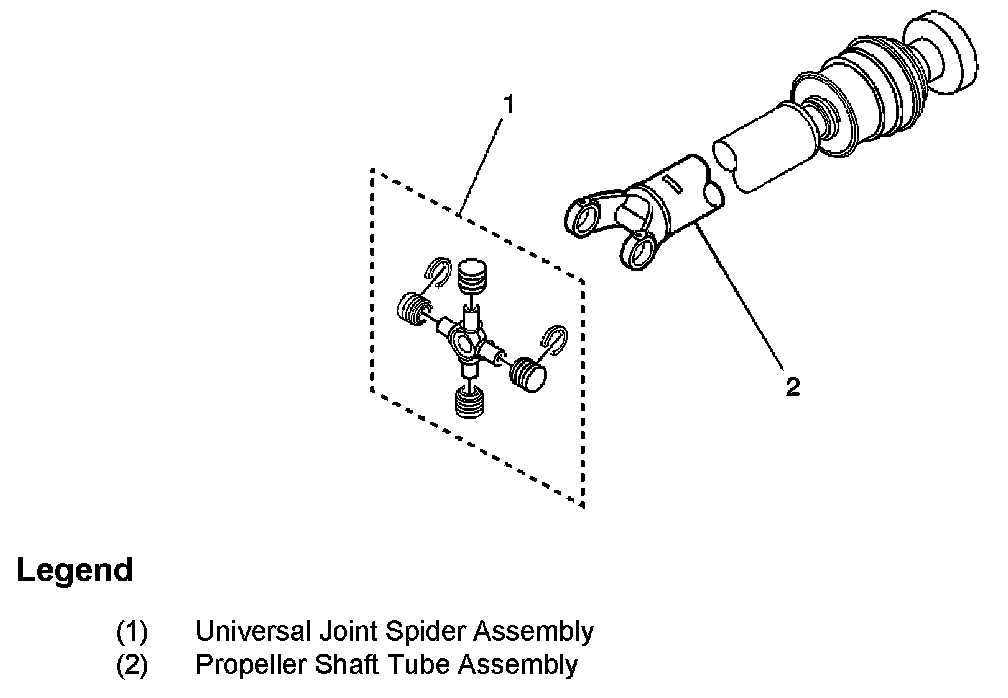

Front Drive Propeller Shaft:

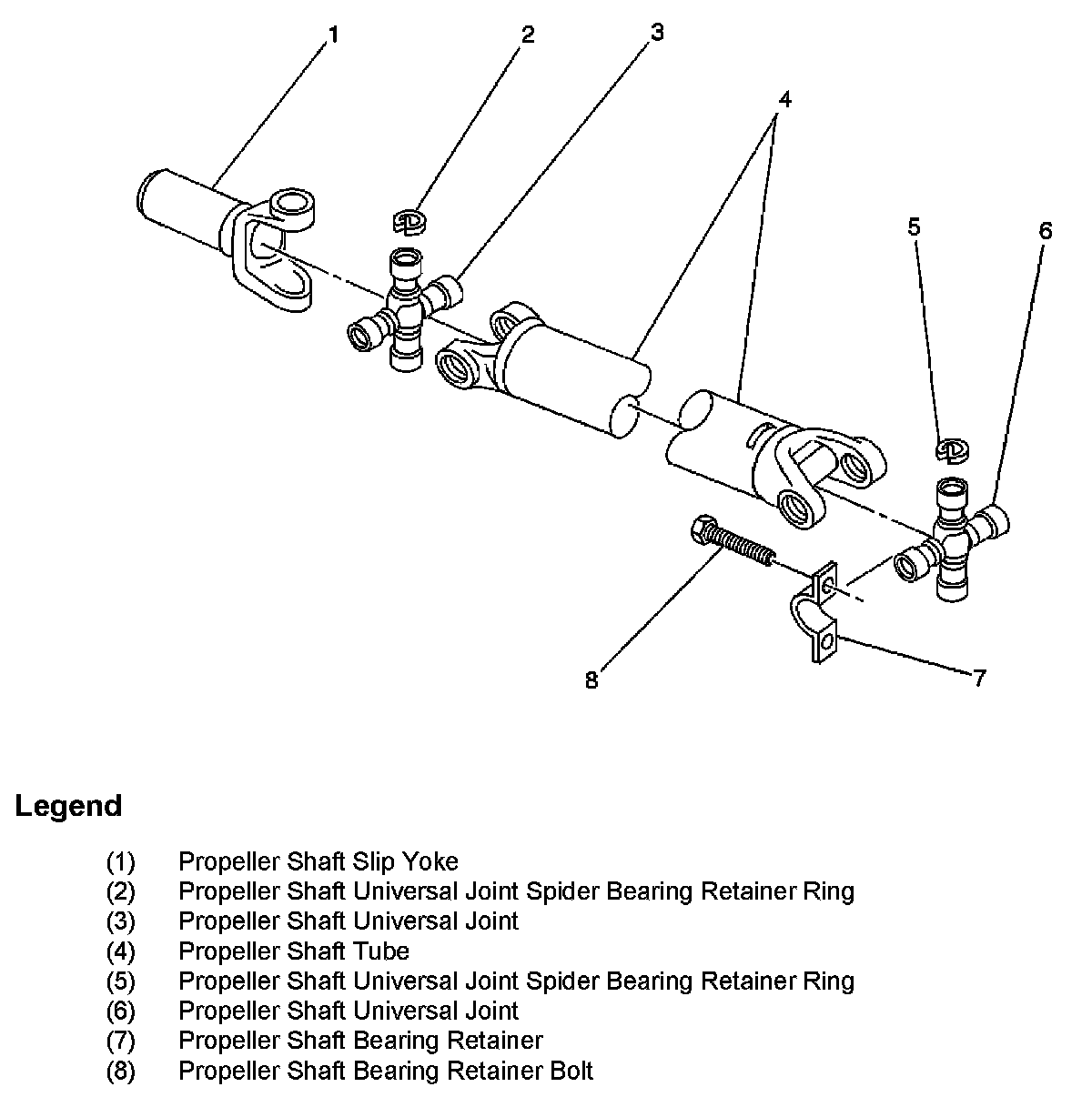

One-Piece Propeller Shaft:
