Timing Chain and Components

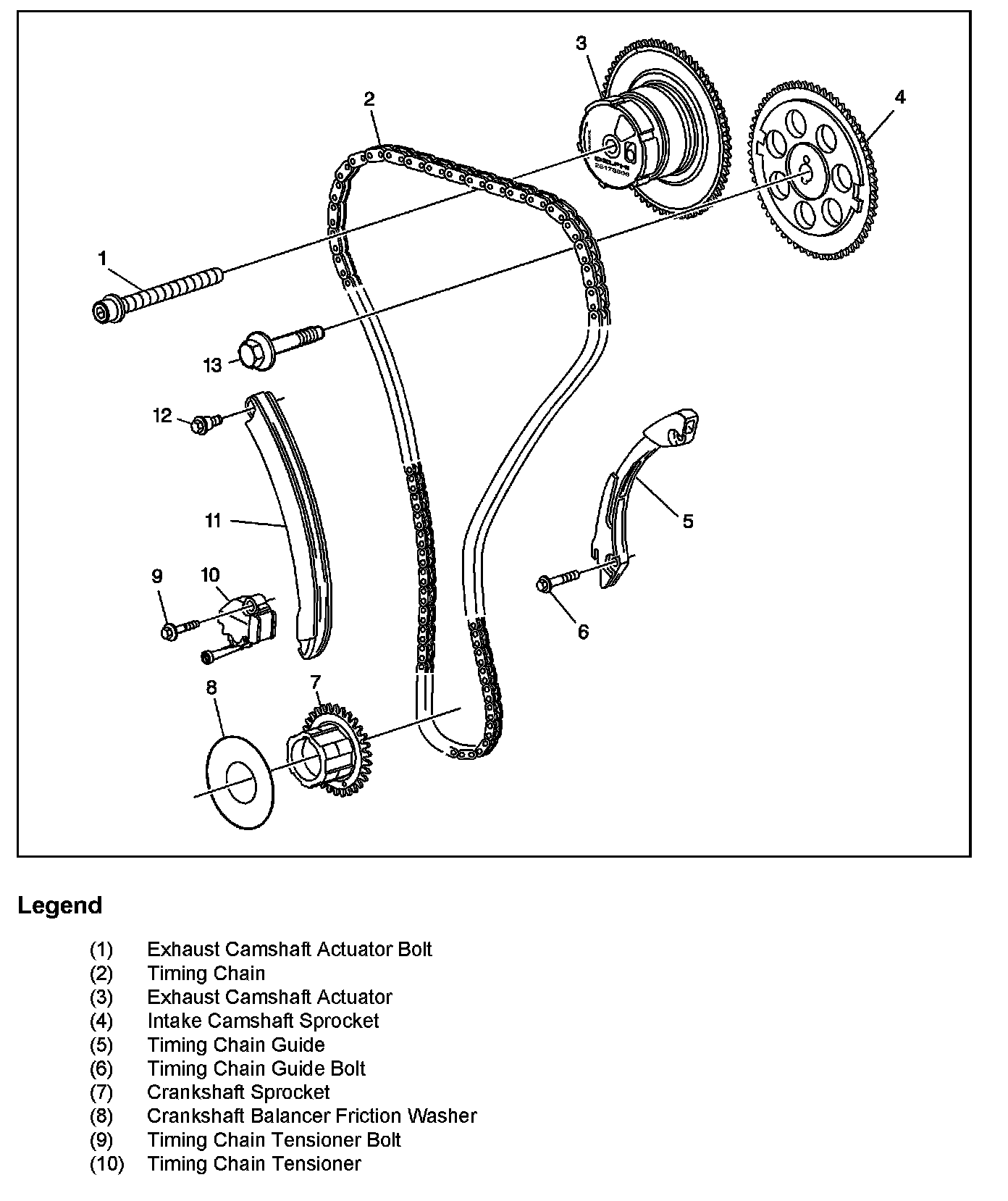

Timing Chain and Components (1 Of 2):

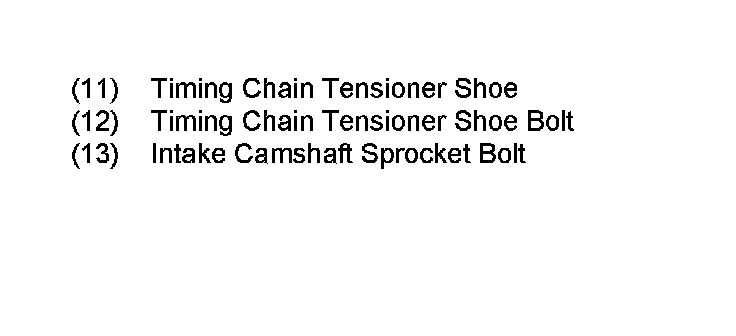

Timing Chain and Components (2 Of 2):
