Control Module HVAC: Diagrams

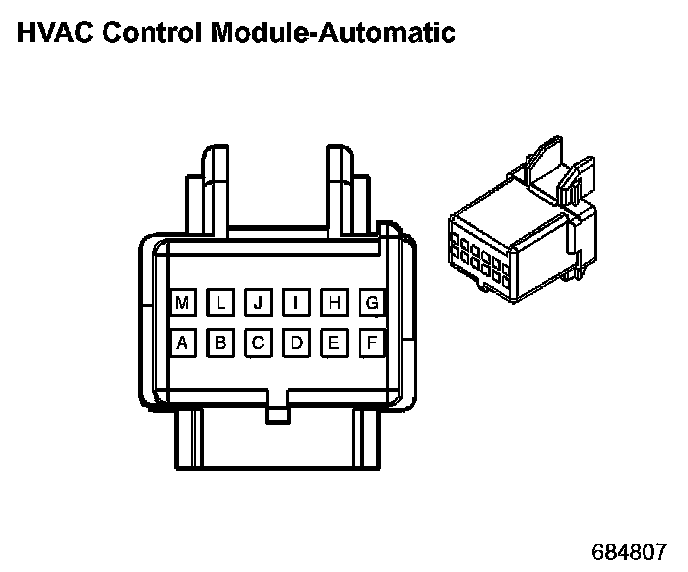

HVAC Control Module - Automatic:

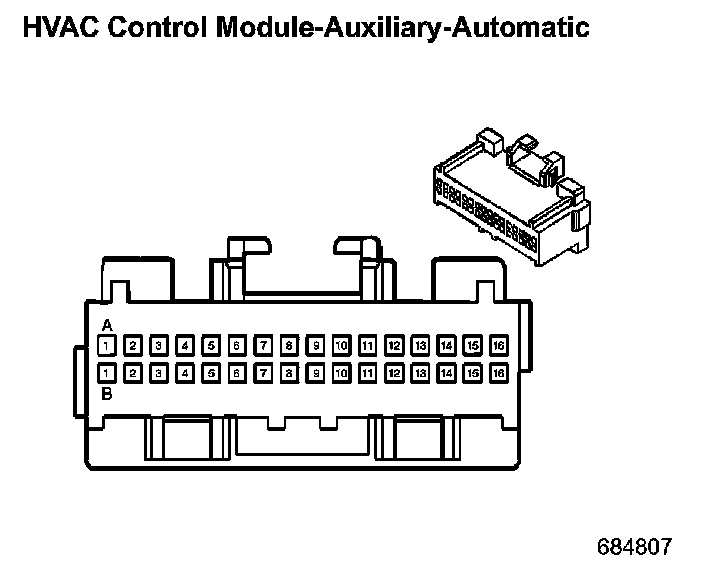

HVAC Control Module - Auxiliary Automatic:

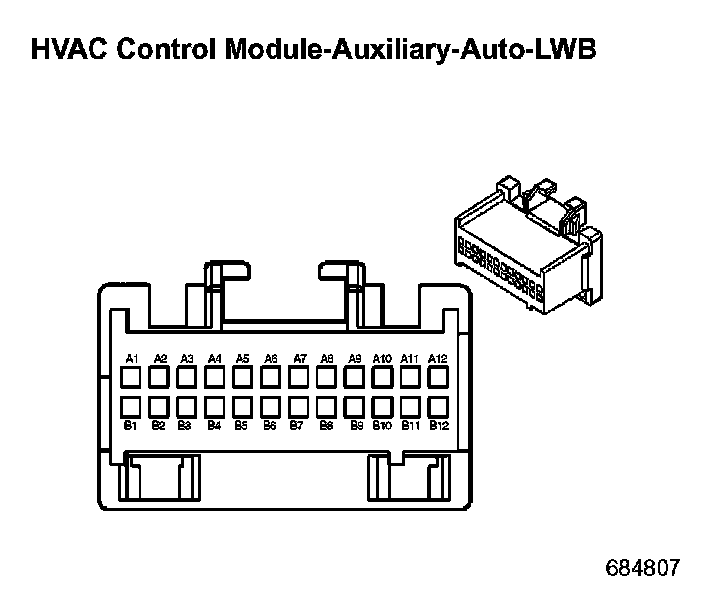

HVAC Control Module - Auxiliary - Auto LWB:

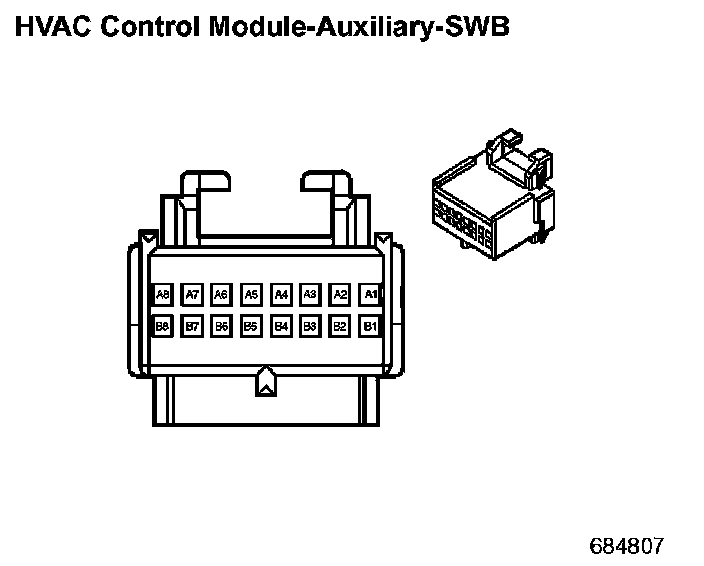

HVAC Control Module - Auxiliary - SWB:

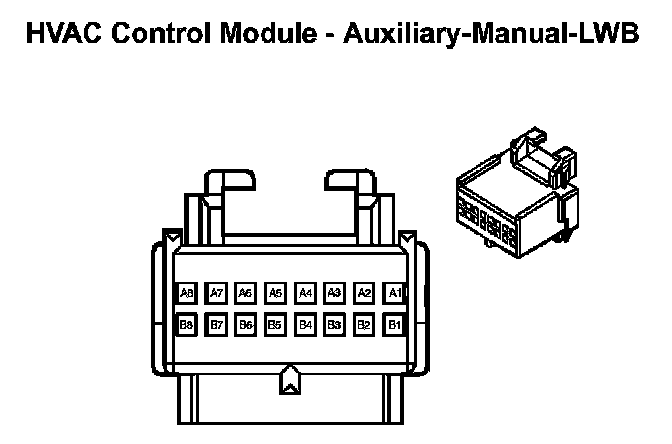

HVAC Control Module - Auxiliary - Manual - LWB:

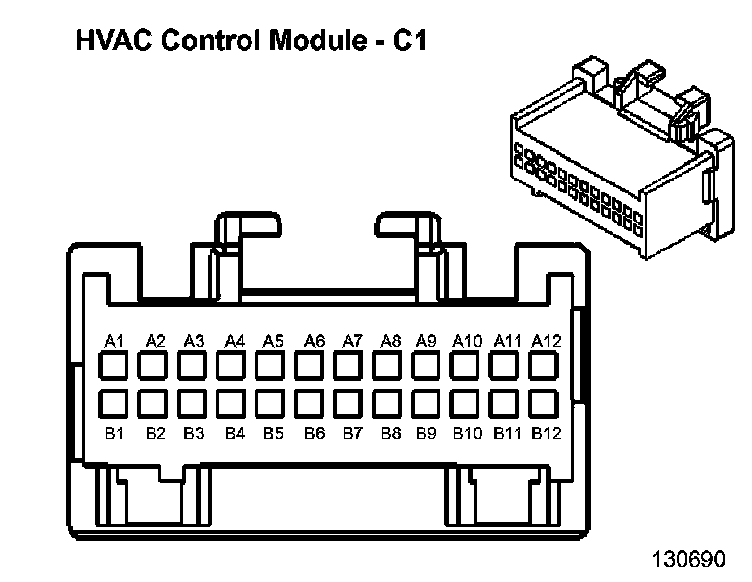

HVAC Control Module - C1:

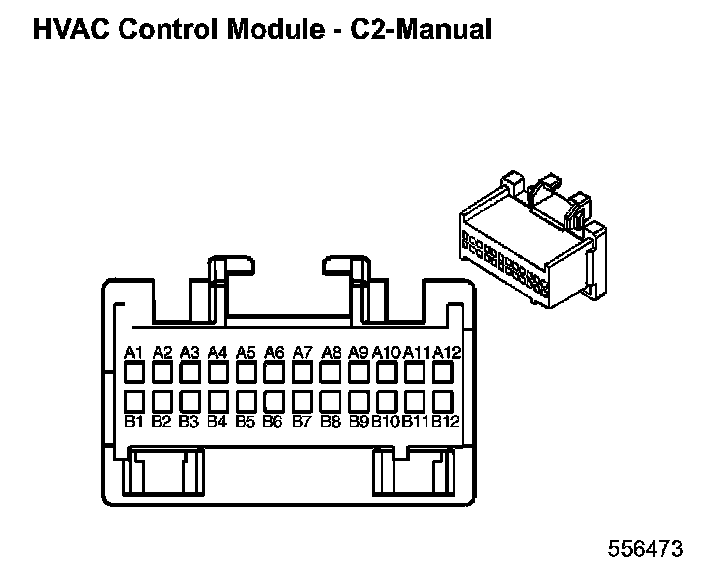

HVAC Control Module - C2 - Manual:

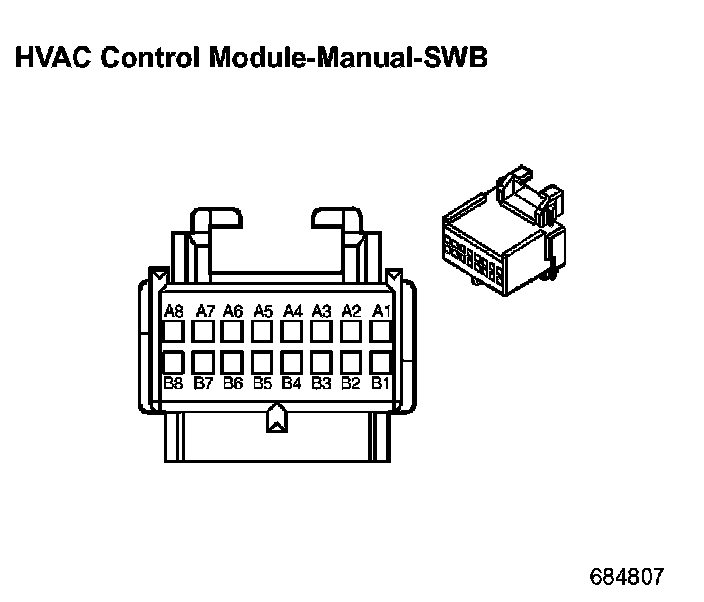

HVAC Control Module - Manual - SWB:

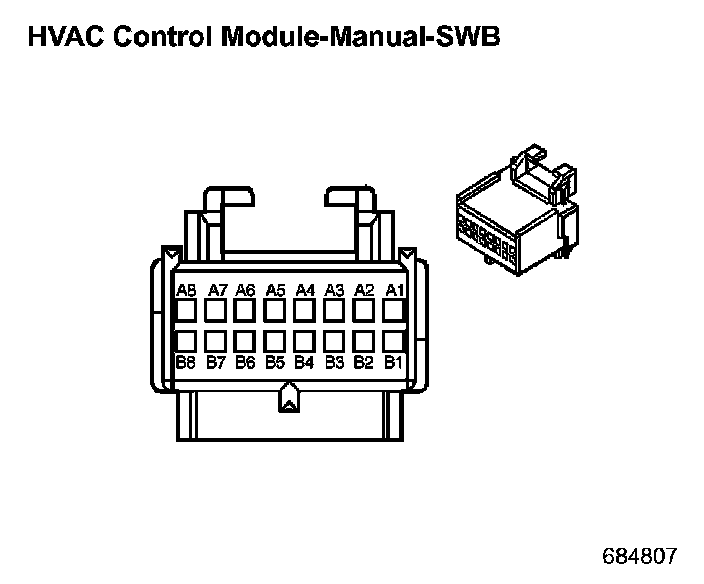

HVAC Control Module - Manual - SWB:

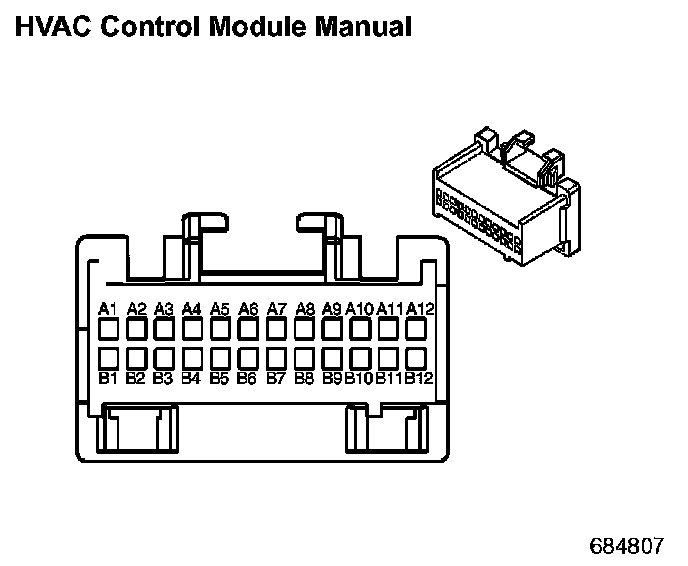

HVAC Control Module Manual:
