Accelerator Pedal Position Sensor: Locations

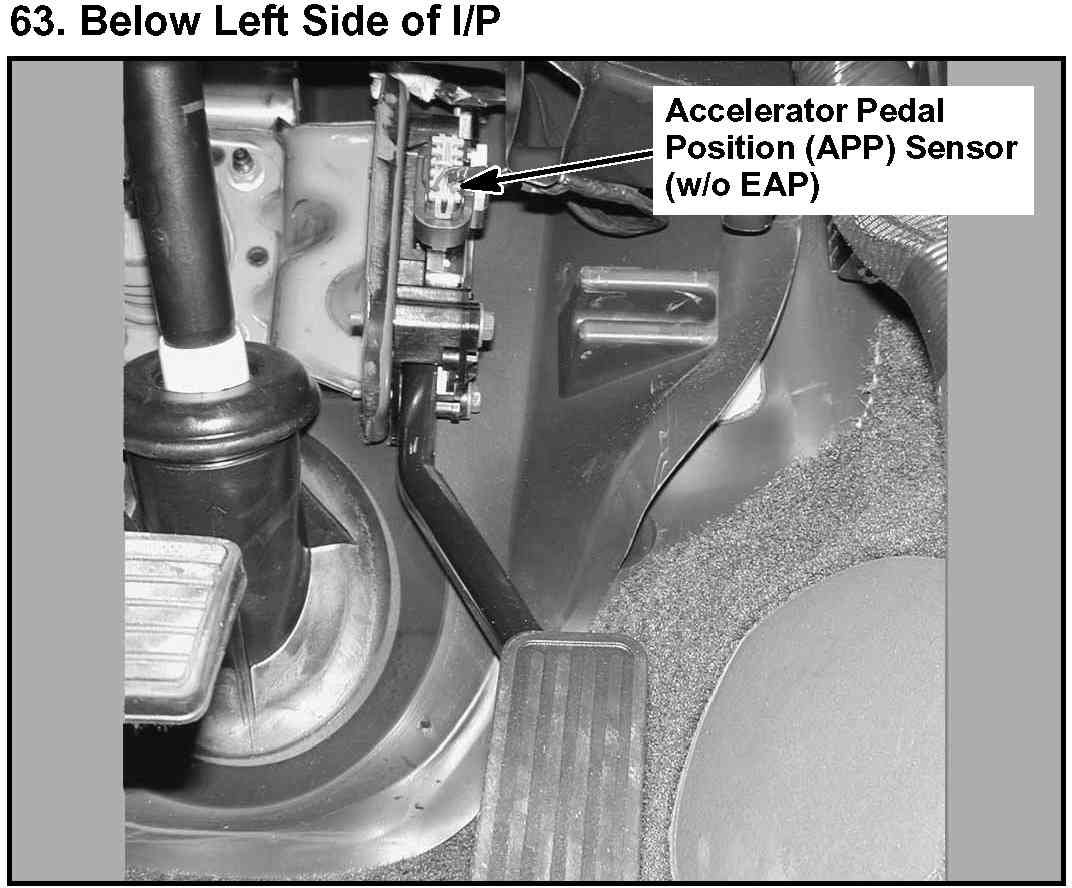

63. Below Left Side Of I/P:

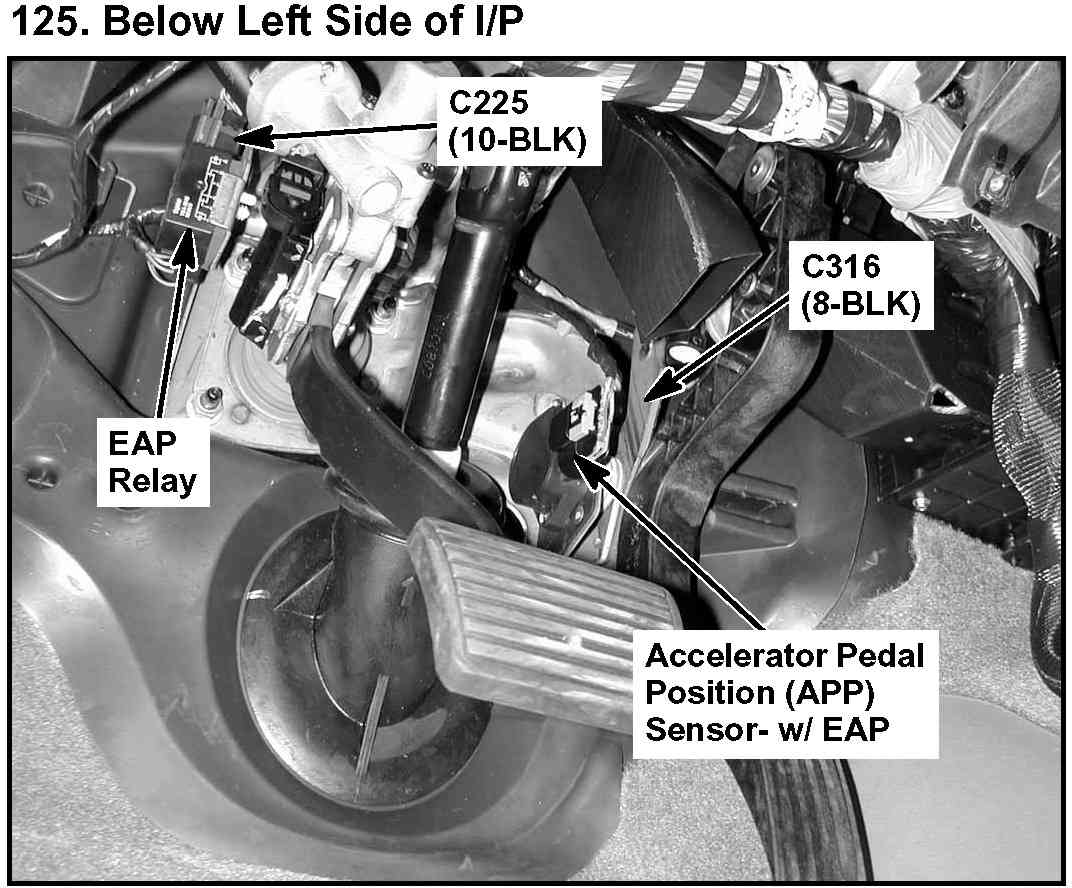

125. Below Left Side Of I/P:
