Splice Locations

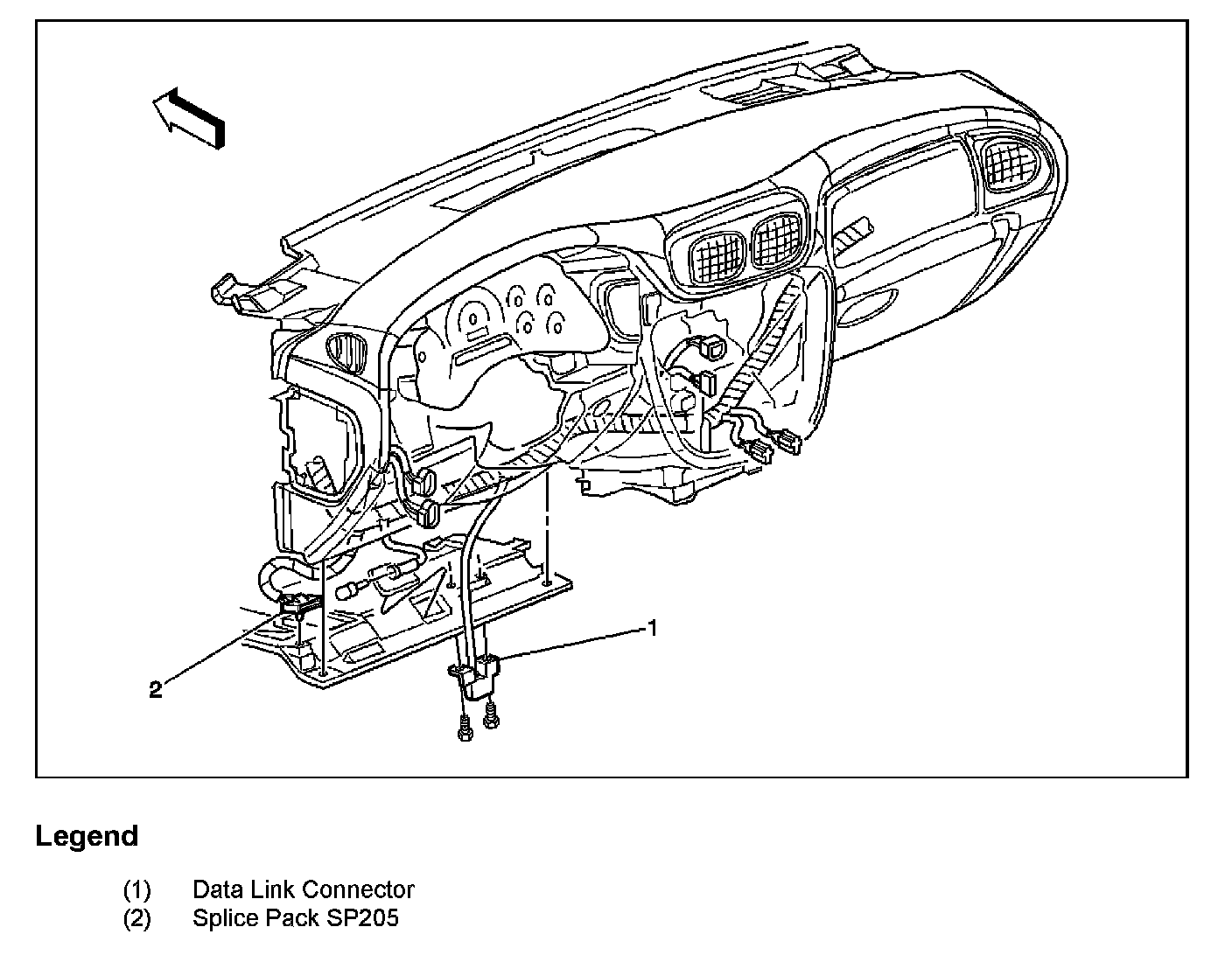

Data Link Connector (DLC) And Splice Pack SP205:

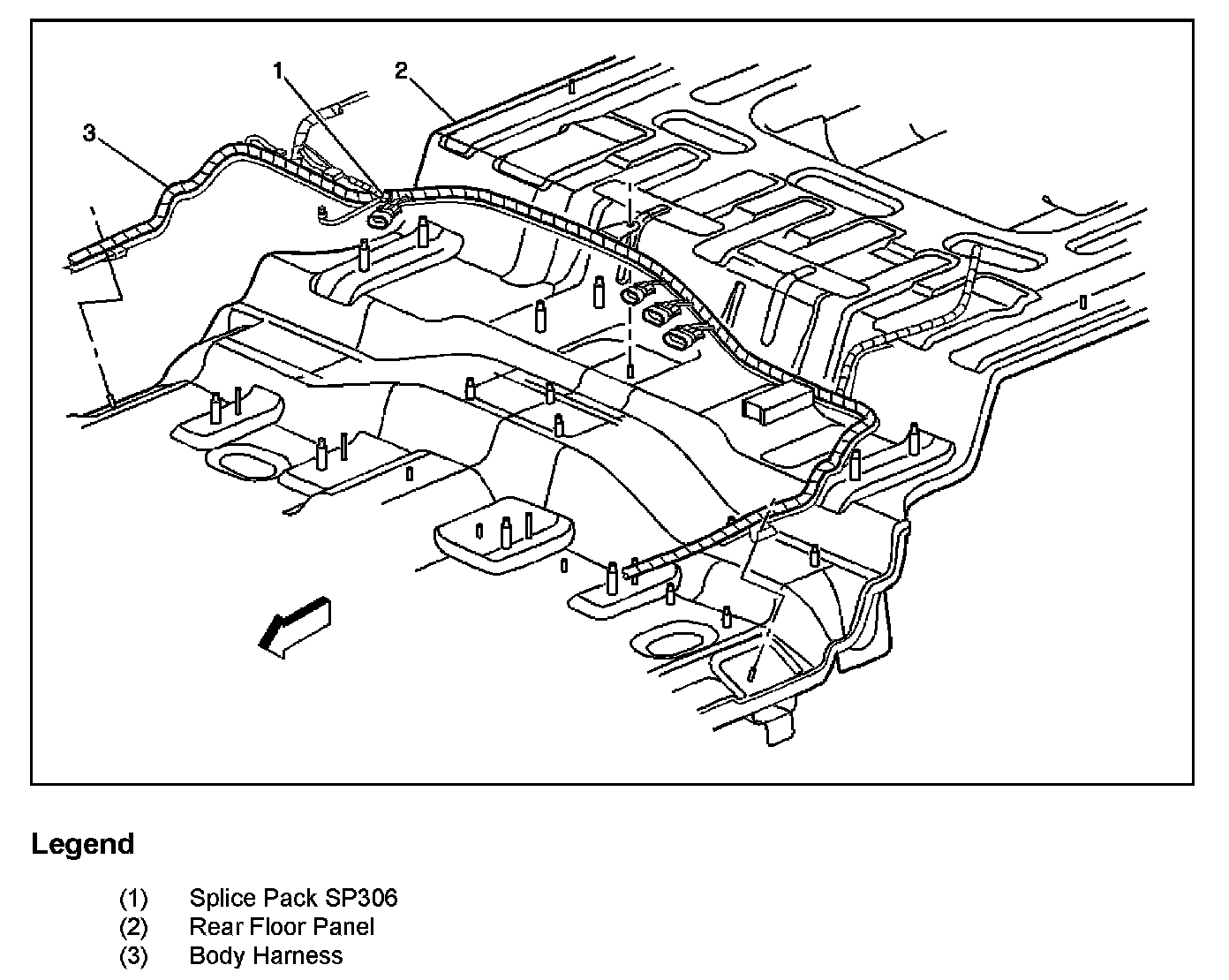

Data Link Connector (DLC) Splice Pack SP306:
