Computers and Control Systems: Locations

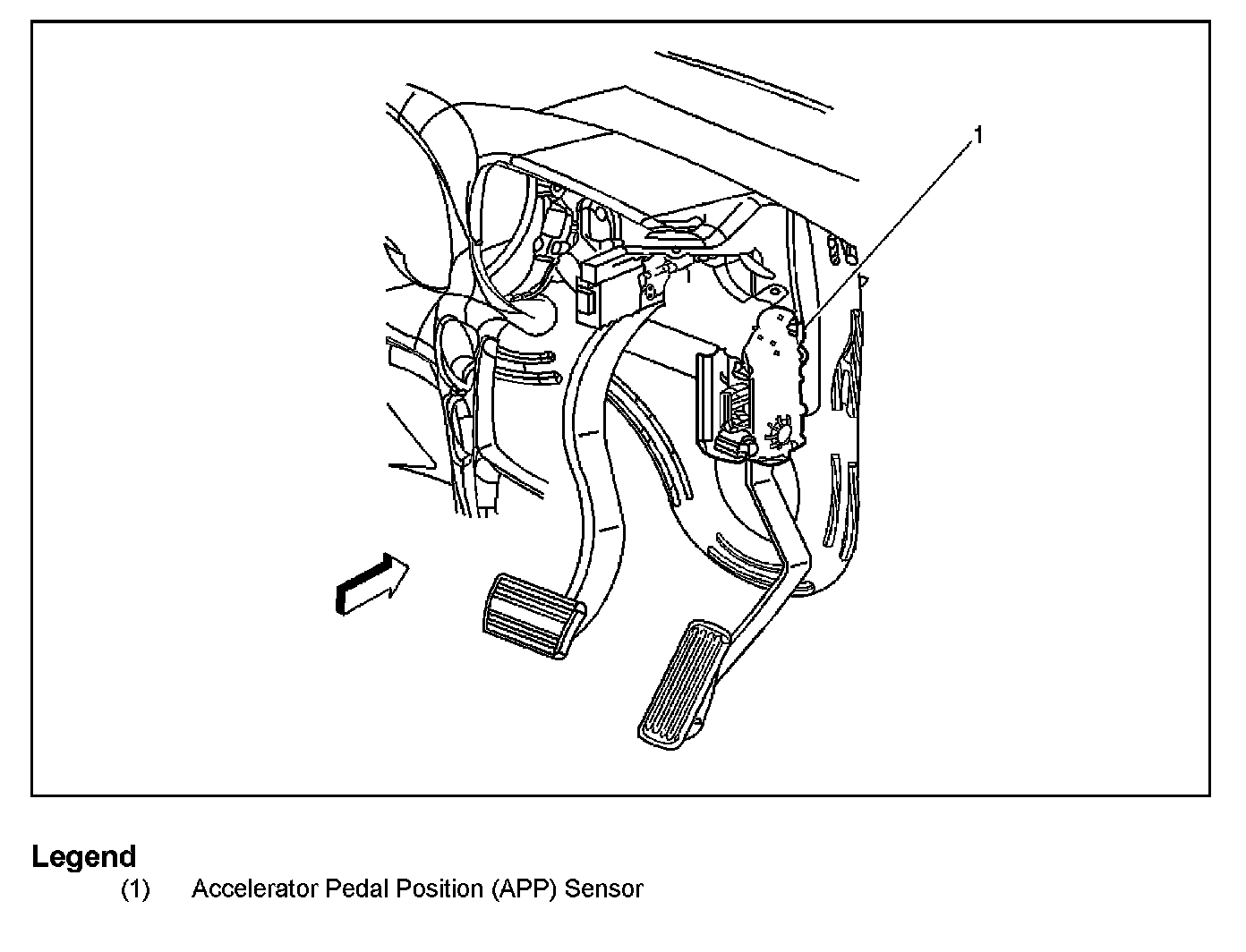

Accelerator:

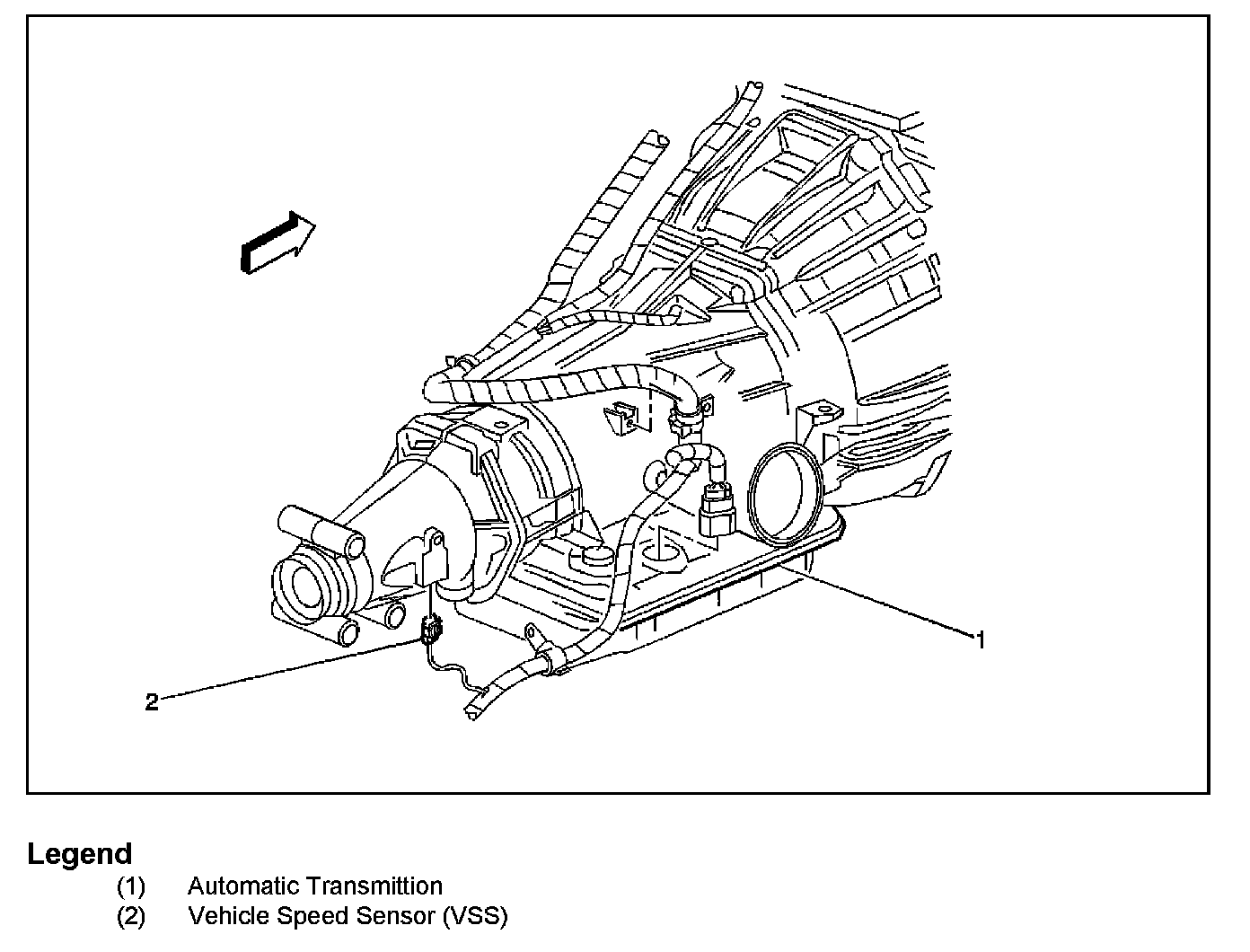

Automatic Transmission:

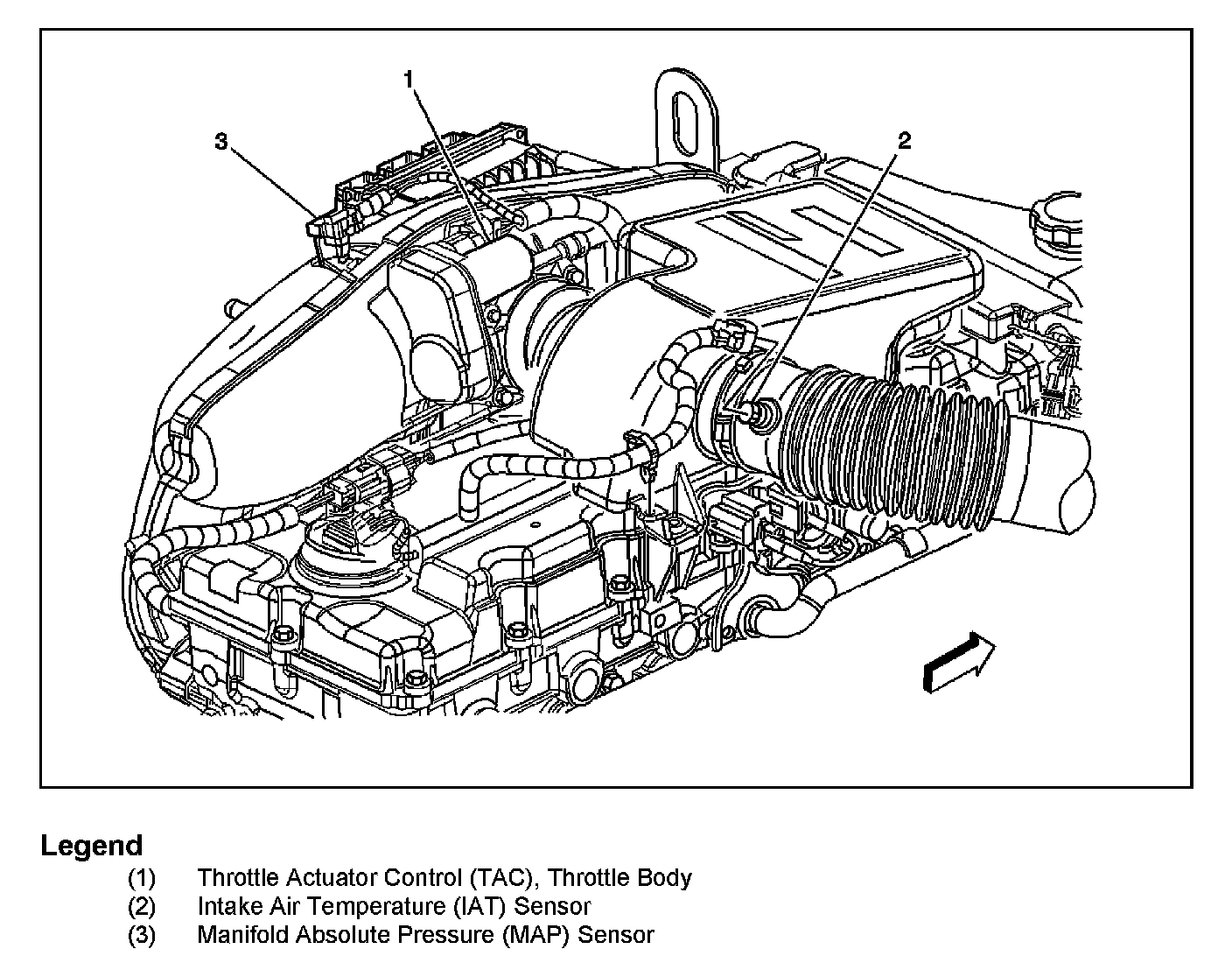

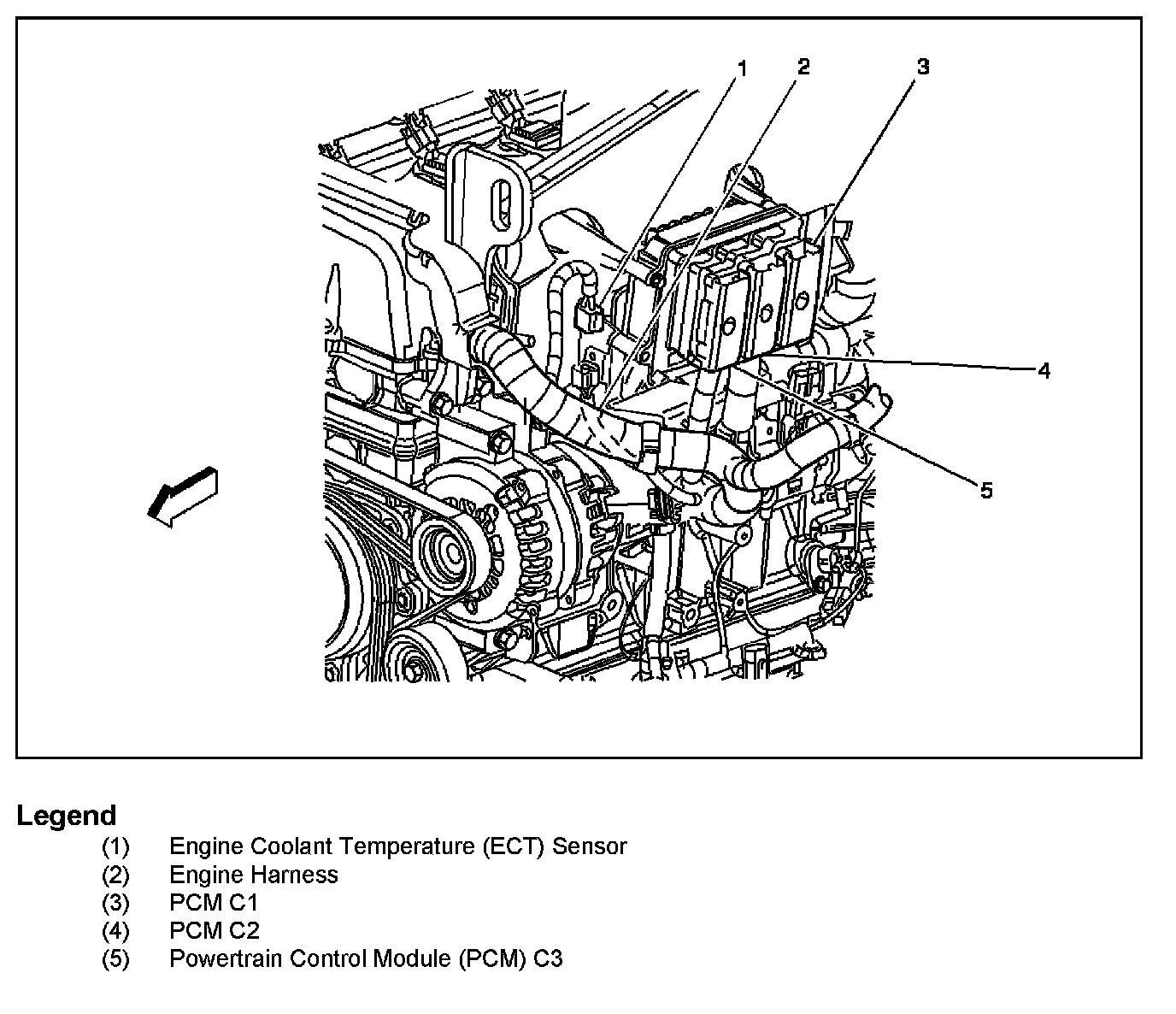

Engine:

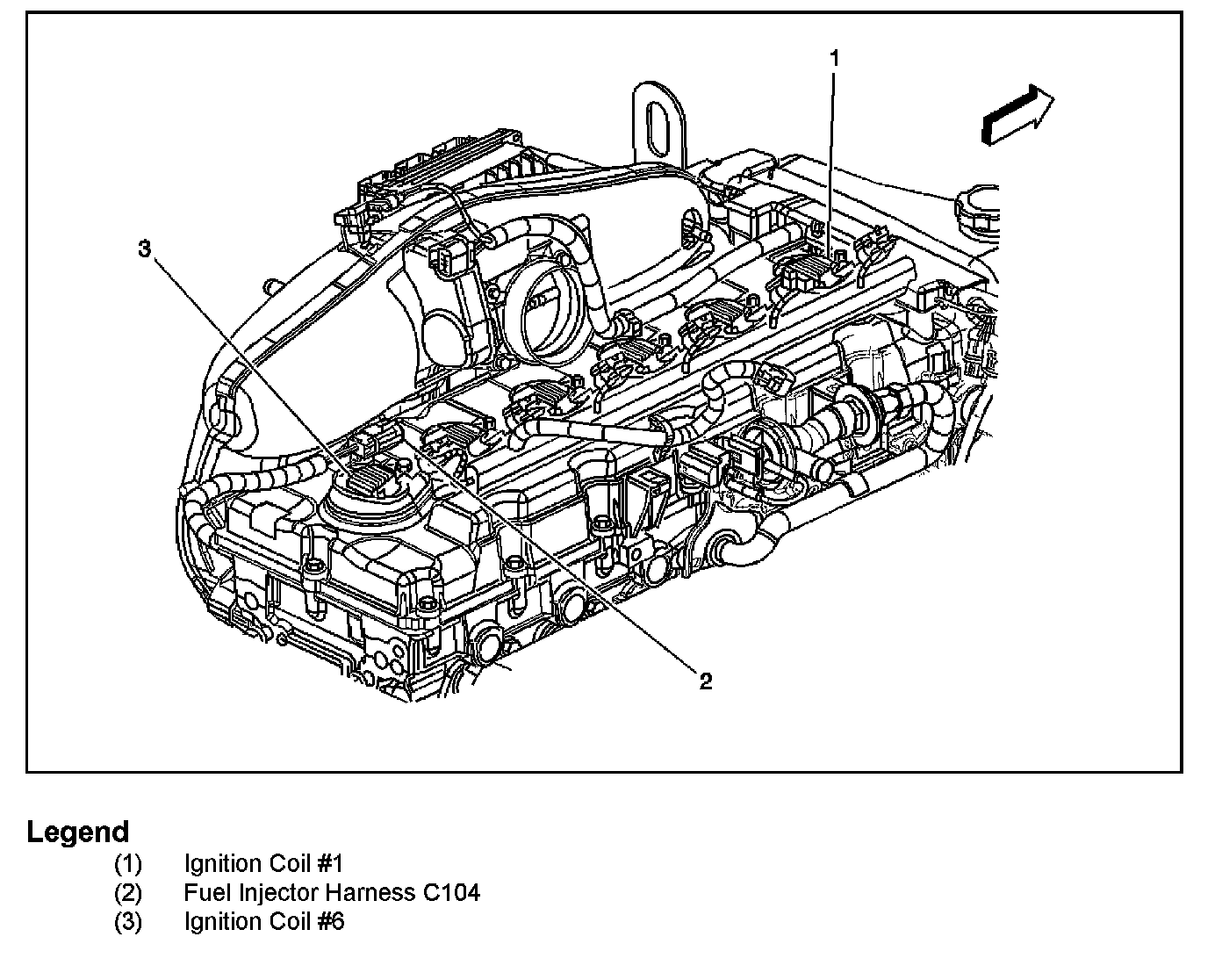

Engine With Air Duct Removed:

Engine, Left Front:

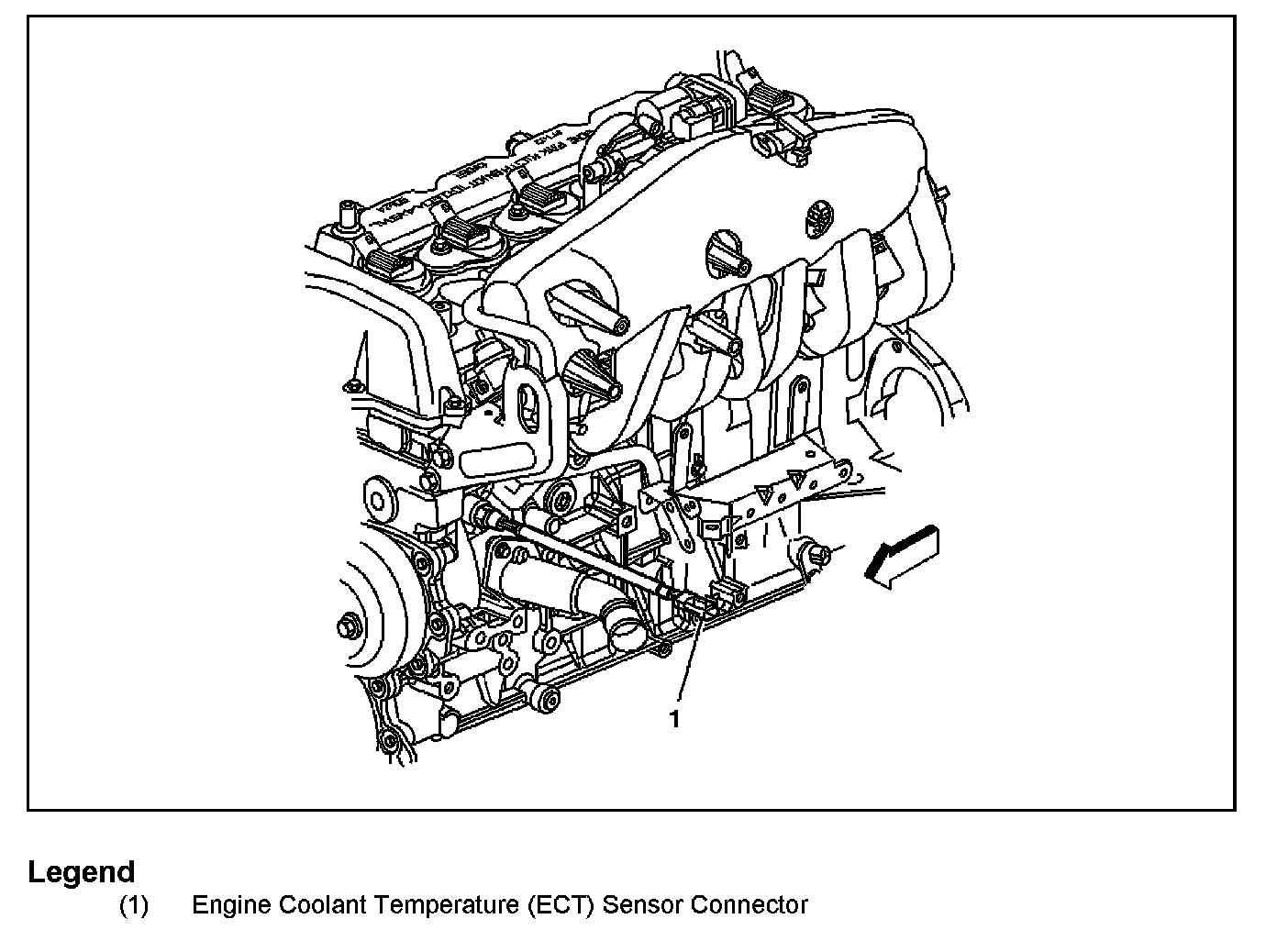

Engine, Left Side:

Engine, Left Side:

Engine, Right Front:

Engine, Right Side:

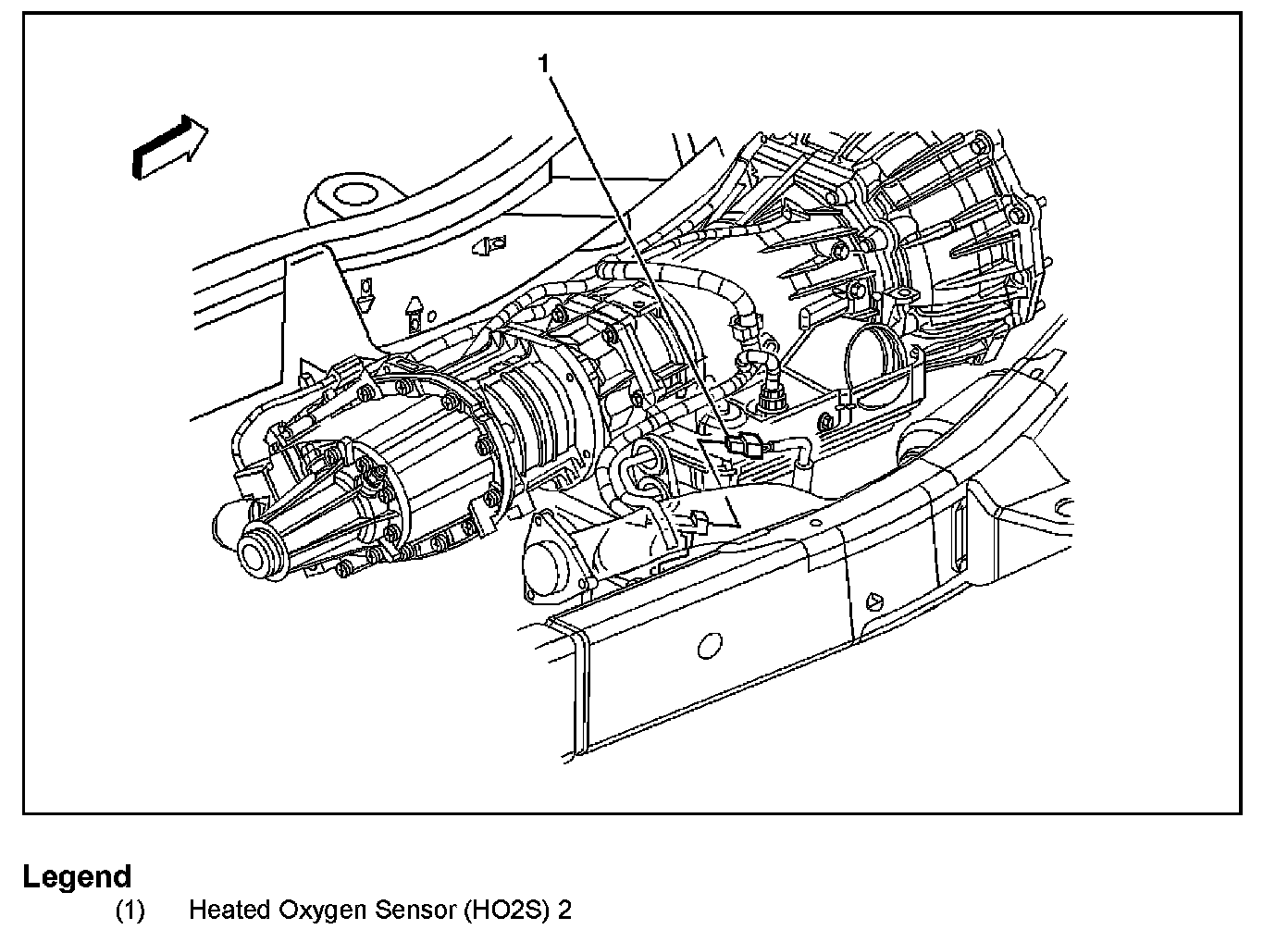

Exhaust Pipe:

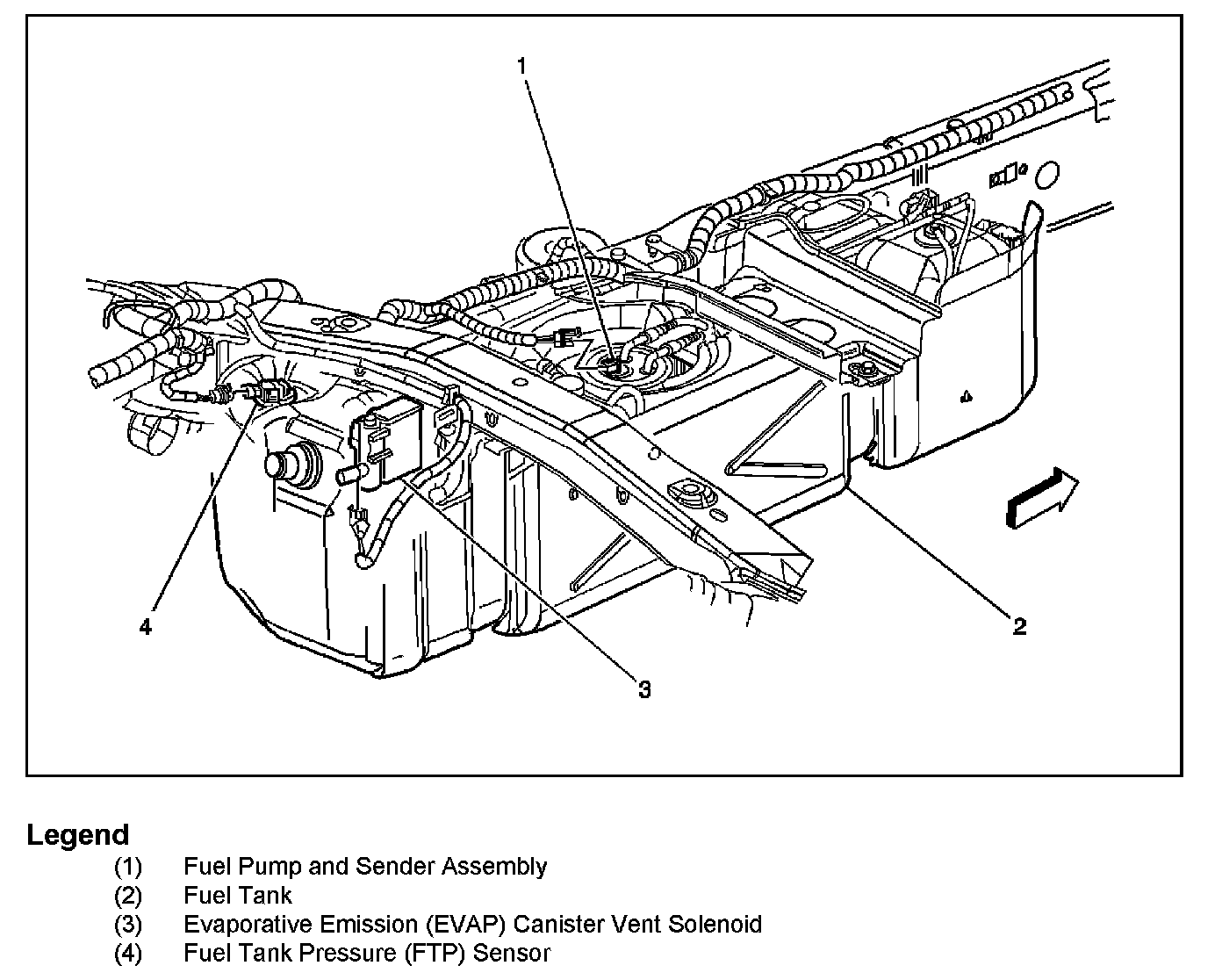

Fuel Tank:
