Transmission Position Sensor/Switch: Locations

Automatic Transmission Electronic Component Views

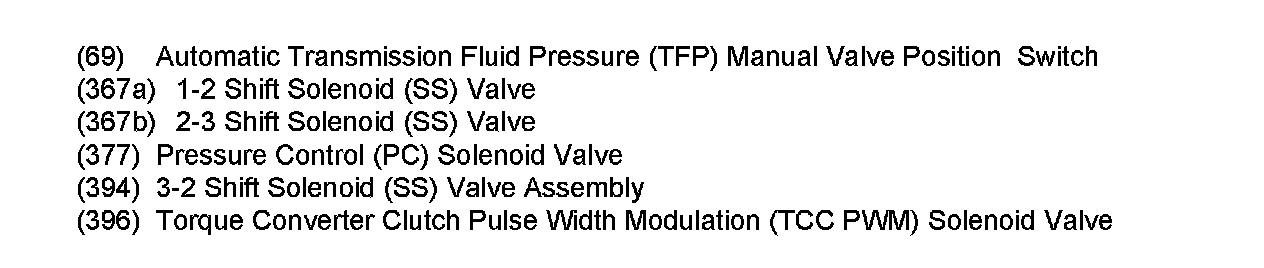

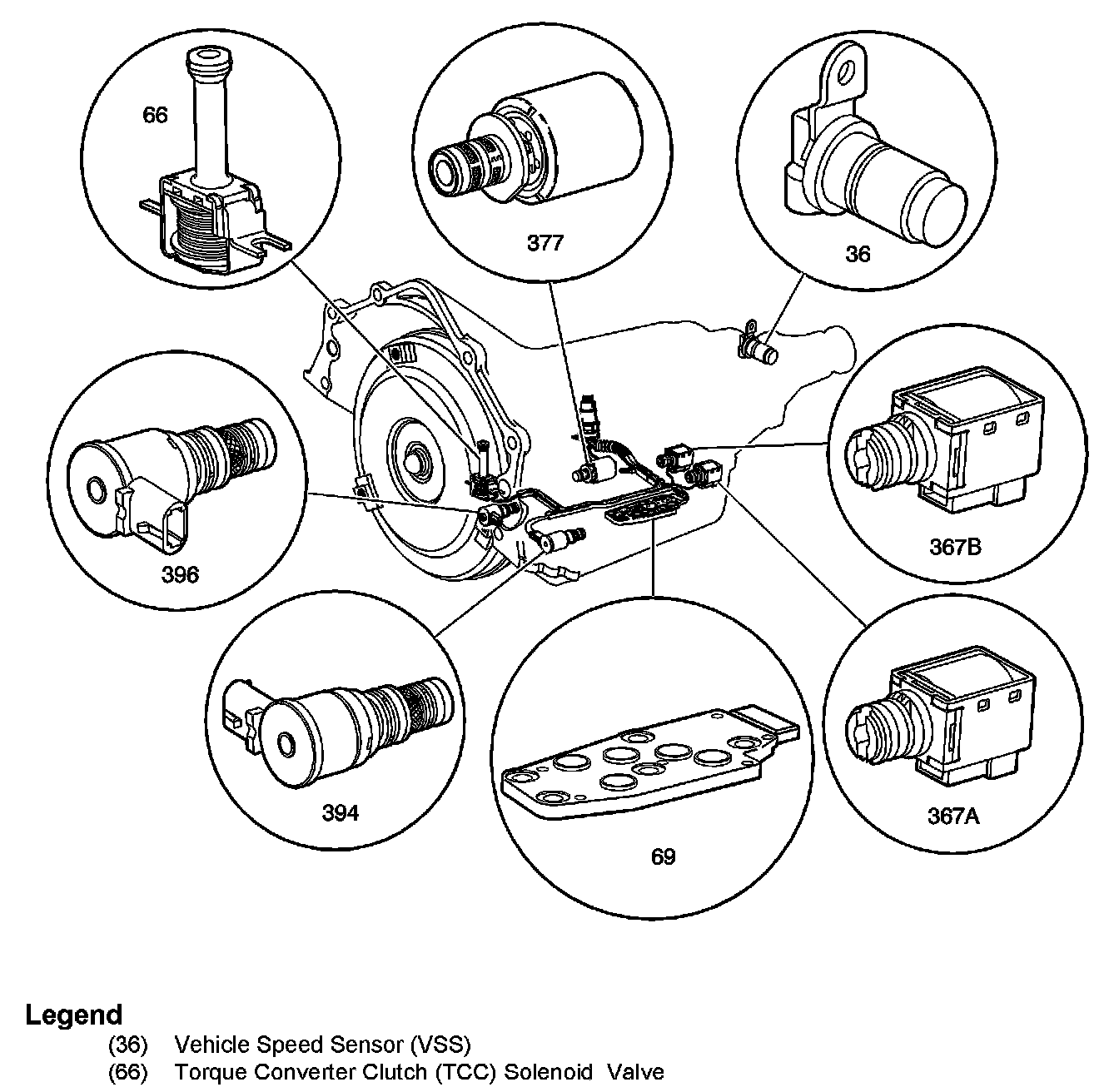

Electronic Components:

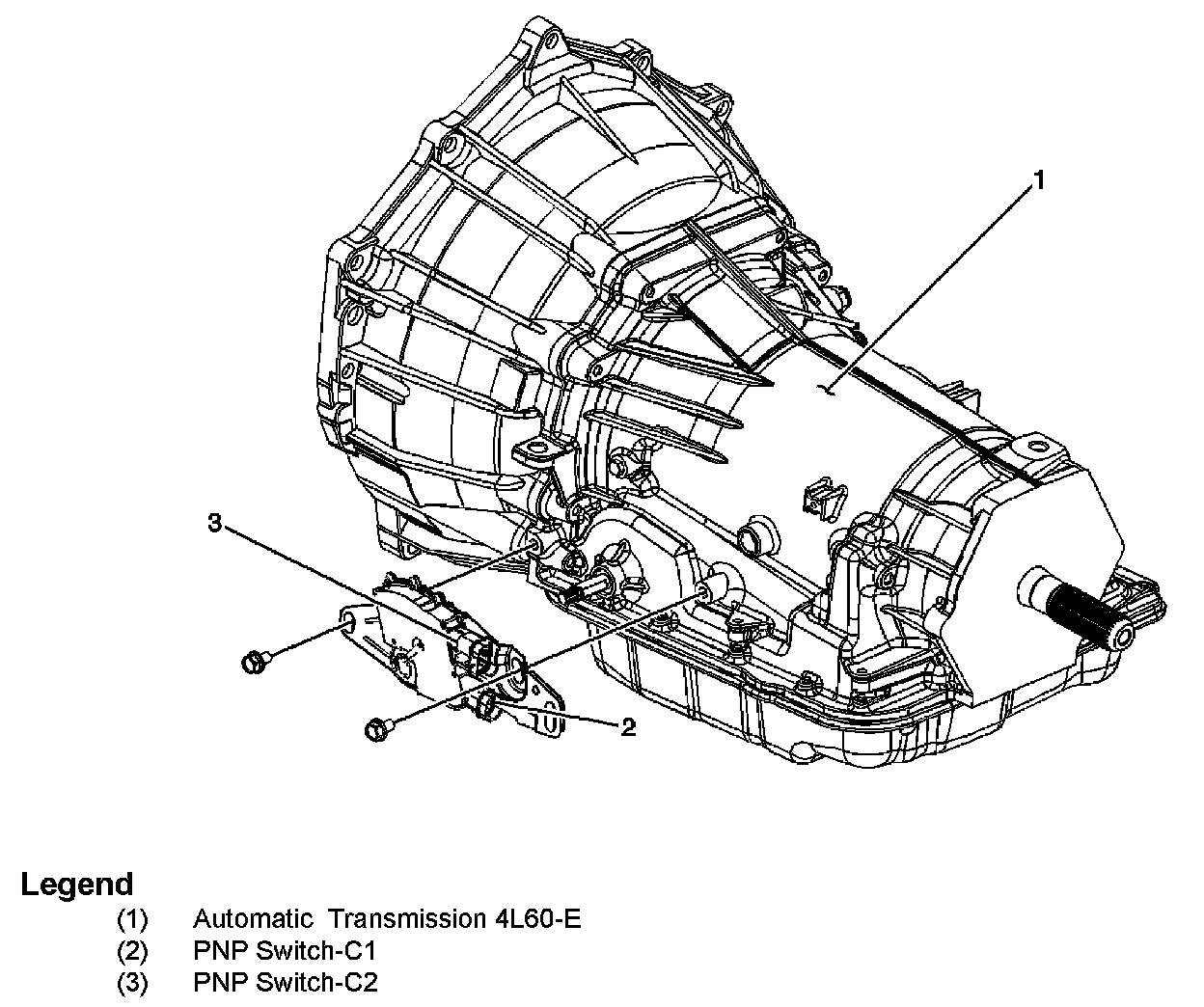

Park Neutral Position (PNP) Switch:

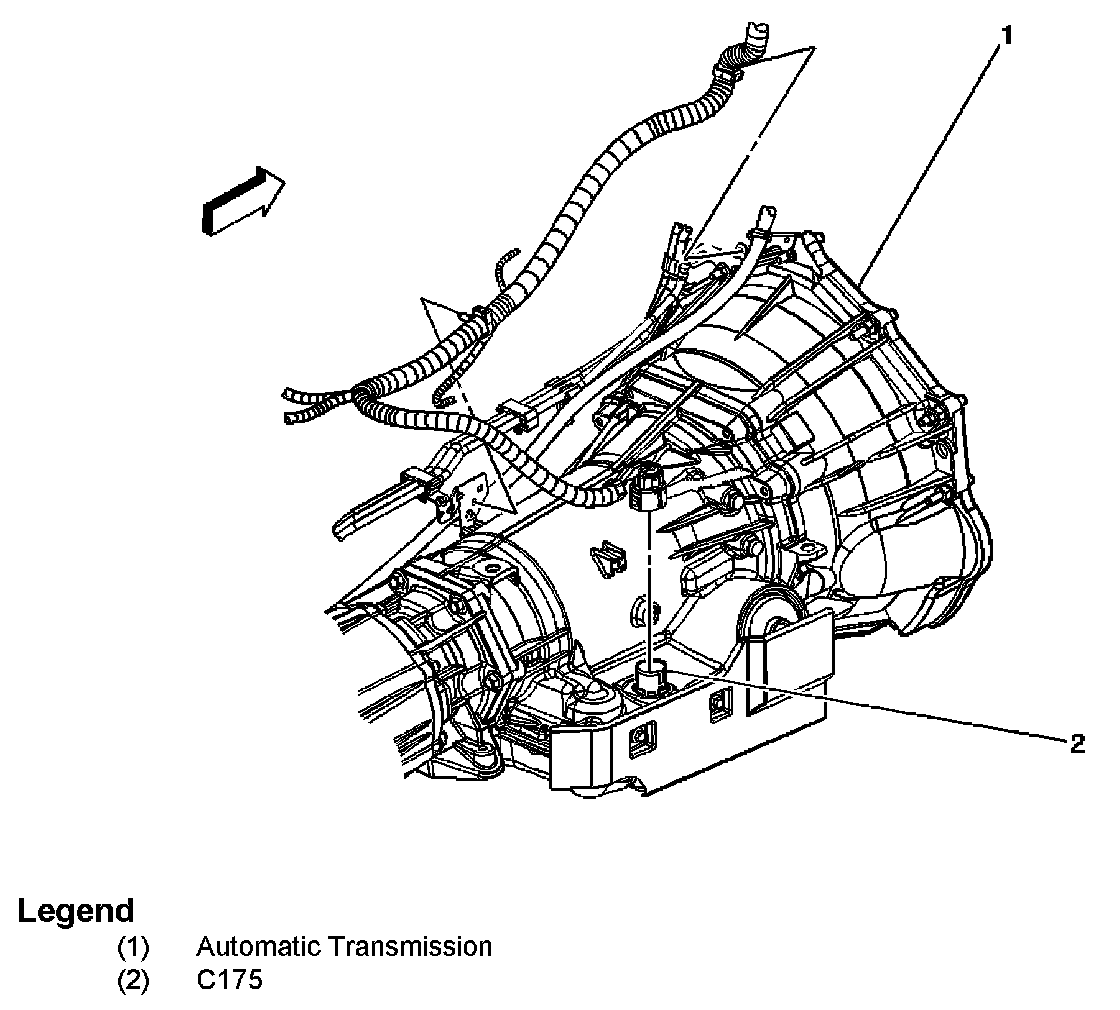

C175:

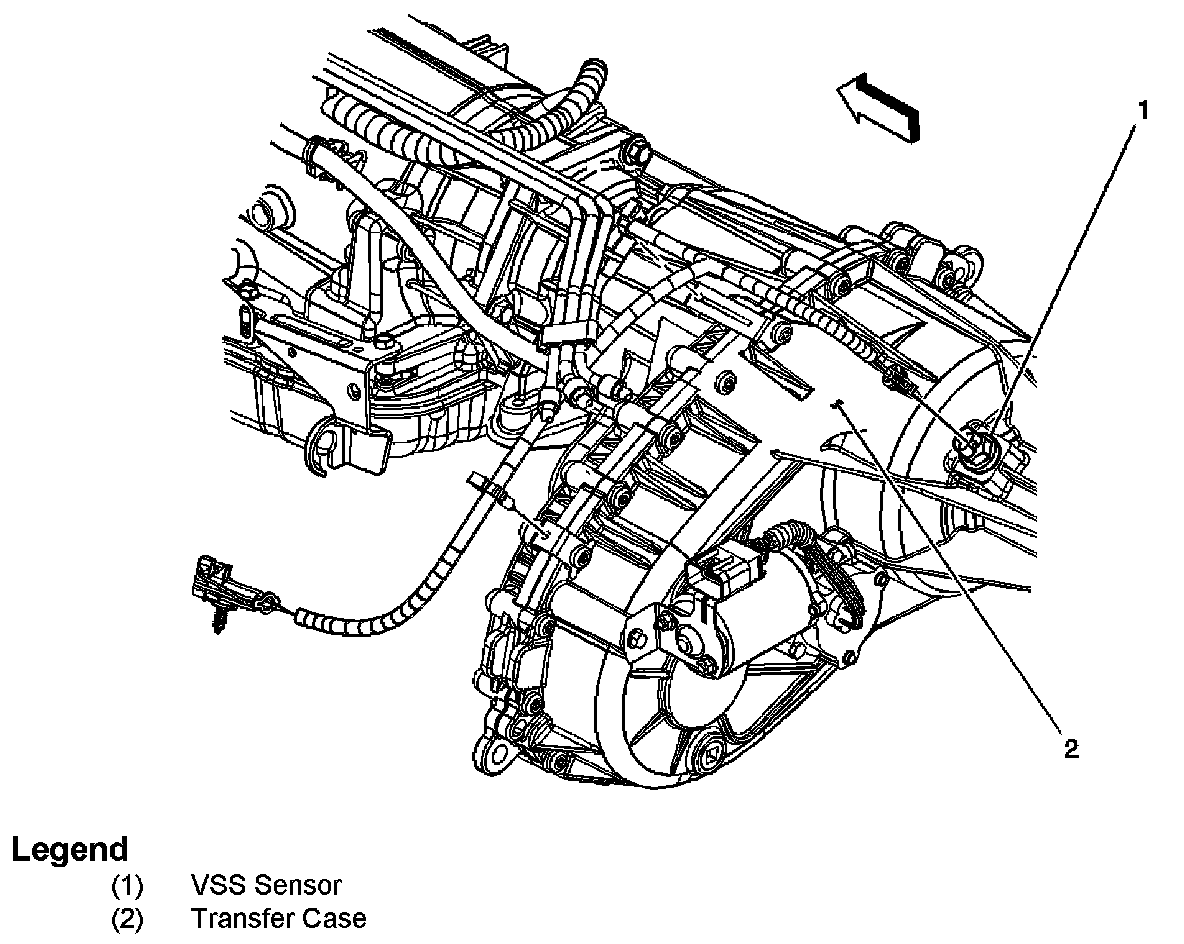

Vehicle Speed Sensor (VSS):
