Engine Mechanical Specifications

Engine Mechanical Specifications

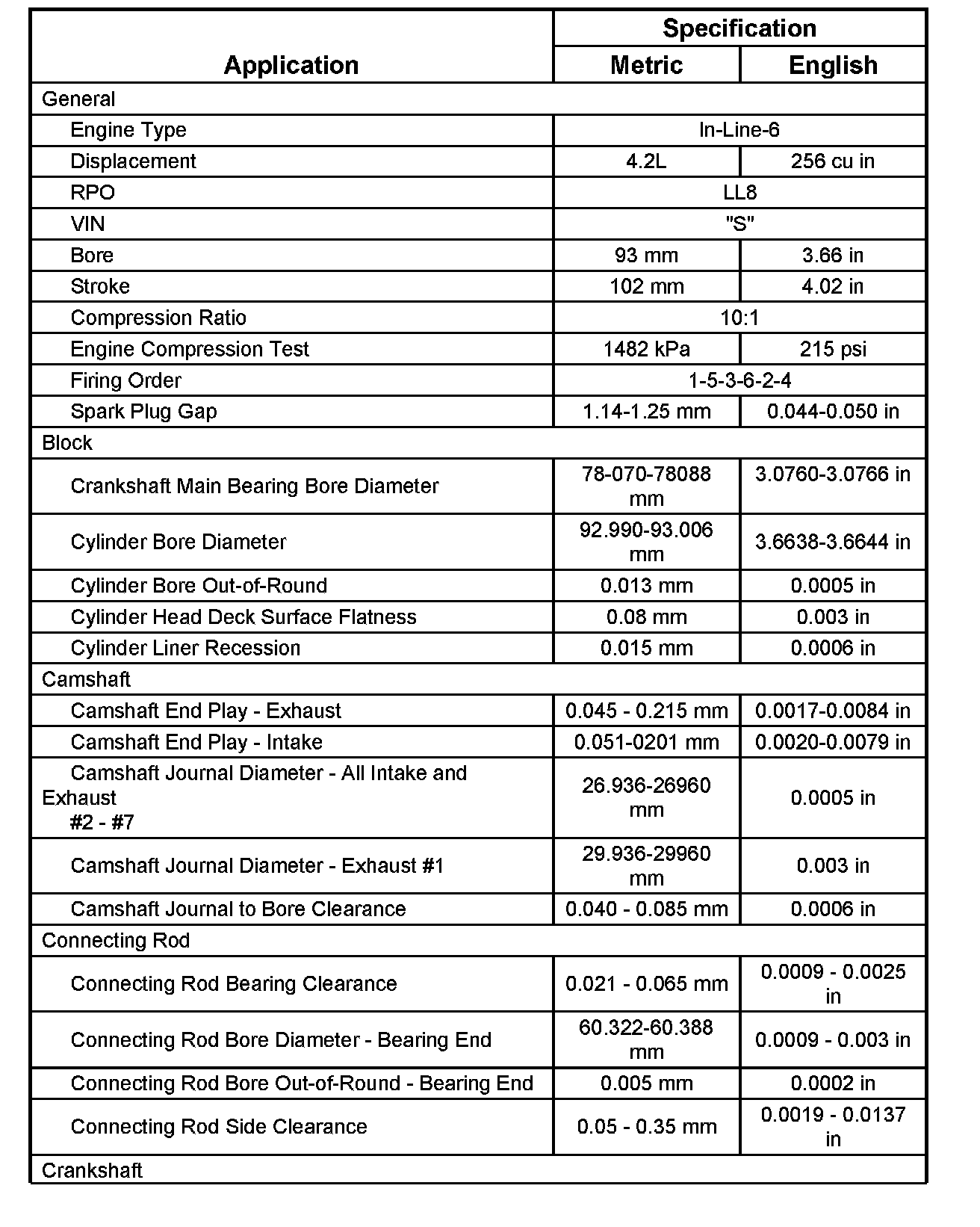

Engine Mechanical Specifications (1 Of 3):

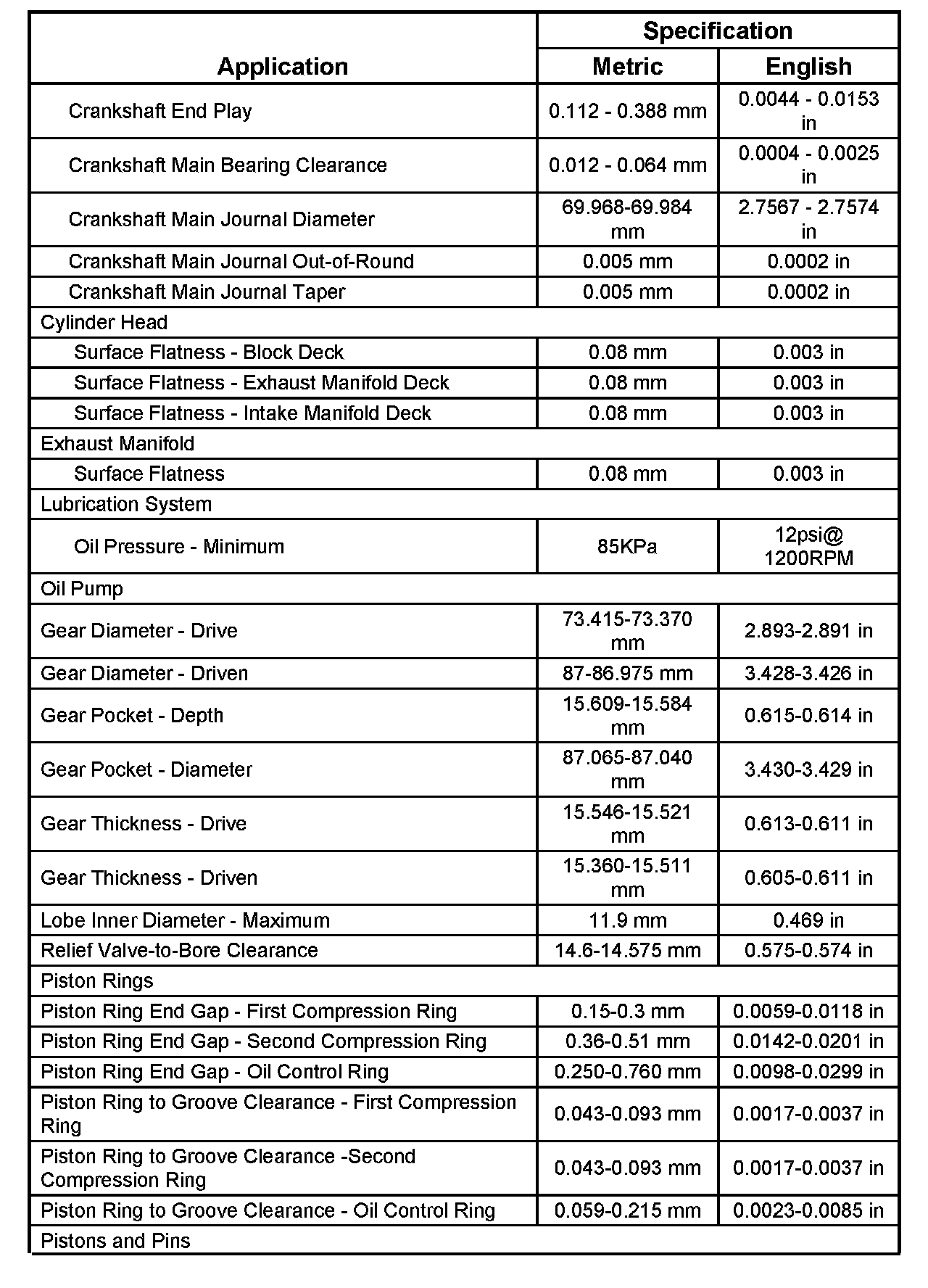

Engine Mechanical Specifications (2 Of 3):

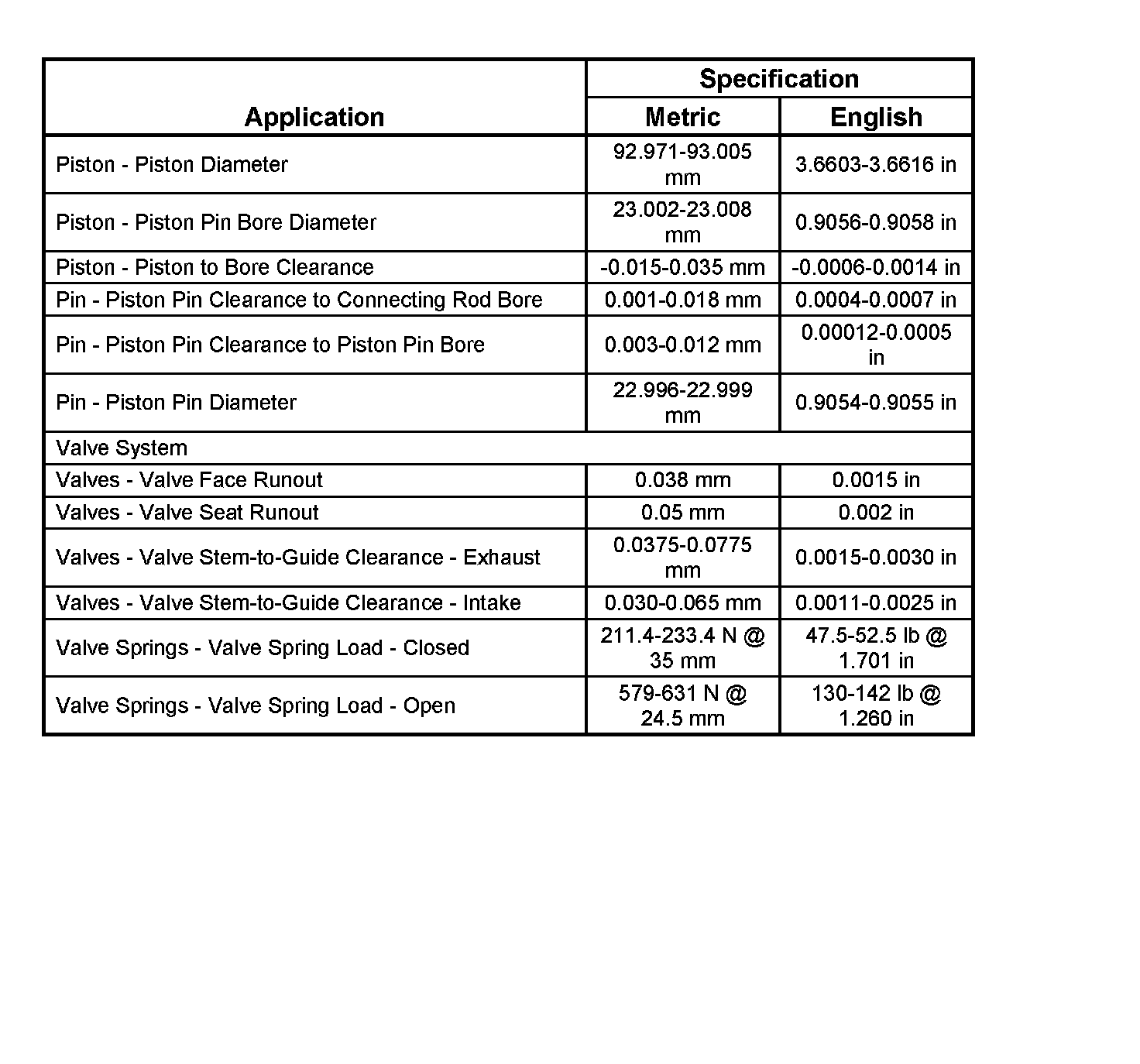

Engine Mechanical Specifications (3 Of 3):
