Engine Block - Bottom View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

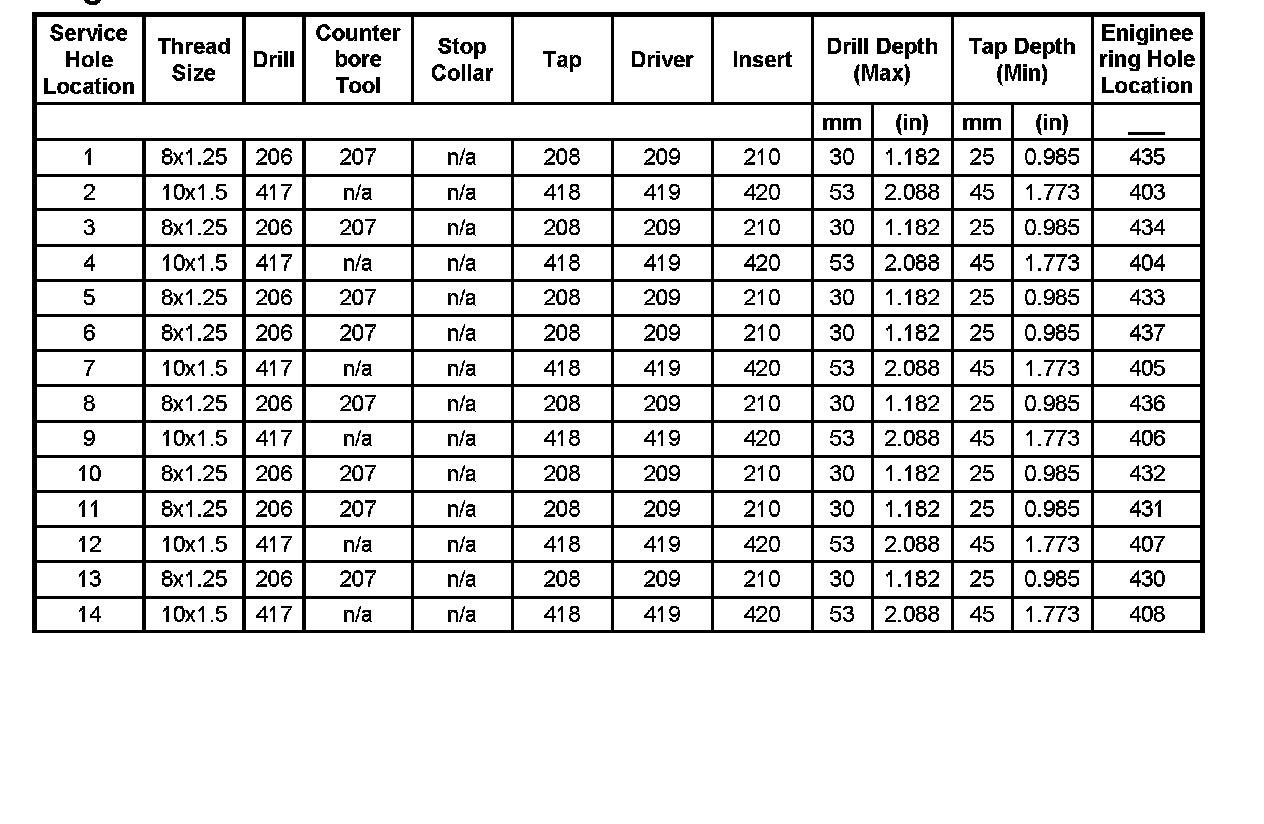

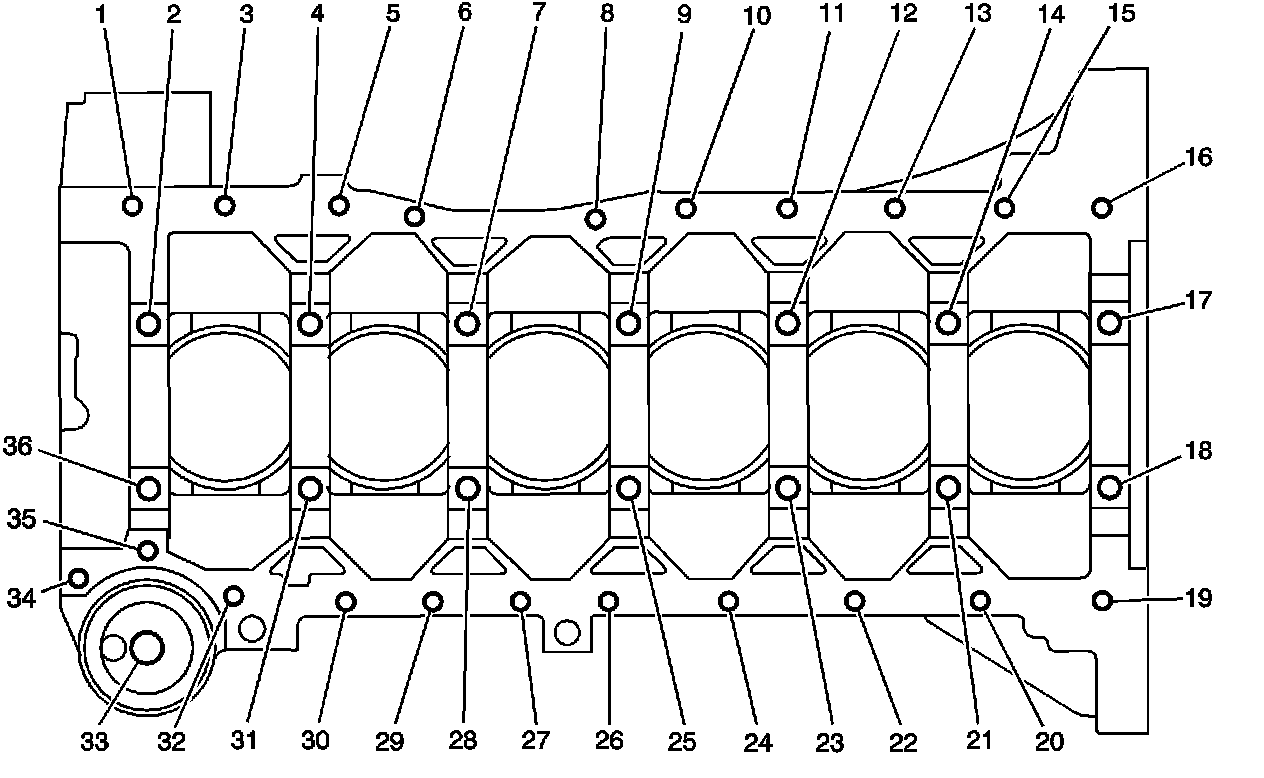

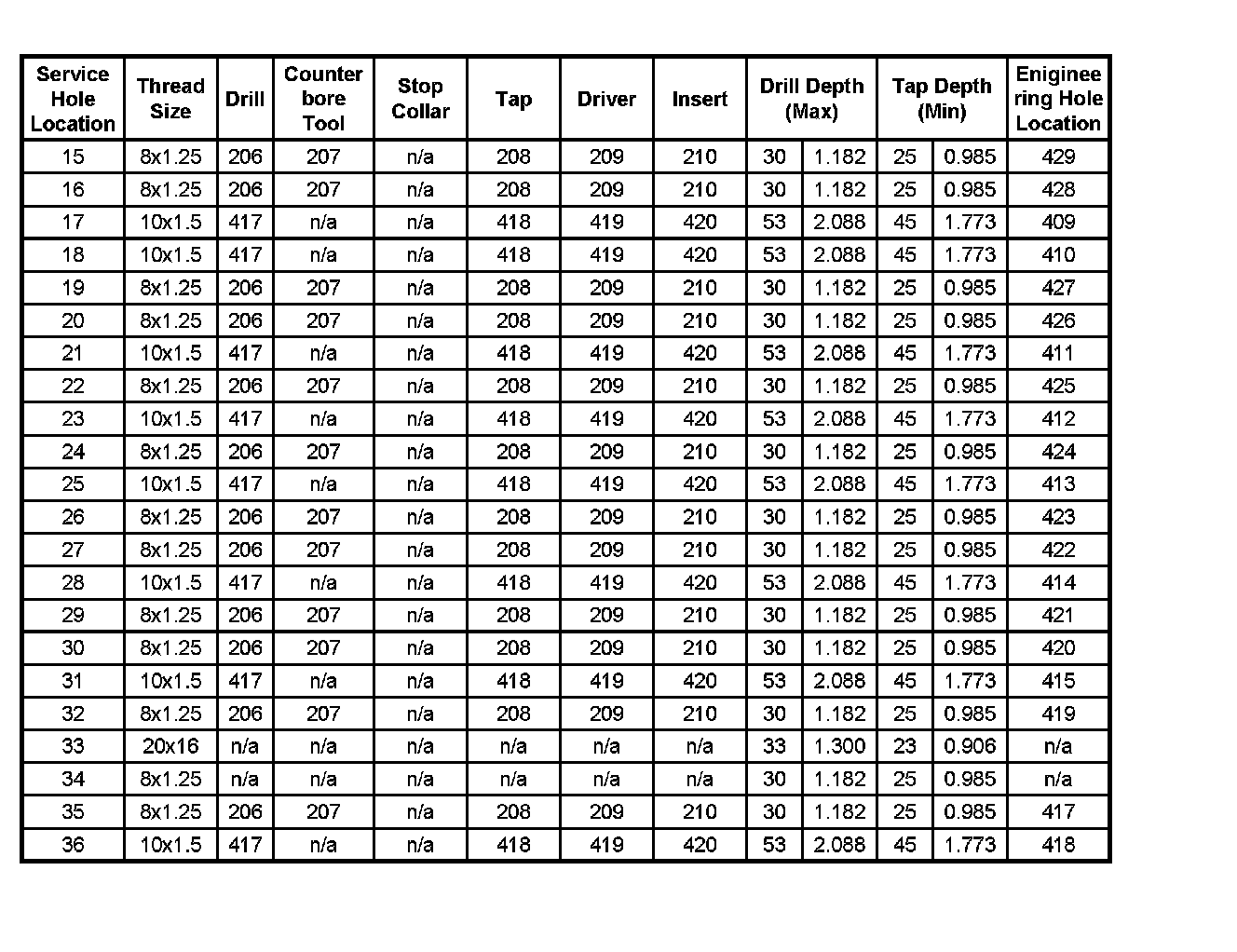

Engine Block - Bottom View
Engine Block - Bottom View
